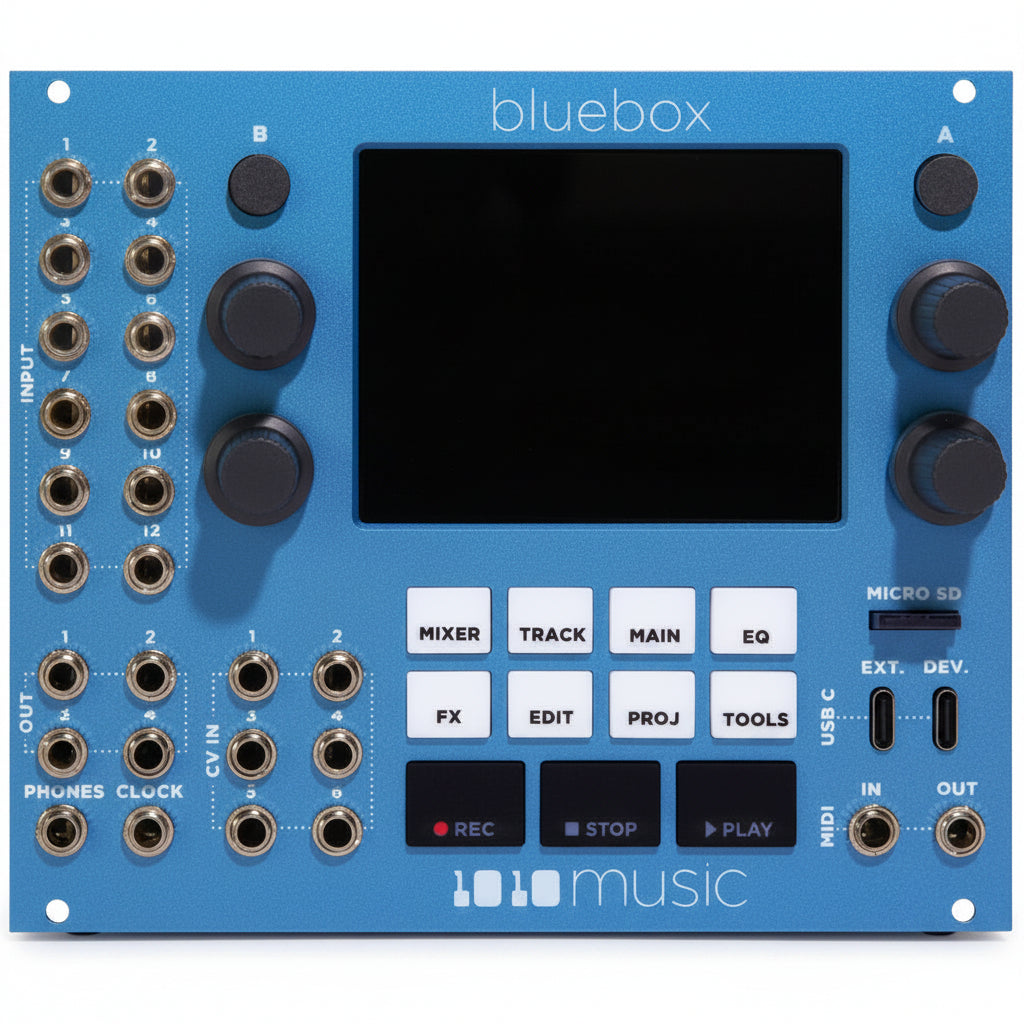

1010music Bluebox Compact Digital Mixer and Recorder

1010music Bluebox Compact Digital Mixer and Recorder

The 1010music Bluebox Compact Digital Mixer and Recorder is a portable 12-track mixing and multitrack recording solution for electronic music hardware. It routes six stereo sources as 12 mono tracks, six stereo tracks, or mixed configurations while recording 24-bit, 48kHz WAV files directly to a microSD card.

Bluebox gives synthesizer, sampler, drum machine, and Eurorack users a compact digital mixer for computer-free production and live performance. Independent output submixes support monitoring, external processing, and flexible stage routing. A touchscreen, physical encoders, navigation keys, and transport controls provide fast access to levels, EQ, effects, recording, and playback.

Each track includes four-band equalization, while reverb, delay, and global compression help shape and control the finished mix. Bluebox accepts standard line-level and Eurorack-level signals, synchronizes with external MIDI equipment, and recalls complete project settings. Its metal enclosure, USB power options, and compact footprint suit desktop studios, portable rigs, and professional hardware-based workflows.

Key Features

• Flexible 12-Track Mixing: Configure six stereo inputs as 12 mono tracks, six stereo tracks, or a combination of both formats.
• Multitrack microSD Recording: Capture individual tracks or the main stereo mix as 24-bit, 48kHz WAV files.
• Independent Output Routing: Send tracks to the main mix, an assignable secondary submix, or a dedicated headphone submix.
• Integrated Signal Processing: Apply four-band EQ to each track and enhance the mix with reverb, delay, and global compression.
• Hardware-Focused Interface: Control sessions through a 3.5-inch touchscreen, four knobs, eight navigation buttons, and three transport buttons.
• Line and Eurorack Compatibility: Connect consumer, professional, and modular equipment with support for signals up to ±5V.
• MIDI Synchronization and Control: Use TRS MIDI or USB MIDI to synchronize clocks, control parameters, and integrate external hardware.
• Portable Metal Construction: Operate from an AC outlet or compatible USB power bank in a durable, compact enclosure.

Technical Specifications

General

• Brand: 1010music
• Model: Bluebox
• Manufacturer Part Number: 202
• Product Type: Compact Digital Mixer and Recorder
• Color: Blue
• Enclosure: Metal
• Country of Origin: China

Mixer and Track Configuration

• Maximum Track Count: 12 mono tracks
• Maximum Stereo Track Count: 6 stereo tracks
• Track Configuration: Mono, stereo, or combined mono and stereo arrangements
• Track Equalization: Four-band EQ per track
• Project Recall: Stores track, output, EQ, and effects settings

Recording and Playback

• Recording Medium: microSD card
• Recording Format: WAV
• Sample Rate: 48kHz
• Bit Depth: 24-bit
• Recording Modes: Individual multitrack recording or main stereo mix recording
• Simultaneous Operation: Plays previously recorded tracks while recording new tracks
• Firmware Updates: Loaded through the microSD card

Audio Inputs and Outputs

• Audio Inputs: 6 stereo 3.5mm TRS inputs
• Audio Outputs: 3 stereo 3.5mm TRS outputs
• Output 1: Main stereo mix
• Output 2: Assignable stereo output with dedicated pre- or post-fader submixer
• Output 3: Headphone output with dedicated pre- or post-fader submixer
• Headphone Monitoring: Dedicated cue mix or main-mix monitoring
• Supported Signal Levels: Standard line level and Eurorack levels up to ±5V

Effects

• Track Effects: Reverb and delay
• Master Processing: Global compressor
• Delay Synchronization: Internal tempo or external MIDI clock

Controls and Display

• Display: 3.5-inch touchscreen
• Rotary Controls: 4 knobs
• Navigation Controls: 8 buttons
• Transport Controls: 3 buttons

MIDI and USB

• MIDI Input: 3.5mm TRS
• MIDI Output: 3.5mm TRS
• MIDI Adapter Standard: Type B
• USB MIDI Control: Supported through USB-A input
• External Clock Synchronization: MIDI input and output

Power and Physical Specifications

• Power Requirement: 2A USB power source
• Portable Power Compatibility: Compatible USB power bank
• Dimensions (L x W x H): 5.5" x 5" x 2"
• Weight: 1 lb

What's In the Box

• 1010music Bluebox Digital Recording Mixer
• microSD Card with Firmware and Preloaded Project Files
• USB Power Cable
• AC Power Adapter
• Three International Power Adapters
• Two Male 3.5mm TRS to Female 5-Pin DIN MIDI Type B Adapters
• USB-B Power and Data Splitter Cable
• Quick Start Guide
