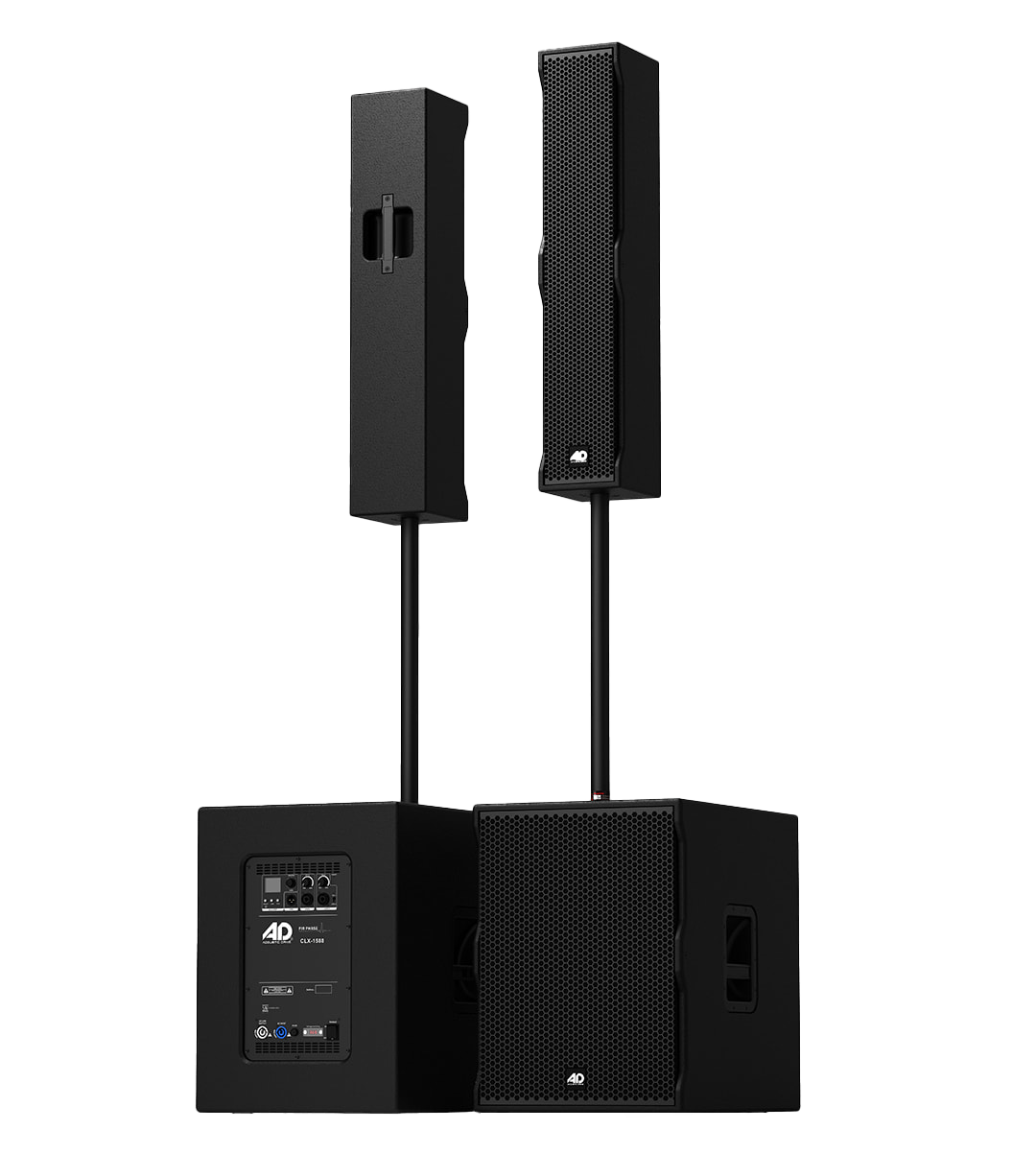

Acoustic Drive CLX3000 3000W Powered Column Array with 15-Inch Subwoofer

The Acoustic Drive CLX3000 is a two-part powered column system built for mobile DJs, houses of worship and small-to-medium live events that need full-range reinforcement without a truck full of boxes. A 15-inch powered subwoofer carries the low end while a slim two-way column handles vocals and program material, and the pair couple through a dual-purpose support rod that carries the signal internally so there is no exposed speaker cable between the two halves.

Onboard DSP does the heavy lifting. A 2-in/2-out engine with FIR-based phase alignment time-aligns the column against the subwoofer, and four factory presets - MUSIC, LIVE, SPEECH and DJ - cover the common use cases, with room for up to ten stored configurations when a venue needs its own tuning. Class D amplification keeps the weight and heat down across a combined 3000 watts of peak program power.

Connectivity is deliberately simple for fast setup. Two balanced XLR inputs accept line-level sources, with Line 1 switchable for microphone use and Line 2 available to link a second system for wider coverage. Bluetooth 5.0 handles stereo playback and supports L/R pairing between two CLX3000 systems for a true stereo spread from a phone or laptop.

Features

• Two-part powered column system: 15-inch subwoofer plus slim two-way column
• 3000 W peak program power, Class D amplification
• 2-in / 2-out DSP with FIR phase alignment between column and subwoofer
• Four factory presets - MUSIC, LIVE, SPEECH, DJ - plus up to 10 stored configurations
• Bluetooth 5.0 with stereo L/R pairing across two systems
• Two balanced XLR inputs; Line 1 microphone-capable, Line 2 linkable
• Dual-purpose support rod with concealed internal signal path
• 60 degrees horizontal by 60 degrees vertical coverage

Technical Specifications

• System type: powered column array with separate subwoofer
• Subwoofer: 15-inch LF driver, 75 mm voice coil, 190 mm ferrite magnet
• Subwoofer frequency range: 35 Hz to 250 Hz
• Subwoofer max SPL: 125 dB
• Subwoofer power: 1600 W peak program
• Column: two-way active, 4-inch HF driver (34 mm voice coil, 90 mm ferrite) plus four 5-inch LF drivers (25 mm voice coil, 90 mm ferrite)
• Column frequency range: 65 Hz to 20 kHz
• Column max SPL: 124 dB
• Column power: 1400 W peak program
• Coverage: 60 degrees H x 60 degrees V
• Inputs: 2 x balanced XLR (Line 1 mic-capable, Line 2 system link)
• Wireless: Bluetooth 5.0, stereo
• Amplification: Class D

What's Included

• Acoustic Drive CLX3000 powered subwoofer
• CLX3000 column speaker
• Dual-purpose support rod with internal signal pass-through
• Power cable
