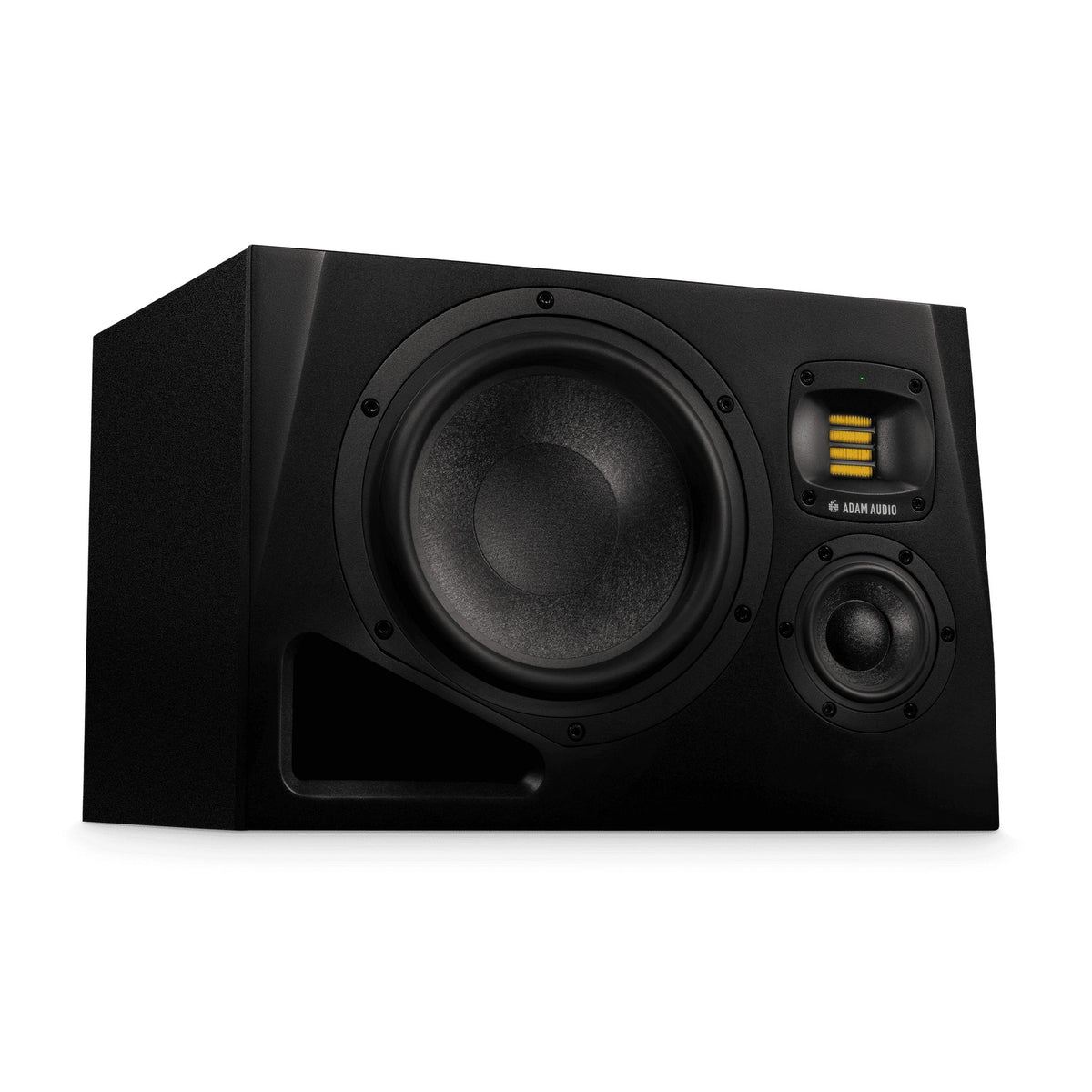

ADAM Audio A8H 8-Inch Three-Way Powered Midfield Studio Monitor

1ADAM Audio A8H 8-Inch Three-Way Powered Midfield Studio Monitor

The A8H is a top-of-the-line, tri-amped midfield monitor designed for critical listening in medium to large studio spaces. Its 8″ Multi-Layer Mineral woofer, dedicated 3.5″ midrange driver, and rotatable X-ART ribbon tweeter deliver rock-solid imaging, deep bass down to 34 Hz, and crystal-clear highs up to 45 kHz.

Onboard DSP and rotatable HPS waveguide technology let you fine-tune crossover points, EQ voicings, and directivity for any room or orientation. With 250 W driving the woofer, 70 W for midrange, and 20 W for the tweeter, the A8H achieves up to 105 dB SPL per speaker without audible distortion.

Available Variations:

• A8H-L (Left-channel version)
• A8H-R (Right-channel version)

Key Features

• Three-Way Design: 8″ woofer + 3.5″ midrange + X-ART ribbon tweeter
• Tri-Amp Power: 250 W (woofer), 70 W (mid), 20 W (tweeter) RMS
• Frequency Response: 34 Hz – 45 kHz (–6 dB)
• Crossover Points: 400 Hz & 3 kHz
• Max SPL: 105 dB @ 1 m
• Rotatable HPS Waveguide: Consistent dispersion in any orientation
• DSP Control: Voicing presets, room EQ, firmware updates via Ethernet/A Control
• Connectivity: Balanced XLR, unbalanced RCA, Ethernet remote port

Technical Specifications

• Dimensions: 9.75″ × 15″ × 13″ (24.8 × 38.1 × 33 cm)
• Weight: 30 lbs (13.6 kg)
• Frequency Response: 34 Hz – 45 kHz (–6 dB)
• Crossover Frequencies: 400 Hz, 3 kHz
• Amplifier Power: 250 W (LF), 70 W (MF), 20 W (HF)
• Maximum SPL: 105 dB per speaker @ 1 m
• THD: < 0.5 % above 80 Hz
• Inputs: XLR (balanced) & RCA (unbalanced)
• Remote Control: RJ45 Ethernet
• Power Consumption: 340 W max (100–240 V, 50/60 Hz)

What's In the Box

• 1x ADAM Audio A8H Monitor (Left or Right version)
• 1x Power Cable
• 1x Quick Start Guide
