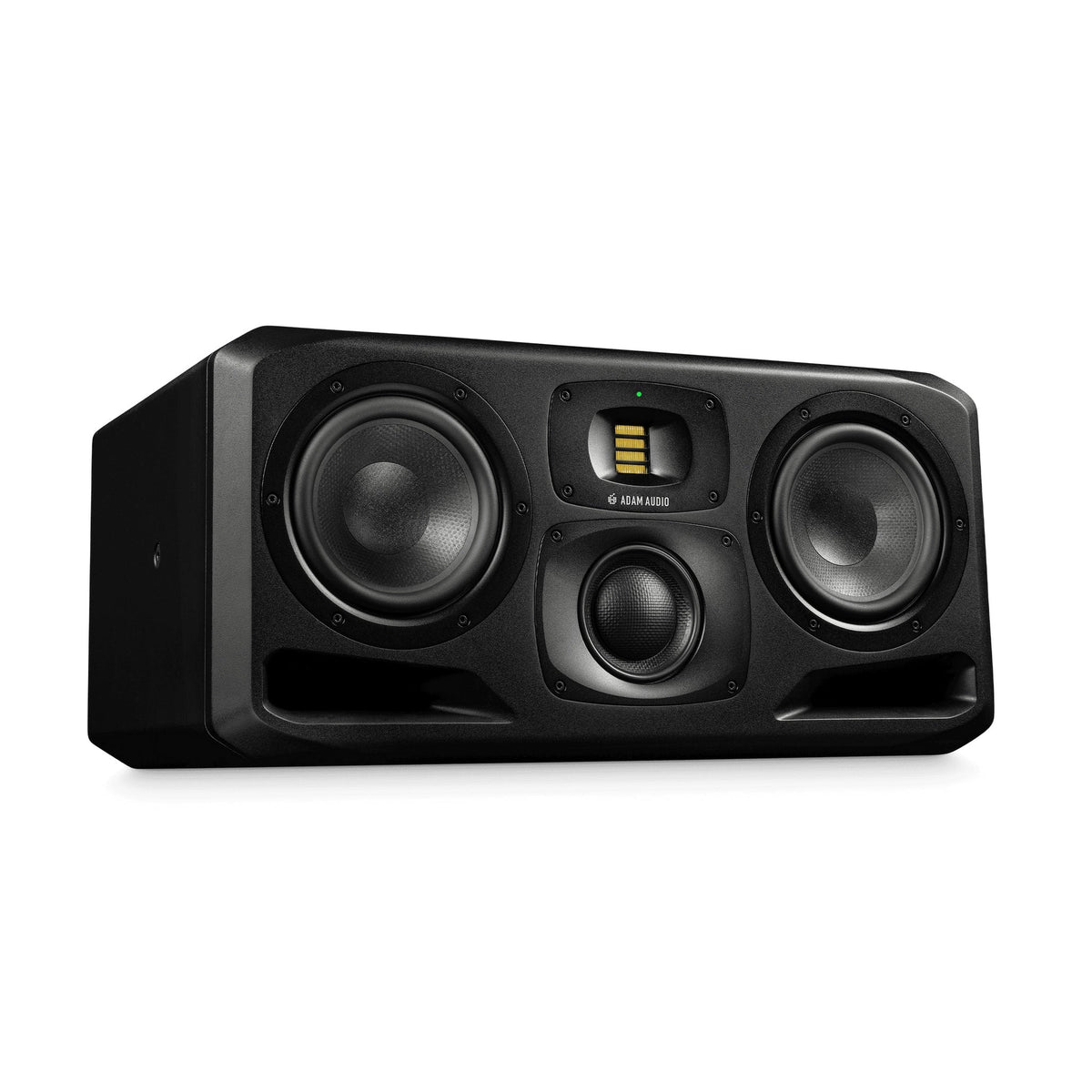

ADAM Audio S3H 7-Inch Three-Way Powered Midfield Studio Monitor

ADAM Audio S3H 7-Inch Three-Way Powered Midfield Studio Monitor

The ADAM Audio S3H sets a new benchmark for midfield monitoring with its three-way design: dual 7″ ELE™ bass drivers, a 4″ midrange driver, and ADAM’s S-ART folded-ribbon tweeter. It delivers rock-solid imaging, deep bass down to 30 Hz, seamless mids, and pristine highs up to 50 kHz—ideal for critical mixing and mastering in medium-sized studios.

Tri-amplified with 2×500 W Class-D amps for the woofers, 300 W for midrange, and 50 W Class A/B for the tweeter, the S3H reaches up to 126 dB SPL per pair without distortion. Built-in DSP offers 6-band parametric EQ, shelving filters, limiter-based driver protection, and user-selectable presets via USB and the S Control software—making room tuning and firmware updates effortless.

Key Features

• 7″ ELE™ Bass Drivers: Dual drivers with Symmetrical Magnet Assembly for deep, dynamic lows down to 30 Hz
• 4″ DCH Midrange Driver: Hybrid cone/dome design for precise, natural mids
• S-ART Ribbon Tweeter: Handcrafted folded-ribbon for extended highs to 50 kHz and wide sweet spot
• Tri-Amp Power: 2×500 W (woofers), 300 W (mid), 50 W (tweeter)
• Built-In DSP: 6-band parametric EQ, shelving filters, limiter, and five user presets
• High SPL Capability: Up to 126 dB per pair at 1 m
• Flexible Inputs: Analog XLR and digital AES3 with +24 dBu max level
• Rigid Cabinet: Front-ported design for controlled bass extension and minimal resonance

Technical Specs

• Dimensions: 11.0″ × 23.0″ × 15.0″ (280 × 585 × 380 mm)
• Weight: 58.6 lbs (26.6 kg)
• Frequency Response: 30 Hz – 50 kHz (–20 dB)
• Crossover Frequencies: 250 Hz & 3 kHz
• Max. SPL: ≥126 dB per pair @ 1 m
• Input Impedance: 48 kΩ
• Power Consumption: 550 W max

In the Box

• 1x ADAM Audio S3H Midfield Monitor (single unit)
• 1x Power Cord
• 1x Quick Start Guide
• 1x Warranty Registration Card
