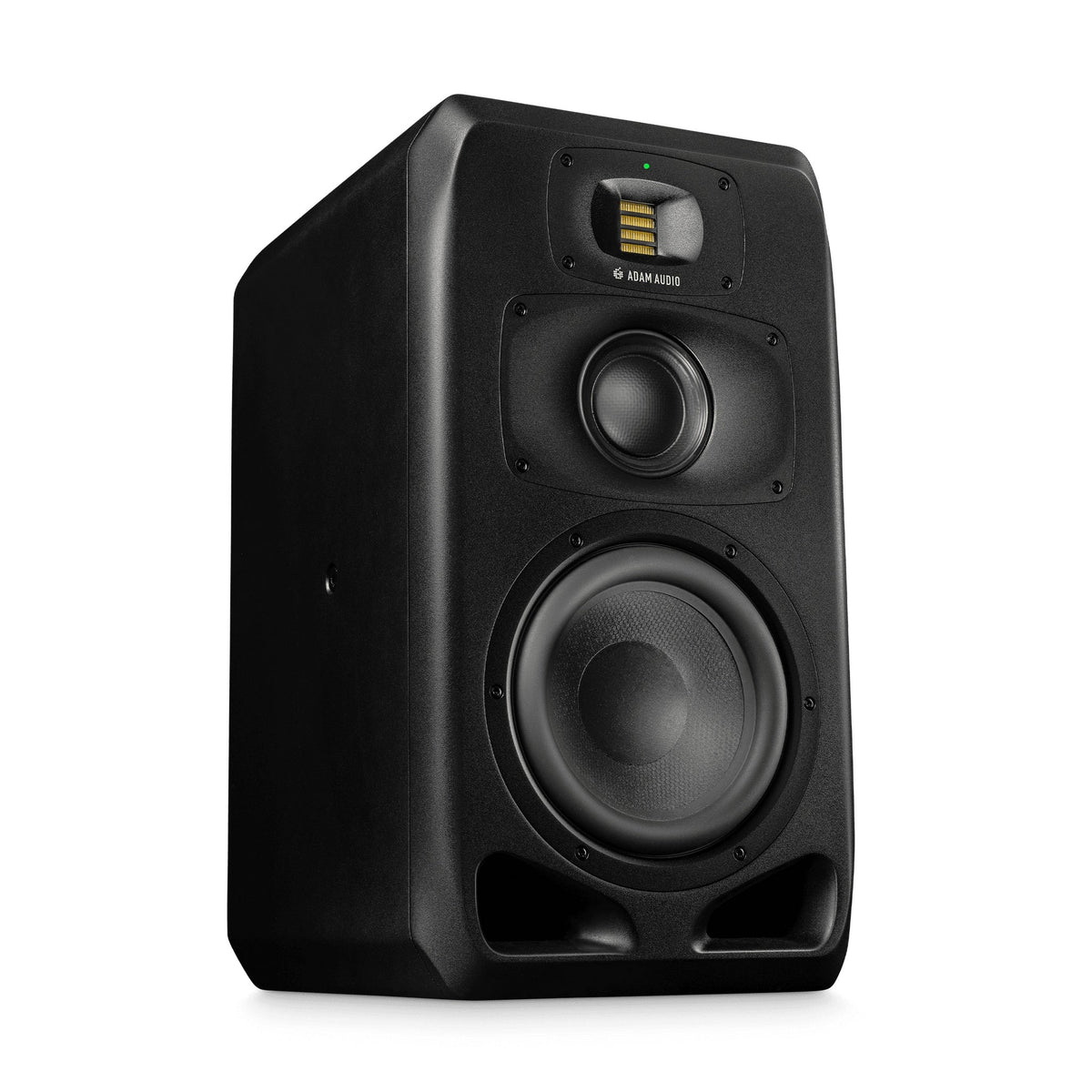

ADAM Audio S3V 9-Inch Three-Way Powered Midfield Studio Monitor

ADAM Audio S3V 9-Inch Three-Way Powered Midfield Studio Monitor

The S3V is a professional-grade midfield monitor built for accurate, room-filling sound in medium to large studios. Its three-way design features a 9″ ELE bass driver, a 4″ midrange driver, and ADAM’s signature S-ART folded-ribbon tweeter. This combination delivers deep, articulate lows down to 32 Hz, natural mids, and crystal-clear highs up to 50 kHz.

Tri-amplified with 500 W driving the woofer, 300 W for the midrange, and 50 W for the tweeter, the S3V achieves up to 124 dB SPL per pair without distortion. Built-in DSP offers parametric EQ, shelving filters, limiter-based driver protection, and room-tuning presets via USB and the S Control software. A rigid, front-ported cabinet and HPS waveguide ensure controlled directivity and minimal coloration.

Key Features

• Three-Way Design: 9″ ELE bass driver, 4″ midrange, 2″ S-ART ribbon tweeter
• Powerful Tri-Amp System: 500 W + 300 W + 50 W RMS
• Wide Frequency Range: 32 Hz – 50 kHz (–20 dB)
• High SPL Capability: Up to 124 dB per pair at 1 m
• Built-In DSP: 6-band parametric EQ, shelving filters, limiter, preset memory
• Flexible Inputs: Analog XLR, AES3 digital, USB port for firmware & control
• Front-Ported Cabinet: Controlled bass extension with minimal resonance

Technical Specs

• Dimensions: 21.1″ × 11.5″ × 15.0″ (536 × 293 × 380 mm)
• Weight: 55 lb (25.0 kg)
• Frequency Response: 32 Hz – 50 kHz (–20 dB)
• Crossover Frequencies: 250 Hz & 3 kHz
• Maximum SPL: 124 dB per pair @ 1 m
• Input Connectors: XLR (analog), AES3 (digital), USB
• Input Impedance: 48 kΩ
• Power Consumption: 550 W max
• Warranty: 5 years (2 + 3 with registration)

In the Box

• ADAM Audio S3V Monitor
• Power Cord
• User Manual
