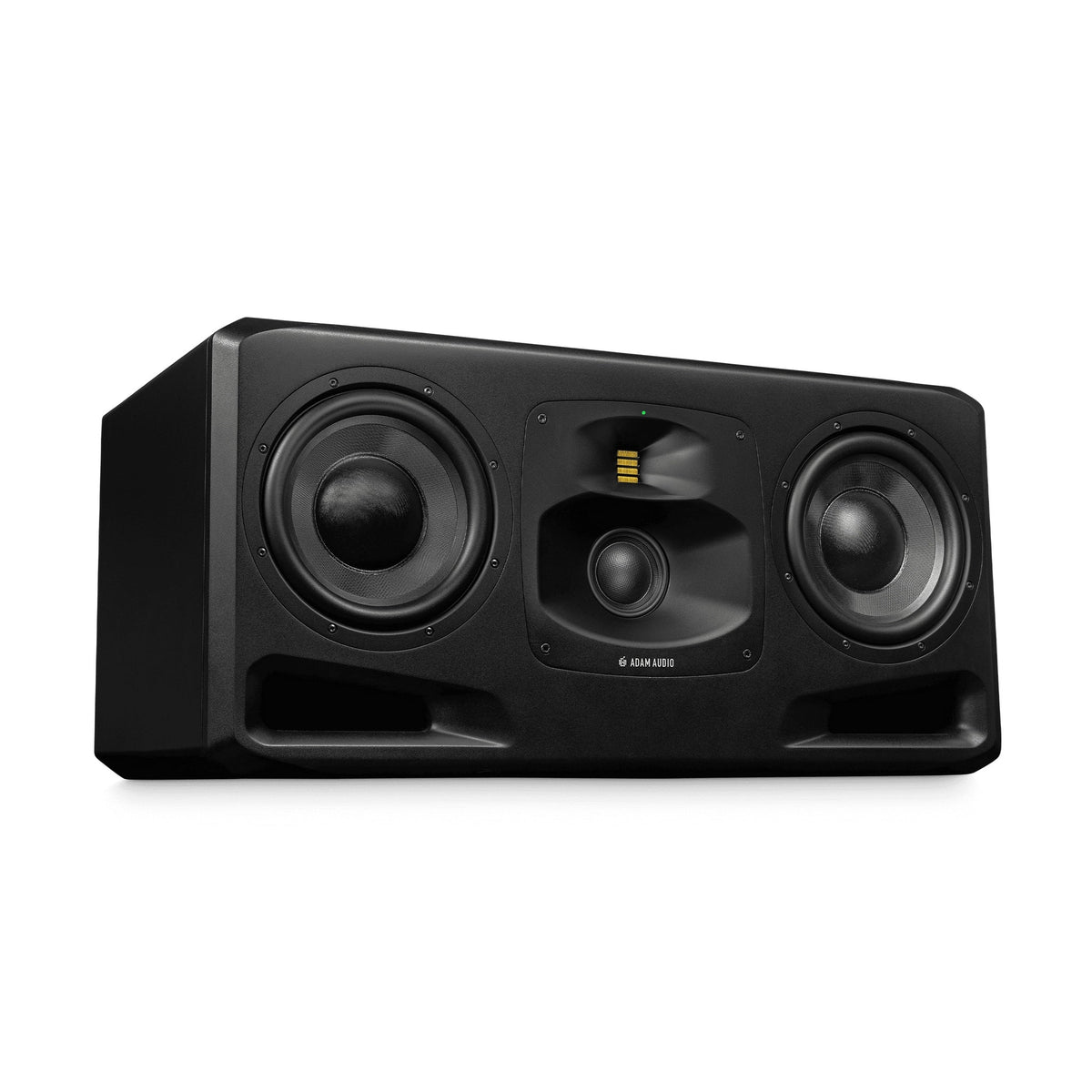

ADAM Audio S5H Three-Way Powered Horizontal Main Monitor

ADAM Audio S5H Three-Way Powered Horizontal Main Monitor

The ADAM Audio S5H is a flagship, horizontally oriented main monitor designed for the most demanding studio and post-production environments. Dual 10″ Extended Linear Excursion (ELE) bass drivers deliver rock-solid, distortion-free low end down to 25 Hz, while the 4″ hybrid dome-cone midrange ensures natural, transparent mids. ADAM’s handcrafted S-ART ribbon tweeter provides ultra-detailed highs up to 50 kHz with a wide, even sweet spot.

Tri-amplified with powerful PWM Class-D modules—700 W per woofer, 300 W for midrange, and 100 W for the tweeter—the S5H achieves up to 131 dB SPL per pair without clipping. Built-in DSP handles precision crossovers, parametric EQ, shelving filters, limiter-based driver protection, and room-tuning presets via the free S Control software or USB. Milled aluminum waveguides optimize dispersion for multiple listening positions in large control rooms.

Key Features

• Dual 10″ ELE Bass Drivers: Deep, dynamic bass to 25 Hz
• 4″ DCH Midrange Driver: Hybrid cone/dome for accurate mids from 200 Hz
• S-ART Ribbon Tweeter: Extended highs to 50 kHz with even dispersion
• Tri-Amp Power: 700 W + 300 W + 100 W RMS for full-range dynamics
• Built-In DSP: 6-band parametric EQ, bass/treble shelving, limiter, preset memory
• High SPL Capability: Up to 131 dB per pair @ 1 m
• Flexible I/O: Analog XLR & AES3 digital inputs, +24 dBu max level
• Horizontal Format: Rack-friendly for main-monitor placement

Technical Specs

• Frequency Response: 22 Hz – 50 kHz (–20 dB)
• Crossover Frequencies: 250 Hz & 3 kHz
• Max. SPL per Pair: ≥ 131 dB @ 1 m
• THD: ≤ 0.3 % above 100 Hz
• Input Impedance: 48 kΩ (XLR analog)
• Power Consumption: 900 W max; auto-standby
• Warranty: 5 years (2 + 3 with registration)

In the Box

• 1x ADAM Audio S5H Main Horizontal Monitor
• 1x Power Cord
• 1x Quick Start Guide
• 1x Warranty Registration Card
