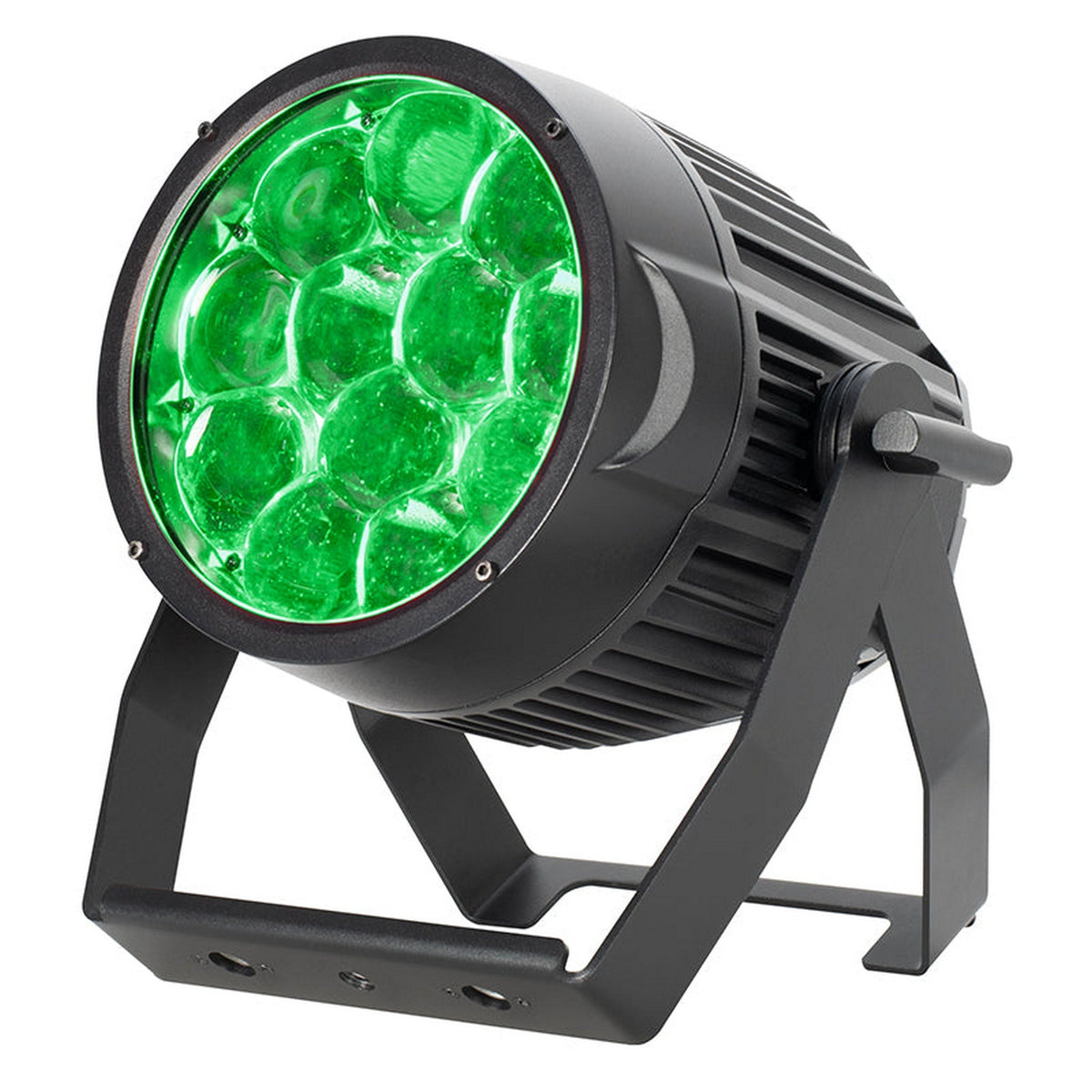

ADJ Encore LP12Z IP LED Wash Fixture

ADJ Encore LP12Z IP LED Wash Fixture

The ADJ Encore LP12Z IP is a weatherproof (IP65) LED wash fixture built for demanding production environments. Equipped with 12 powerful 20 W Quad RGBL LEDs, it offers motorized zoom and wireless DMX, making it a versatile lighting tool for dynamic stage and event applications.

Whether used for tight onwards or broad wash coverage, tunable white control (2700 K–6500 K), or high-CRI color rendering, this fixture delivers professional-grade flexibility in a compact, rugged design.

Key Features

• LEDs: 12 × 20 W Quad RGBL (Red, Green, Blue, Lime)
• Lumen Output: Approx. 4,400–4,900 lumens
• CRI: 84.4; R9: 67–77
• Motorized Zoom: Beam angle 5°–30°; Field angle 9°–50°
• Color Control: Tunable white (2700 K–6500 K) with presets; 16-bit RGBL mixing; 64 built-in color macros
• Control Options: Static, RGBL Dimmer, Program, DMX; wireless DMX (up to 2,500 ft / 700 m LOS); RDM support
• Dimming Modes & Curves: 6 dimming modes; 4 dimming curves; adjustable refresh rate (900–25,000 Hz); flicker-free
• Construction: IP65-rated aluminum housing; C3 marine-grade coating; rubber covers and locking connectors
• Mounting: Scissor yoke with safety eye

Technical Specifications

• Dimensions: 8.75″ × 12.45″ × 14.45″ (222 × 316 × 367 mm)
• Weight: 16.6 lb (7.5 kg)
• Power Input: AC 100–240 V, 47–63 Hz; Max consumption ~227 W; daisy-chain 6 units @ 120 V or 12 units @ 220 V
• Operating Temp: –4 °F to 113 °F (–20 °C to 45 °C)
• Certifications: cETLus, CE, FCC, UKCA, IP65
• Includes: Power cord

What’s Included

• 1x Encore LP12Z IP fixture
• 1x Locking power cord
