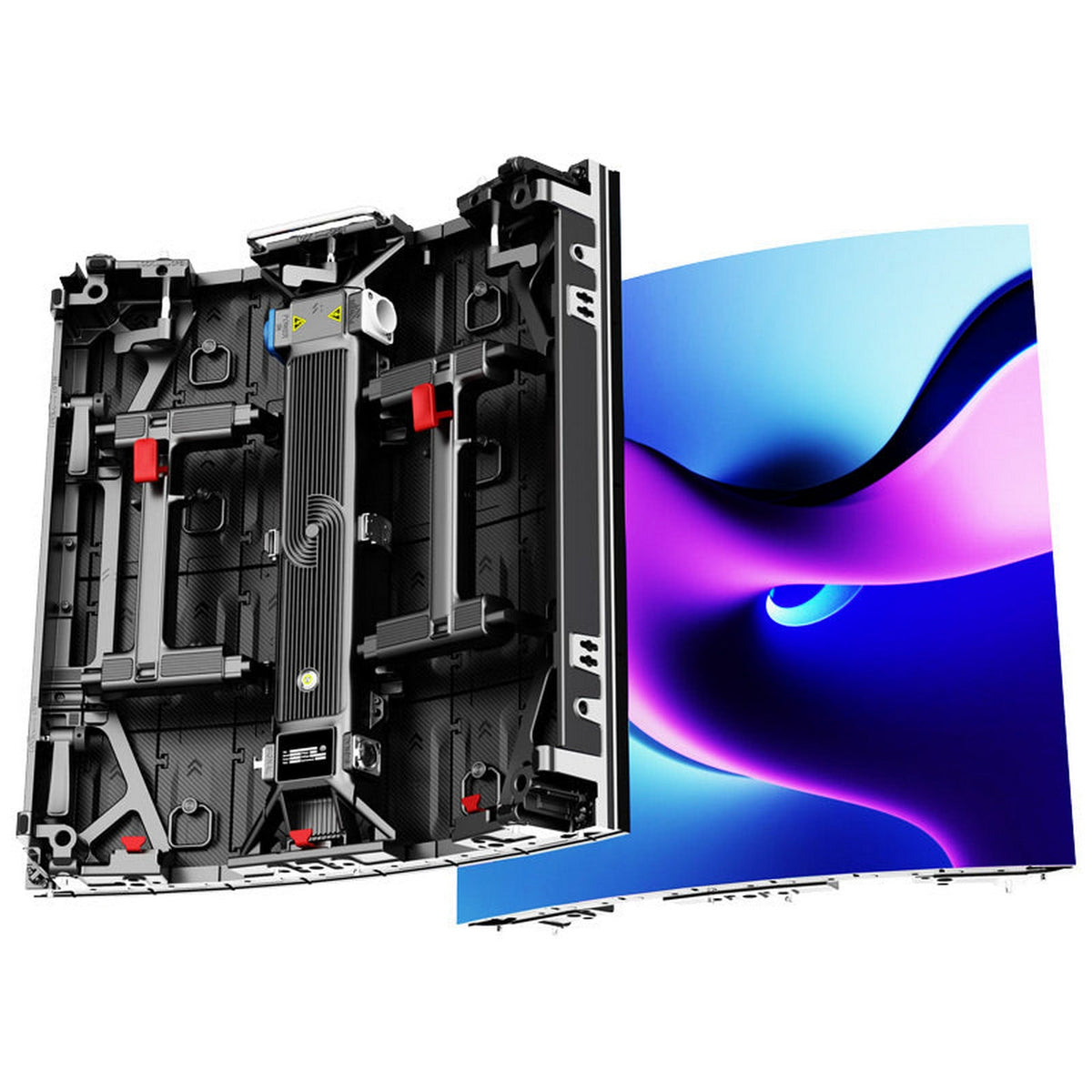

ADJ EVS3 FLEX45 Curvable 3.91mm Pixel Pitch LED Video Panel

ADJ EVS3 FLEX45 Curvable 3.91mm Pixel Pitch LED Video Panel

The EVS3 FLEX45 by American DJ is a versatile and high-precision curved LED video panel featuring a 3.91 mm pixel pitch and 128×128 resolution. Designed for immersive visual installations, it bends up to 45° concave or convex for seamless, dynamic video walls and architectural displays.

Constructed with quality Kinglight Copper 3-in-1 SMD2121 LEDs and cutting-edge technologies like Memory on Module (MOM), this lightweight yet durable panel (15.6 lbs) ensures both superior image performance and easy handling—ideal for touring, staging, and event production.

Key Features

• Pixel Pitch: 3.91 mm (0.15")
• Resolution: 128×128 pixels across 4 modules
• Flexibility: Bends up to 45° concave or convex
• Brightness: 800 nits
• View Angle: 160° horizontal / 140° vertical
• Memory on Module (MOM): Retains calibration per module
• Durability: Rear serviceable, corner protectors, retractable handle
• Certifications: cETLus, IP20 (indoor use)

Technical Specifications

• Dimensions (W×H×D): 19.68" × 19.68" × 2.96" (500 × 500 × 75 mm)
• Weight: 15.6 lbs (7.06 kg)
• Power: 100–240 V AC, max 120 W, avg 48 W
• Control & Connectivity: NovaStar via DVI, Power/Data Lock In/Out
• Environmental: Operating: –4 °F to 104 °F (–20 °C to 40 °C); Storage: –40 °F to 176 °F (–40 °C to 80 °C); Humidity: 10–90% non-condensing
• Operating Life / MTBF: 50,000 hrs / 5,000 hrs

What's Included

• 1x EVS3 FLEX45 LED Panel
• Manufacturer’s 2-Year Limited Warranty
