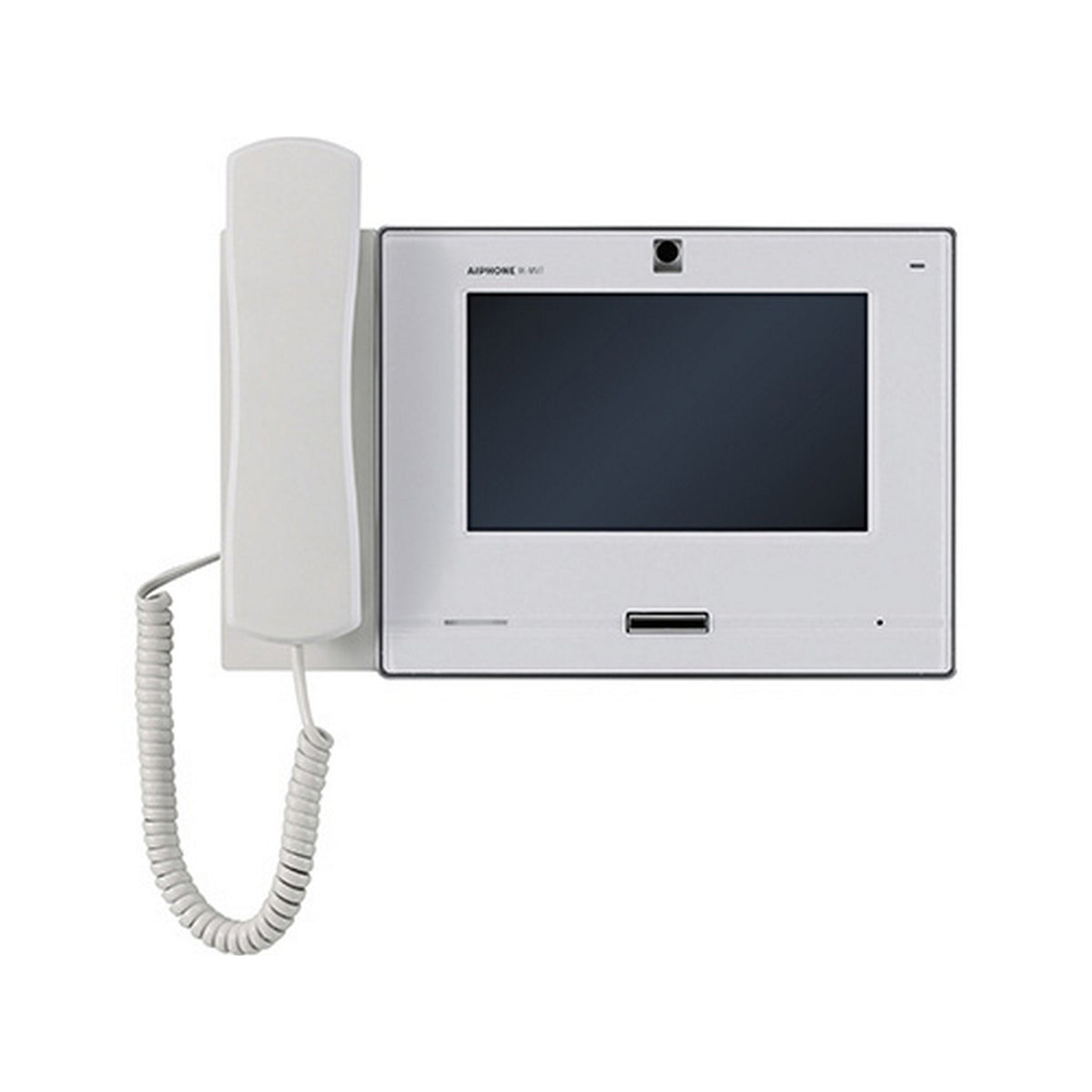

Aiphone IX-MV7-HW-JP IP Video Master Station

Aiphone IX-MV7-HW-JP IP Video Master Station

The Aiphone IX-MV7-HW-JP is a TAA-compliant IP video master station with a 7-inch touchscreen and built-in handset. It is designed for secure, scalable intercom systems and supports SIP and ONVIF Profile S for broad compatibility. Ideal for installations that need a feature-rich master station with modern connectivity.

This unit includes a fixed 720p CMOS camera with privacy shutter, hands-free or push-to-talk communication modes, and eight customizable speed-dial buttons. It supports storing audio and video of active conversations via microSD card (card not included), and offers picture-in-picture display for viewing both intercom and external IP-camera video feeds. Mounting options include wall mount with bracket and a multi-angled desk stand.

Built for reliability and professional use, this master station features two contact outputs, four trigger inputs, and full-duplex communication. It is well suited for corporate entrances, multi-tenant properties, control rooms, or anywhere an advanced, high-security master intercom solution is required.

Key Features

• TAA- and SIP-compliant IP video master station
• 7-inch TFT LCD touchscreen display
• Built-in fixed 720p camera with privacy shutter
• Hands-free or handset communication modes
• Eight customizable speed-dial / quick action buttons
• Support for audio/video capture via microSD card (card not included)
• Picture-in-picture mode for intercom + ONVIF IP camera view
• Two contact outputs and four trigger inputs for external device control

Technical Specifications

• Power Source: PoE (IEEE 802.3af class 0)
• Power Draw: 4.32 W
• Display: 7-inch TFT LCD touchscreen, resolution 800×400
• Camera: ⅓-inch CMOS, 720p fixed; privacy shutter included
• Audio Codecs: G.711 (µ-law, A law), G.722
• Video Codecs: H.264/AVC, Motion JPEG
• Operating Temperature: 32 to 104 °F (0 to 40 °C)
• Dimensions: 8-1/16 in H × 11 in W × 2-3/16 in D
