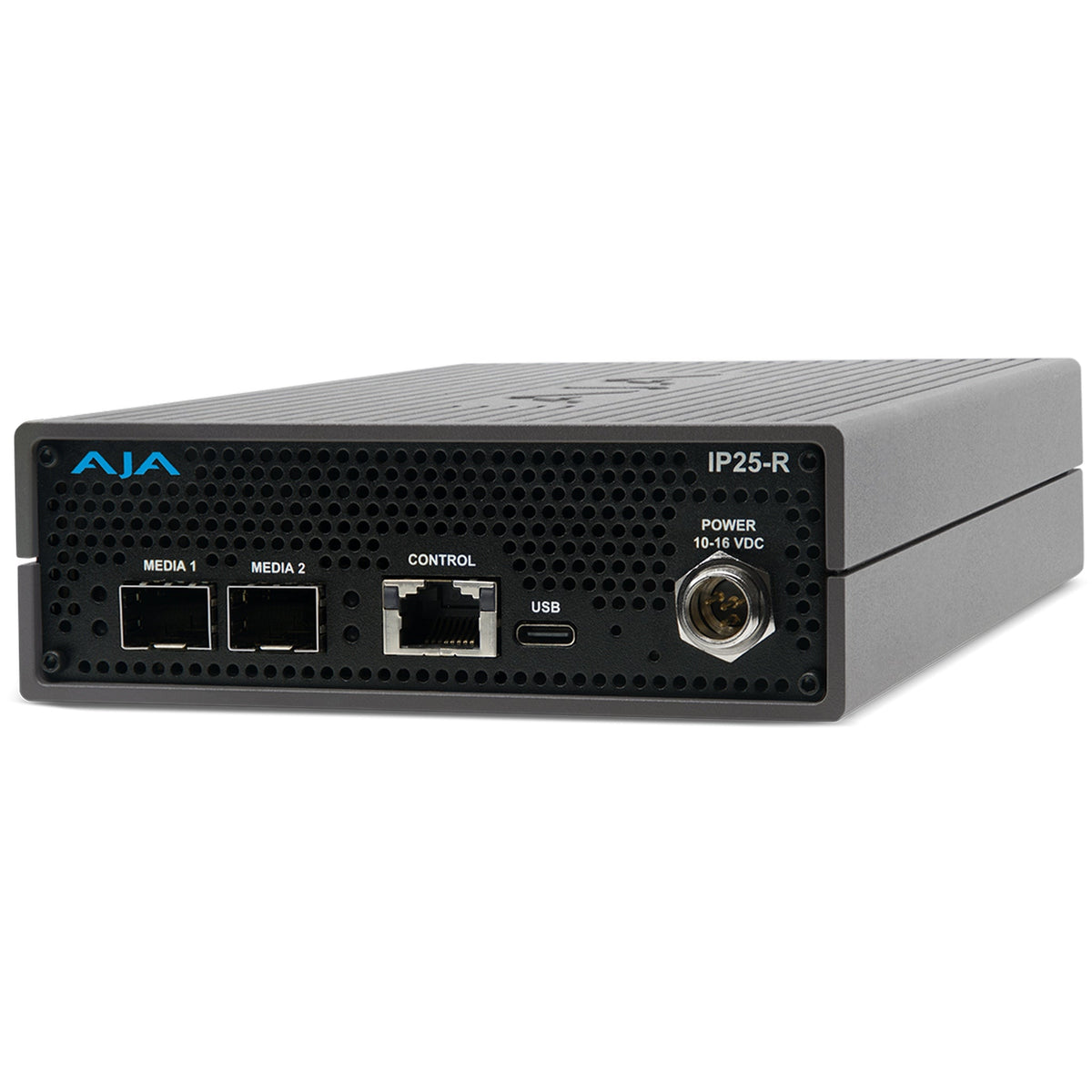

AJA IP25-R 25 GigE SMPTE ST 2110 to 12G-SDI/HDMI Converter

AJA IP25-R 25 GigE SMPTE ST 2110 to 12G-SDI/HDMI Converter

The AJA IP25-R is a professional IP video converter that bridges SMPTE ST 2110 IP networks with traditional SDI and HDMI infrastructure. Designed for broadcast and production environments, the IP25-R supports uncompressed 4K, UHD, 2K, and HD video up to 4Kp60. Featuring dual 25 GigE interfaces, 4x 12G-SDI outputs, and 2x HDMI 2.0 outputs, it provides flexible, low-latency IP to baseband conversion with HDR awareness and precise PTP synchronization.

Key Features

• Converts SMPTE ST 2110 IP streams to SDI and HDMI outputs
• Supports 4K/UHD/2K/HD up to 60p, 10-bit YCbCr 4:2:2 and RGB 4:4:4
• Dual 25 GigE SFP28 ports for redundant network connectivity
• 4x 12G-SDI BNC outputs and 2x HDMI 2.0b Type-A outputs
• HDR metadata pass-through with user control for colorimetry and transfer function
• PTP compliant for ST 2059-1 synchronization and low-latency performance
• NMOS IS-04 and IS-05 discovery, registration, and control
• Web and REST API interfaces for configuration and monitoring
• Integrated USB-C port for setup via AJA eMini-Setup utility
• Rugged, compact metal enclosure for field or rack-mounted use

Technical Specifications

• Video Formats: 4K/UHD/2K/HD up to 60p
• IP Standards: SMPTE ST 2110-20 (Video), ST 2110-30 (Audio), ST 2110-40 (Ancillary)
• Audio: 24-bit embedded audio, 16-channel SDI, 8-channel HDMI
• Network: 2x 25 GigE SFP28 cages, 1x 1 GigE RJ-45 for control
• Protocols: IGMPv2/v3, LLDP, NMOS, PTPv2/PTPv3
• Output Connectors: 4x 12G-SDI BNC, 2x HDMI 2.0b Type-A
• Control Interface: Web browser, REST API, USB-C (initial setup)
• Size (W x D x H): 5.0 x 8.09 x 1.65 in (127 x 205.5 x 41.8 mm)
• Weight: 1.92 lb (0.87 kg)
• Power: 10–18VDC, 25W max via 4-pin mini-XLR (AC adapter included)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
