AtlasIED 1542NA-C 2-Channel 4W PoE Power Amplifier Module
AtlasIED 1542NA-C 2-Channel 4W PoE Power Amplifier Module The AtlasIED 1542NA-C is a compact, high-efficiency amplifier module ideal for powering small speaker zones within a GLOBALCOM® system. Each of its two channels delivers 4 watts into 8Ω loads, making it perfect for...
PRODUCT DETAILS
Everything you need to know.

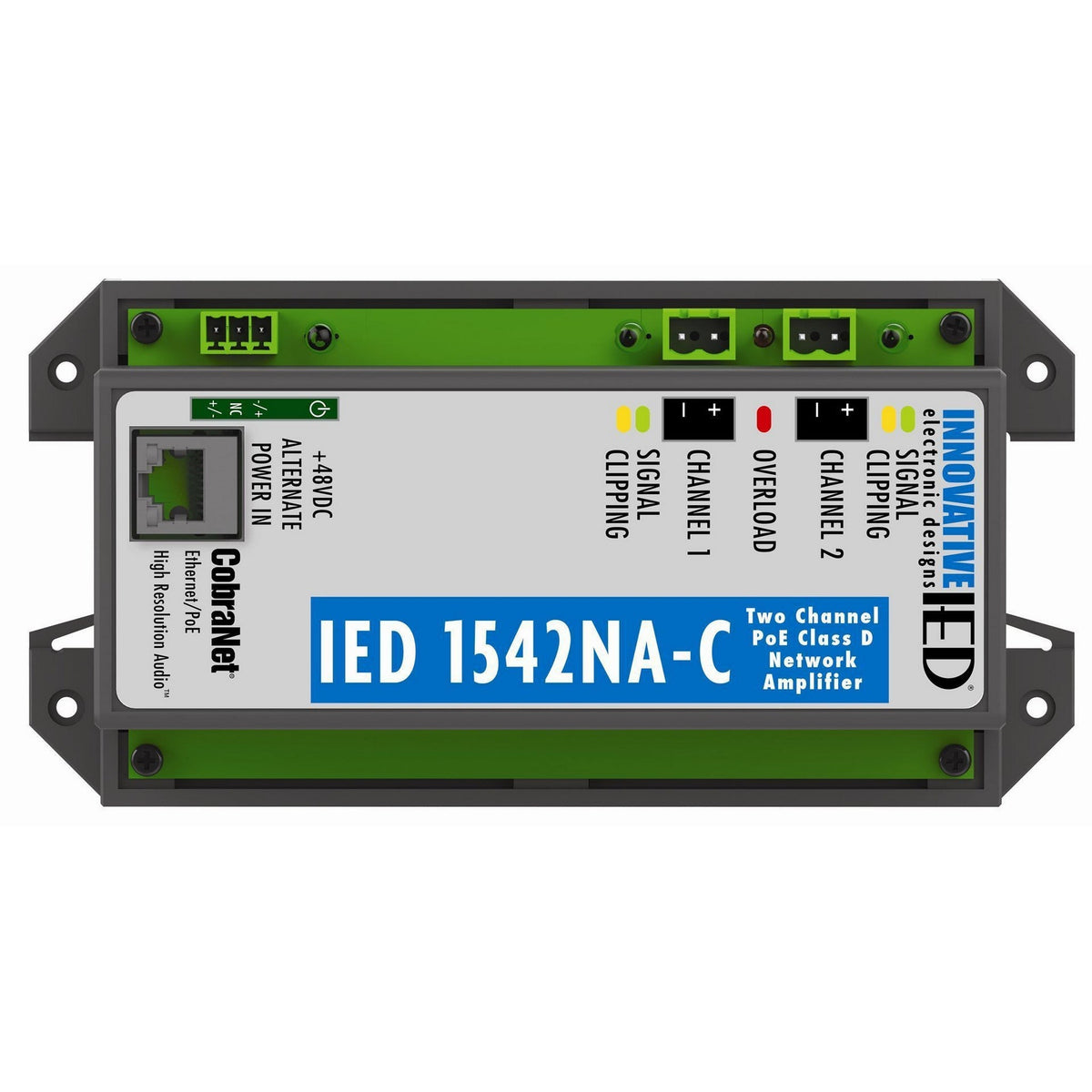

AtlasIED 1542NA-C 2-Channel 4W PoE Power Amplifier Module
The AtlasIED 1542NA-C is a compact, high-efficiency amplifier module ideal for powering small speaker zones within a GLOBALCOM® system. Each of its two channels delivers 4 watts into 8Ω loads, making it perfect for low-powered speaker applications such as remote paging or localized audio zones. Audio input is managed through the Ethernet audio network and configured using the GLOBALCOM® System Management Center.
Powered via standard IEEE 802.3af PoE or an optional 48VDC supply, the 1542NA-C offers flexible installation options. Status LEDs provide real-time feedback for power, signal presence, clipping, and thermal protection. Its durable enclosure supports DIN-rail or wall/panel mounting for easy placement in remote equipment closets or near the speaker zone.
Key Features
- Network Audio: Receives and configures input via GLOBALCOM® System Management Center
- Dual Channel Power: 4 watts per channel into 8Ω loads
- Flexible Power: Operates on PoE or external 48VDC supply
- Thermal & Clipping Protection: Visual indicators and auto-shutdown features
- Compact Mounting: DIN-rail or wall-mount enclosure
Technical Specifications
- Dimensions: 7.01 x 3.50 x 2.00 inches (178 x 89 x 53 mm)
- Weight: 10.0 oz (284 g)
- Connectivity: PoE / Ethernet
What's in the Box
- 1542NA-C Amplifier Module
- Mounting Hardware
