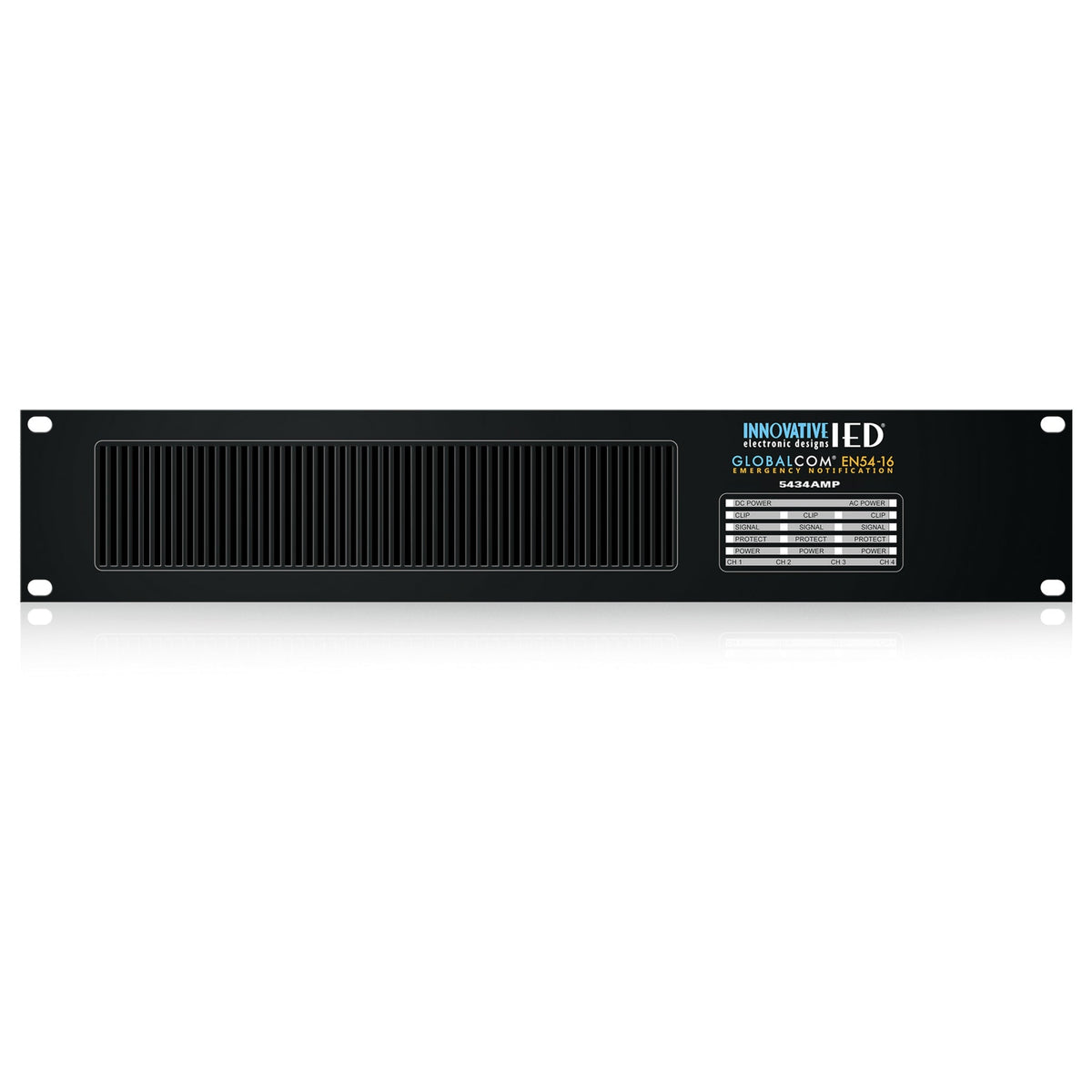

AtlasIED 5434AMP GLOBALCOM 4-Channel 300W Class D Amplifier, EN54-16 Certified

AtlasIED IED5434AMP GLOBALCOM 4-Channel 300W Class D Amplifier, EN54-16 Certified

The AtlasIED 5434AMP is a 4-channel, 300-watt-per-channel Class D amplifier designed as part of the GLOBALCOM® EN54-16 compliant communications system. It delivers high-efficiency, transformerless 100V outputs with minimal rack space and reduced power consumption.

Each channel is internally protected against over-current, over-temperature, and short circuits. A 24VDC input allows seamless failover to battery backup during AC power loss. Designed for use with 5404DZM or 5432DZM Zone Managers, it ensures full supervisory integration for mission-critical paging and life safety systems.

Key Features

• Powerful performance: 4 x 300W outputs at 100V without transformers
• Class D architecture: High-efficiency, low heat, reduced energy costs
• Dual power: 210–240 VAC mains + 24VDC battery backup
• Full protection: Over-current, thermal, short circuit, current limiting
• Remote control: External power on/off input
• Smart cooling: Variable-speed, low-noise fans

Technical Specifications

• Model: 5434AMP
• Dimensions: 17.2 x 17.87 x 3.47 inches (437 x 454 x 88 mm)
• Weight: 30.86 lbs (14 kg)
• Power Output: 300W per channel (4 channels)
• Frequency Response: 20 Hz – 20 kHz
• SNR: > 100 dB
• THD: < 0.3%
• Power Inputs: 210–240 VAC, 50–60 Hz; 24VDC backup
• Heat Dissipation: Idle: 75W; 1/3 load: 200W; Full: 340W
• Operating Temp: 32°F – 122°F (0°C – 40°C)
• Storage Temp: –40°F – 158°F (–40°C – 70°C)
