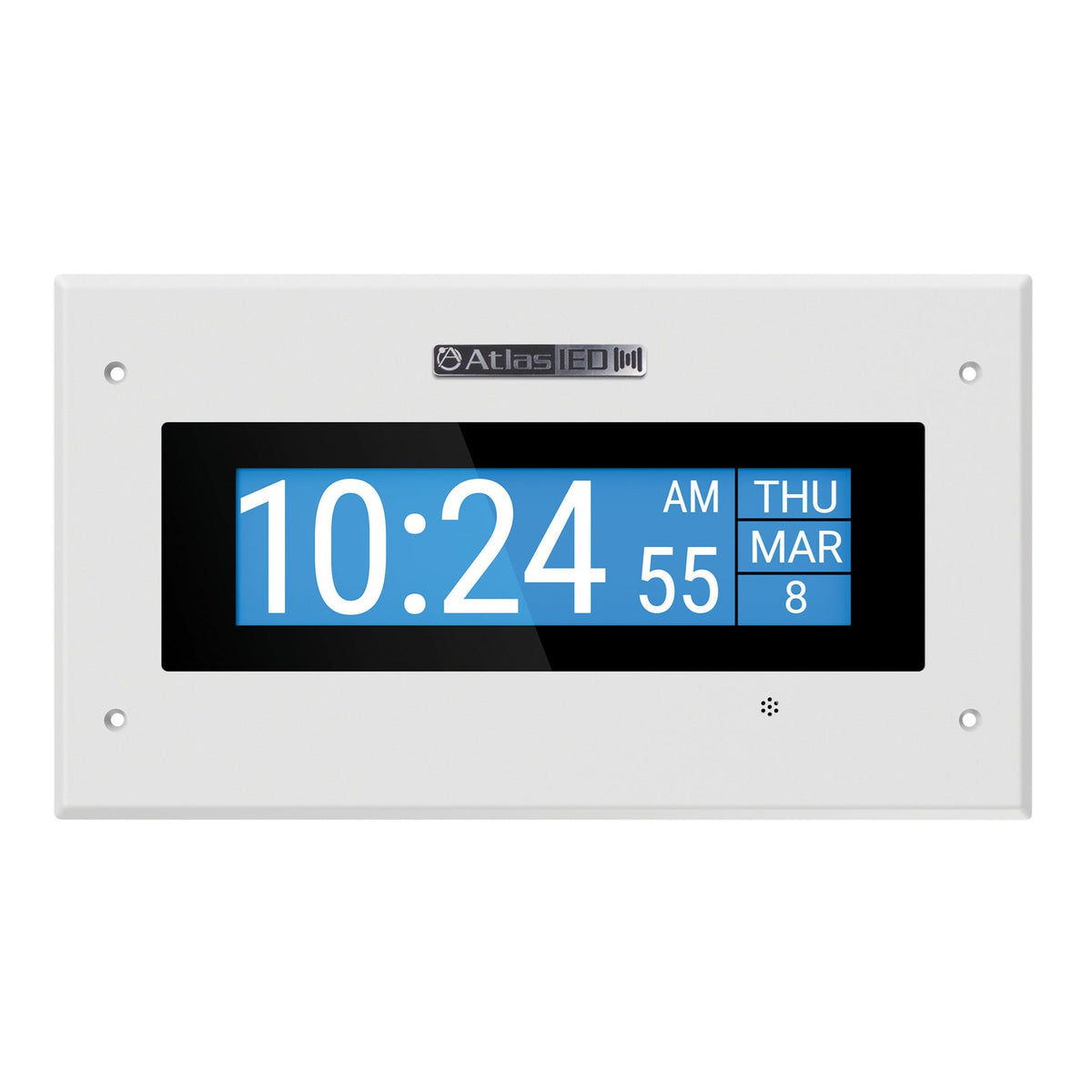

AtlasIED IP‑DM PoE+ Indoor Wall‑Mount LCD Endpoint with Touchtalk Microphone

AtlasIED IP‑DM PoE+ Indoor Wall‑Mount LCD Endpoint with Touchtalk Microphone

The AtlasIED IP‑DM brings powerful visual alerting and voice intercom to indoor wall-mount applications. Featuring a high-resolution LCD display and integrated talkback microphone, the device supports scrolled text, time, and emergency messaging over your network via PoE+ power.

Designed for corporate, educational, healthcare, industrial, and government environments, the IP‑DM registers as an endpoint with InformaCast, SA‑Announce, GCK, and SIP/Cisco SRST platforms. It also delivers audio through line-level or amplified outputs, perfect for interfacing with existing PA systems.

Key Features

• High‑Resolution LCD Display: Shows time, date, and scrolling text alerts
• Integrated Talkback Microphone: Enables two‑way communication or paging
• PoE+ Powered: Operates via IEEE 802.3at; supports static or dynamic IP
• Audio Outputs: 2× 15 W RMS (8 Ω) speaker feeds + balanced line-level output
• GPI/O Ports: 2 inputs, 1 relay output for triggers or external control

Technical Specifications

• Model: IP‑DM
• Dimensions: 13.9 × 7.75 × 3.25 in (353 × 197 × 83 mm)
• Weight: ~2.55 lbs (1.16 kg)
• Connectivity: RJ‑45 PoE+, line-level audio I/O, LCD, mic

What's in the Box

• IP‑DM wall‑mount endpoint
• Mounting hardware (enclosure sold separately)
