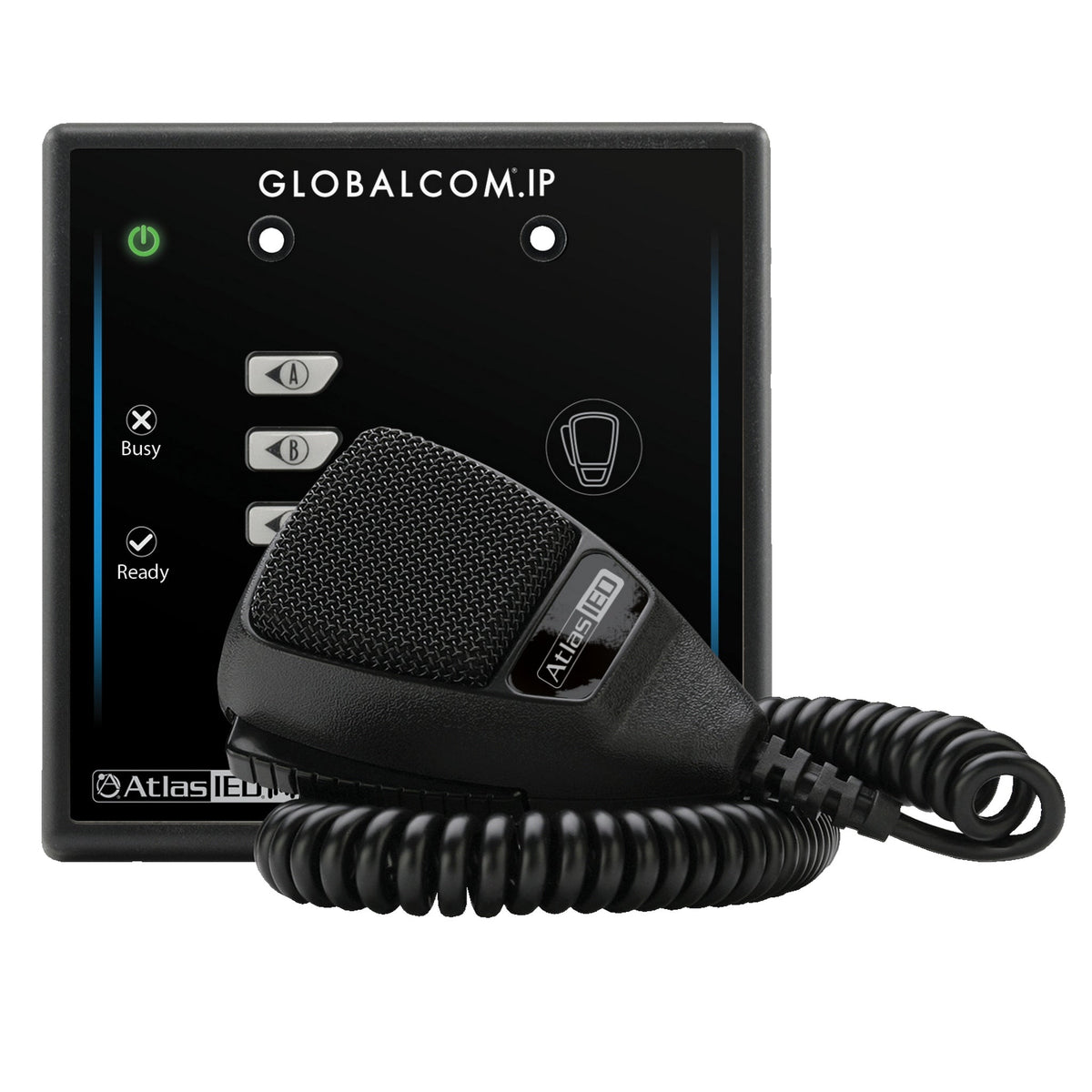

AtlasIED IPCSD4 Digital Microphone Station with 4 Programmable Buttons, Dante Enabled
AtlasIED IPCSD4 Digital Microphone Station with 4 Programmable Buttons, Dante Enabled The IPCSD4 is a professional Dante-enabled PoE digital microphone station engineered for enterprise paging and announcements. Featuring four programmable push-to-talk buttons, it enables users to initiate live pages, playback recorded messages,...
PRODUCT DETAILS
Everything you need to know.
AtlasIED IPCSD4 Digital Microphone Station with 4 Programmable Buttons, Dante Enabled
The IPCSD4 is a professional Dante-enabled PoE digital microphone station engineered for enterprise paging and announcements. Featuring four programmable push-to-talk buttons, it enables users to initiate live pages, playback recorded messages, or trigger alerts—all over a single Ethernet connection.
Designed for use with the GLOBALCOM® IP108-D or IP116-D controllers, this compact unit fits standard 1‑ or 2‑gang electrical boxes or can be desk-mounted with an optional weighted base. With support for full-bandwidth audio, LED status indicators, and PoE power, it’s ideal for schools, hospitals, offices, and emergency systems.
Key Features
- Dante Digital Audio: High-quality, low-latency 48 kHz/24‑bit transport over Ethernet
- Four Programmable Buttons: One-touch live pages, recorded announcements, or triggered messages
- PoE Powered: IEEE 802.3af compliant with single-cable deployment
- LED Indicators: Power, busy, and ready status feedback
- Flexible Mounting: Fits standard gang-box or optional base for desk use
Technical Specifications
- Model: IPCSD4
- Dimensions: 4.95 × 4.95 × 1.90 in (126 × 126 × 48 mm)
- Weight: ~1 lb (0.45 kg); Shipping ~1.5 lb (0.68 kg)
- Audio: 22 Hz–22 kHz, THD < 1%, SNR > 85 dB, 48 kHz/24-bit
- Connectivity: RJ‑45 Ethernet, Dante, PoE (<4 W)
What's in the Box
- IPCSD4 Microphone Station
- Mounting hardware (gang-box adapter)
