AtlasIED IPS‑ZC4 SIP‑to‑Analog 4‑Zone PoE Gateway
In stock SKU: ATS-IPSZC4

RhythmVault

AtlasIED IPS‑ZC4 SIP‑to‑Analog 4‑Zone PoE Gateway

$826.49

AtlasIED IPS‑ZC4 SIP‑to‑Analog 4‑Zone PoE Gateway The AtlasIED IPS‑ZC4 transforms SIP-based VoIP networks into fully functional analog paging systems. Supporting four paging zones and up to 15 paging groups, it delivers delayed paging and night ringer features in a compact PoE-powered enclosure....

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

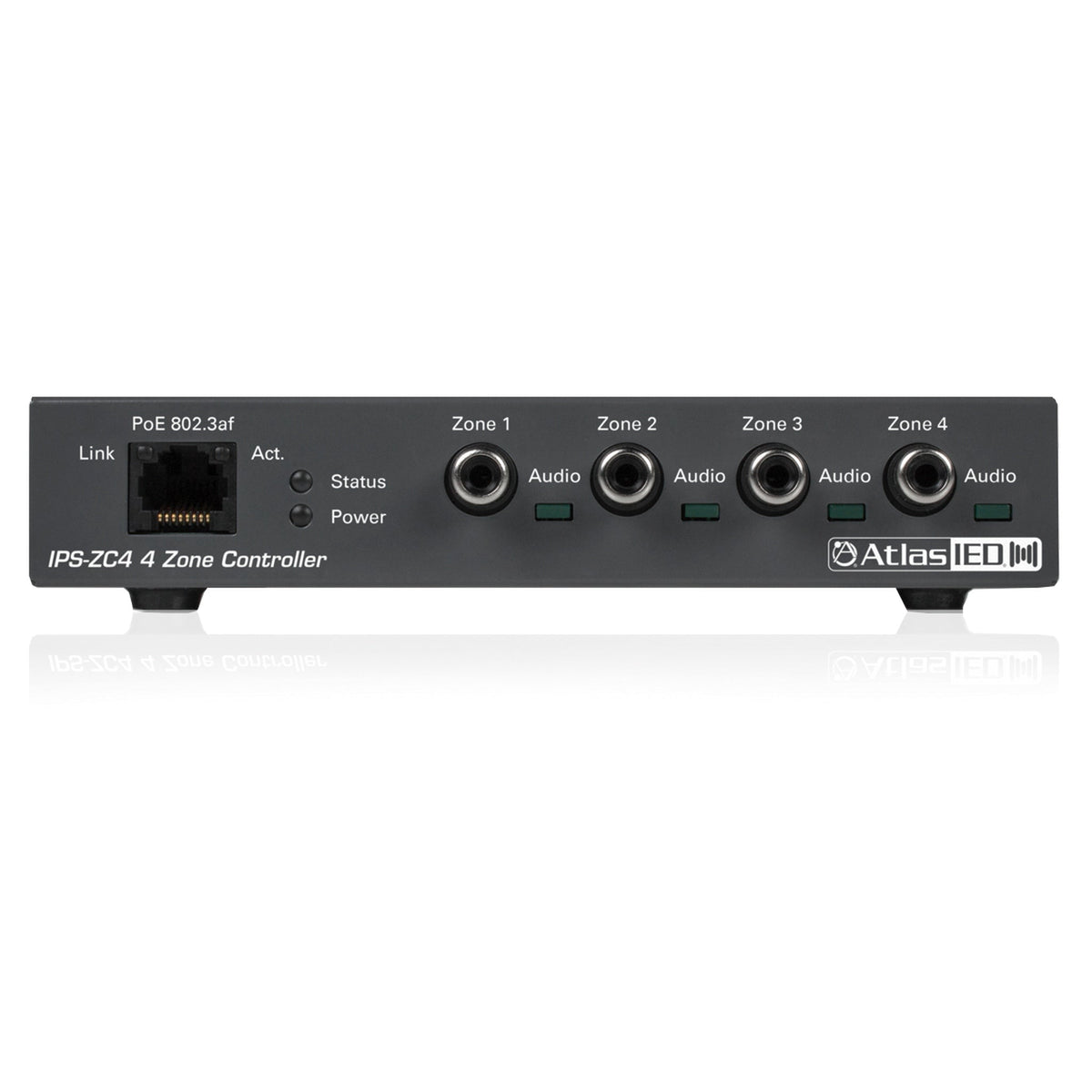

AtlasIED IPS‑ZC4 SIP‑to‑Analog 4‑Zone PoE Gateway

The AtlasIED IPS‑ZC4 transforms SIP-based VoIP networks into fully functional analog paging systems. Supporting four paging zones and up to 15 paging groups, it delivers delayed paging and night ringer features in a compact PoE-powered enclosure.

Ideal for corporate offices, schools, healthcare, transportation hubs, and industrial facilities, this SIP-to-analog gateway ensures seamless integration with IP/PBX servers—plus Cisco SRST compatibility for reliable failover in WAN outages.

Key Features

  • 4 Paging Zones & 15 Zone Groups: Flexible and scalable paging configuration
  • PoE & 48 VDC Input: Simplified deployment and backup power support
  • SIP RFC 3261 Compatible: Ensures broad VoIP interoperability
  • Delayed Paging & Night Ringer: Advanced scheduling options
  • Web-Based Configurable: Easy management and firmware updates via browser

Technical Specifications

  • Model: IPS‑ZC4
  • Dimensions: 6.2 × 4.5 × 1.22 in (157 × 114 × 31 mm)
  • Weight: 1.6 lb (0.73 kg); Boxed ~1.8 lb (0.82 kg)
  • Connectivity: 10/100 Mbps Ethernet, PoE (802.3af) or 48 VDC
  • Audio Output: 2.0 VPP, +2 dBm nominal, THD ≤ 0.5%
  • Operating Temp: –30 °C to 55 °C (–22 °F to 131 °F)
  • Regulatory: FCC Class A, UL 60950
