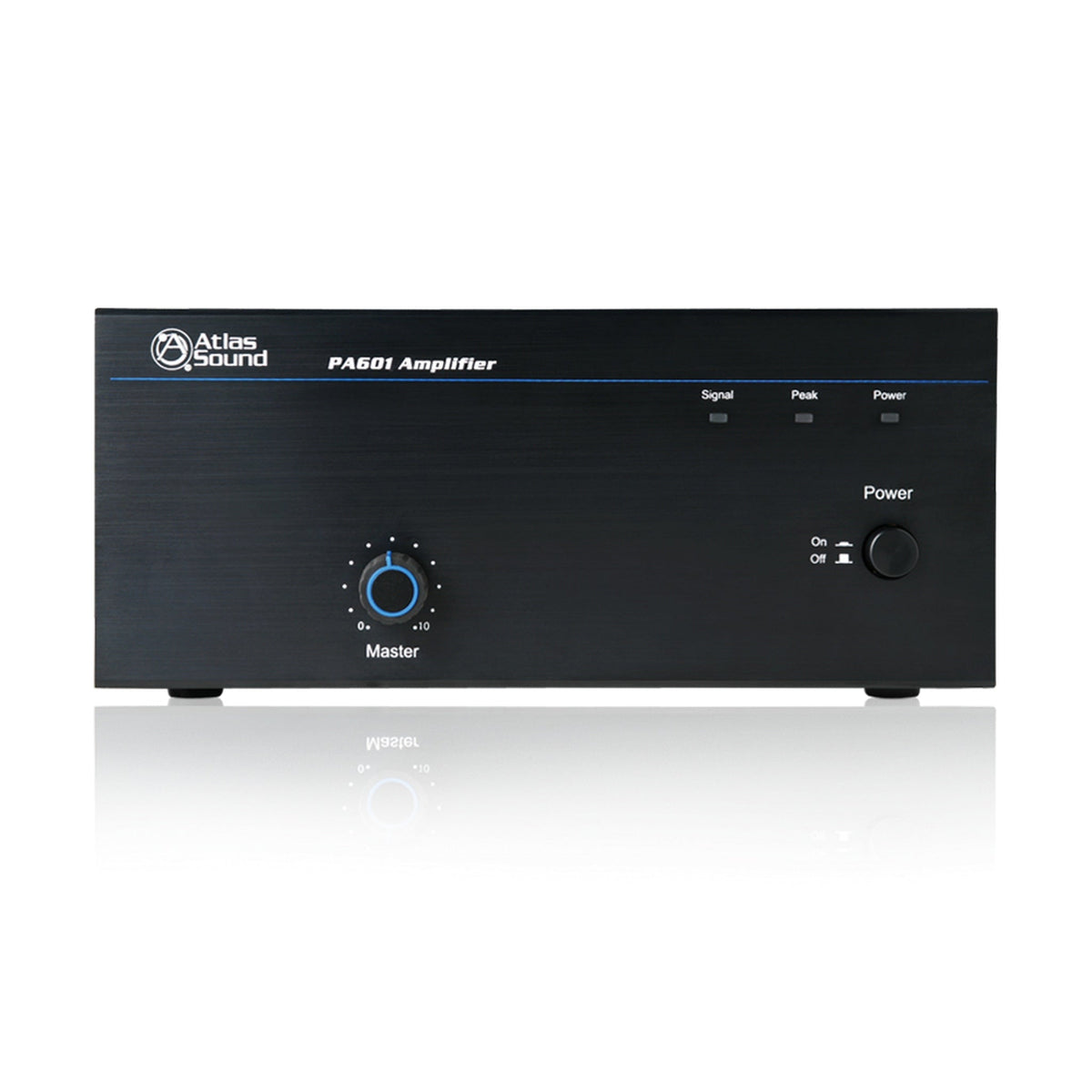

AtlasIED PA601 60W Single‑Channel 70/100V Power Amplifier, 1RU

AtlasIED PA601 60W Single‑Channel 70/100V Power Amplifier, 1RU

The AtlasIED PA601 is a rack‑mountable (1RU half‑rack height) single‑channel amplifier delivering 60 W into 4 Ω, 70 V, or 100 V lines—perfect for background music and paging in commercial environments. Featuring universal voltage capability (110–220 VAC) and a front‑panel loudness contour switch, it offers both flexibility and clarity.

With a balanced Phoenix input, unbalanced RCA input/output, and screw‑terminal speaker outputs, the PA601 guarantees reliable connectivity. LED indicators for power, signal, and clipping aid in system management, while compact dimensions make it easy to rack or mount. Optional rack ears available for 19″ enclosures.

Key Features

• Power Output: 60 W RMS @ 4 Ω, 70.7 V, or 100 V
• Input/Output: Balanced phoenix + unbalanced RCA; unbalanced line‑out RCA
• Loudness Contour: +4 dB boost at 100 Hz & 8 kHz
• LED Indicators: Power, Signal, Peak
• Voltage Range: Dual‑voltage 110–220 VAC with selectable fuse
• Form Factor: 1RU height, half‑rack width
• Safety/Certifications: CUL, CE, TUV, RoHS (IEC‑60065 compliant)

Technical Specifications

• Frequency Response: 50 Hz–20 kHz
• THD+N: ≤ 0.5% (@ 1 kHz, rated output), ≤ 0.1% (@ 5 W)
• Sensitivity: 500 mV balanced & unbalanced inputs; input impedance 20 kΩ
• S/N Ratio: >55 dB (balanced), >75 dB (unbalanced)
• Power Consumption: ~120 VA max
• Dimensions: 3.66″ × 8.27″ × 14″ (93 × 210 × 357 mm)
• Weight: 14 lbs (6.35 kg)
• Warranty: 36 months (3 years)

What's Included

• PA601 amplifier
• IEC power cord
• Owner’s manual
• Optional rack‑mount ears available separately (AARMK2‑5)
