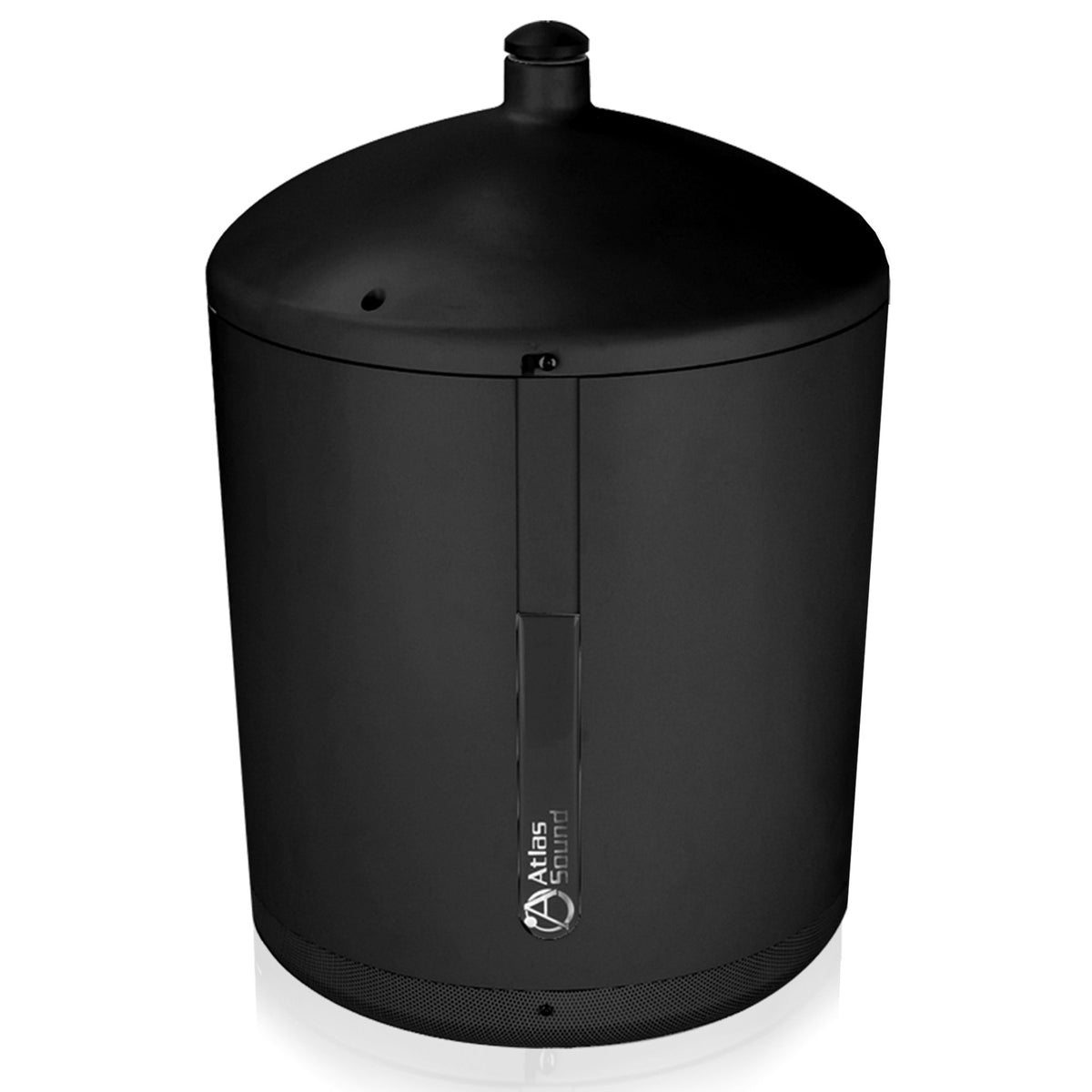

AtlasIED PM8CX 8-Inch Coaxial Pendant Mount Speaker

AtlasIED PM8CX 8-Inch Coaxial Pendant Mount Speaker

The AtlasIED PM8CX is a two-way pendant-mount loudspeaker featuring an 8″ polypropylene woofer and 1″ titanium compression driver in a coaxial design, delivering 92 dB average sensitivity and up to 150 W RMS power. It's engineered for high-ceiling environments up to 30 ft, with selectable 70.7 V transformer taps (1.9 to 60 W) and optional 8 Ω direct input.

Housed in an IPX-rated cylinder with a decorative top cap, this speaker blends discreet aesthetics with robust performance. The included 3 m suspension cable and compatibility with standard ¾″ ceiling-fan hardware streamline installation.

Key Features

• Coverage Pattern: 90° conical coverage in 2 kHz octave band (±45° off-axis)
• Transformer Taps: 70.7 V taps at 1.9, 3.8, 7.5, 15, 30, and 60 W, plus 8 Ω bypass
• Coaxial Driver: 8″ woofer, titanium compression driver for crisp HF output
• High Power Handling: 150 W RMS
• Installation Ready: 3 m cable and hardware, compatible with ceiling-fan hardware kits
• Aesthetic Design: Concealed wiring and terminal cap for clean look
• Durable Build: Polypropylene enclosure for indoor environments

Technical Specifications

• Frequency Response: 55 Hz – 15 kHz (±5 dB)
• Sensitivity: 92 dB SPL (1 W/1 m)
• Power Handling: 150 W @ 8 Ω
• Woofer: 8″ poly cone, butyl rubber surround
• HF Driver: Coaxially mounted titanium compression driver
• Impedance: 8 Ω or selectable 70.7 V taps
• Dispersion: 90° conical
• Transformer Taps: 1.9, 3.8, 7.5, 15, 30, 60 W @ 70.7 V; 8 Ω direct input
• DSP Protection: Environmental-resistant enclosure design

What's Included

• PM8CX pendant-mount loudspeaker
• 3 m suspension cable with self-gripping ferrule
• Mounting hardware
• Concealed terminal block with wires and protective cap
