Atlona AT-OMNI-111-WP Wallplate Networked AV Encoder

Atlona AT-OMNI-111-WP Wallplate Networked AV Encoder

The Atlona AT-OMNI-111-WP is a high-performance networked AV encoder designed for HDMI® sources up to 4K/UHD and HDR, with embedded audio and advanced AV over IP capabilities. It features a US two-gang wallplate form factor with interchangeable black and white trim kits for a clean, professional installation in walls, furniture, or floor boxes. Part of Atlona’s OmniStream™ platform, this encoder delivers exceptional image fidelity, ultra-low latency, and secure AV streaming over standard Gigabit Ethernet networks.

Powered by Atlona’s VCx™ codec, the OMNI-111-WP ensures artifact-free, 4K/60 video performance ideal for corporate, education, and commercial environments. The unit supports HDR10, HLG, and Dolby Vision™ for vibrant, high-dynamic-range visuals, and can be powered via PoE (Power over Ethernet) for streamlined integration. The encoder is compatible with the OmniStream OMNI-121 and OMNI-521 decoders, offering flexible, scalable AV over IP system design options.

Key Features

• 4K/UHD AV over IP Encoding: Streams HDMI video up to 4K/60 with embedded audio over standard Gigabit Ethernet.
• HDR Support: Supports HDR10 (10-bit), HLG (Hybrid Log-Gamma), and Dolby Vision™ (12-bit) for superior image quality.
• VCx™ Codec: Provides artifact-free, ultra-low-latency performance ideal for live presentations and motion graphics.

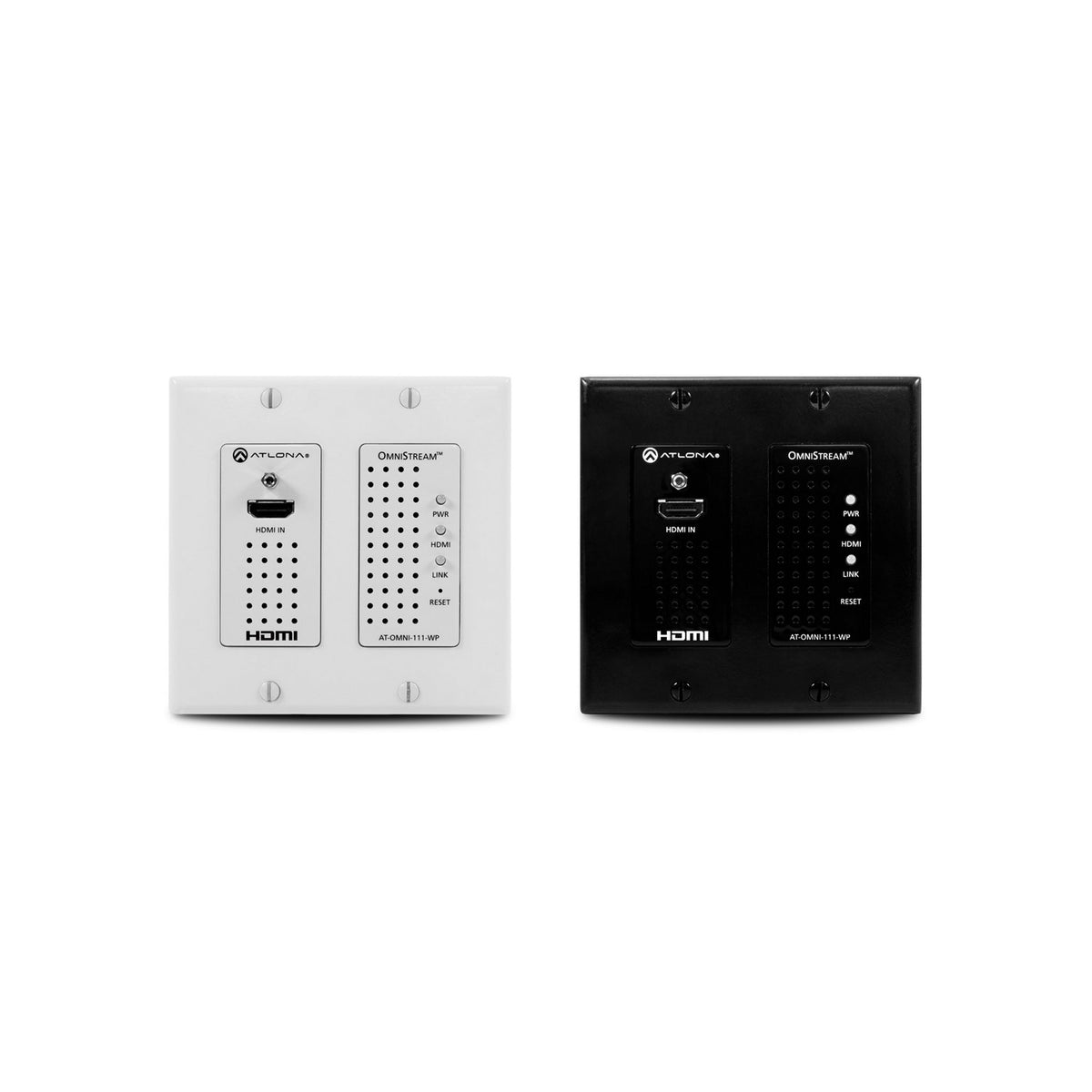

• Wallplate Design: Compact two-gang form factor with interchangeable black and white faceplates for discreet, professional installation.
• PoE Powered: Simplifies setup—no local power supply needed when connected to a PoE-capable network switch.
• EDID & HDCP Management: Ensures consistent communication and compatibility between source devices and decoders.
• Network Security: Features AES-128 encryption and IEEE 802.1x authentication for IT-compliant AV security.
• Thumbnail Previews: View encoder streams through the Velocity™ AV control system or web GUI.
• Fast Switching: Sub-frame latency and instantaneous switching between 4K/60 video streams.
• Integrated Scaler: Built-in upscaling and downscaling up to 4K/60 for optimal presentation flexibility.
• Network Diagnostics: Ethernet link testing for quick verification of network integrity from the web GUI.

Technical Specifications

• Video Input: HDMI (Type A, locking)
• Maximum Resolution: 4096×2160 @ 30 Hz (DCI), 3840×2160 @ 60 Hz (UHD, 4:2:0)
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-, 10-, and 12-bit
• HDR Formats: HDR10, HLG, Dolby Vision™
• Compression Formats: VCx and VC-2 (SMPTE-2042)
• Latency: <8 ms typical (0.5 frame); <24 ms in fast switching mode
• Audio Pass-Through: LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos®, DTS-HD Master Audio™, DTS:X®
• Audio Downmixing: Multichannel LPCM to stereo LPCM
• Bit Rate: Configurable up to 900 Mbps
• Protocols: RTP, AES67 (up to 7.1 channels), HTTPS, SSH, Telnet, WebSockets with TLS
• Authentication & Encryption: AES-128, IEEE 802.1x (PEAP/MSCHAPv2 or EAP-TLS)
• Network: IGMPv2/v3 multicast, QoS tagging (RFC 2475)
• Connectors: 1 × HDMI (input), 1 × RJ45 (Ethernet)
• Indicators: Power (tri-color), HDMI (bi-color), and Link (bi-color)
• Power: PoE (IEEE 802.3af)
• Power Consumption: Up to 12 W (40.9 BTU/h)
• Cooling: Front-to-rear airflow, temperature-controlled fans
• Operating Temperature: +14 to +104°F (−10 to +40°C)
• Storage Temperature: +14 to +140°F (−10 to +60°C)
• Dimensions (H×W×D): 4.19 × 3.46 × 1.72 in (106.5 × 88 × 43.65 mm)
• Weight: 0.46 lb (0.21 kg)
• Certifications: CE, FCC, CB, RoHS
• Compliance: NDAA-899 and TAA
