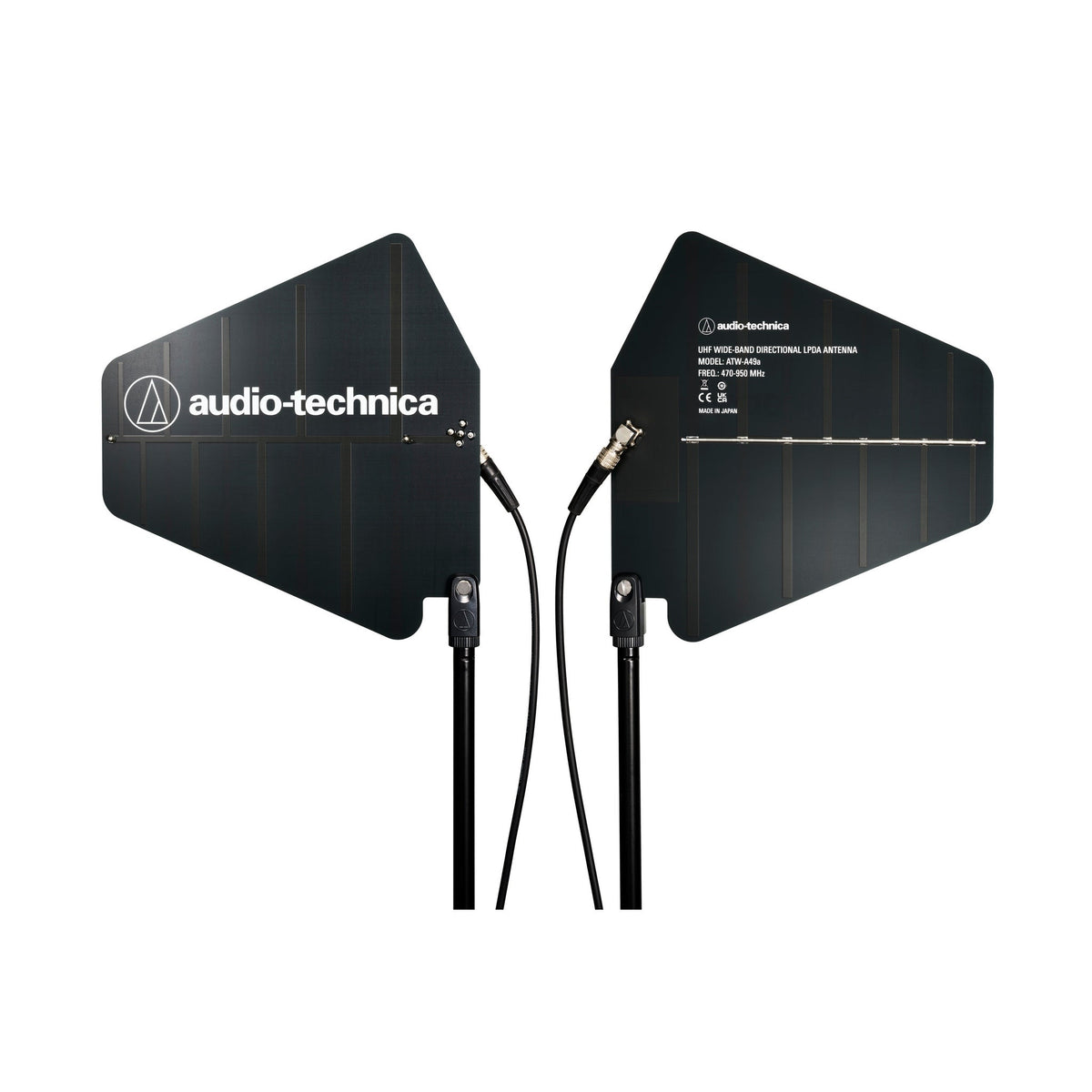

Audio-Technica ATW-A49 UHF Wide Band LPDA Antennas, Pair

The Audio-Technica ATW-A49 pair provides high performance directional antennas for UHF wireless systems. Designed for use with Audio-Technica wireless receivers and distribution systems, these log periodic dipole array antennas enhance signal range and stability by focusing RF energy toward the transmitter area. With a wide operating frequency range of 440 MHz to 900 MHz, they are suitable for multi-band professional wireless setups.

Each antenna features a durable copper clad epoxy fiberglass construction and a right angle BNC connector for low-loss connection. The design provides approximately 6 dB of forward gain, improving reception while minimizing interference from unwanted directions. Mounting threads are standard 5/8-27, compatible with most microphone stands and mounting hardware.

The ATW-A49 is ideal for theaters, broadcast facilities, conference rooms, and stage environments that require consistent and directional wireless signal coverage.

Key Features

• Wide Frequency Range: Operates between 440 MHz and 900 MHz for broad wireless compatibility.
• Directional LPDA Design: Focused pickup improves range and minimizes interference.
• 6 dB Typical Gain: Provides signal boost for long distance reception.
• Low Loss BNC Connection: Ensures efficient signal transfer with minimal degradation.
• Durable Construction: Made from copper clad epoxy fiberglass for long term use.

Technical Specifications

• Antenna Type: Log Periodic Dipole Array (LPDA)
• Frequency Range: 440 MHz to 900 MHz
• Impedance: 50 ohms nominal
• Gain: 6 dB typical
• VSWR: 1.7:1 typical
• Beamwidth: 90 degrees nominal
• Connector: BNC, right angle type
• Mounting Thread: 5/8-27 standard
• Material: Copper clad epoxy fiberglass
• Dimensions (W x H x D): 10.55 in x 11.22 in x 0.98 in
• Weight: 11.5 oz each
