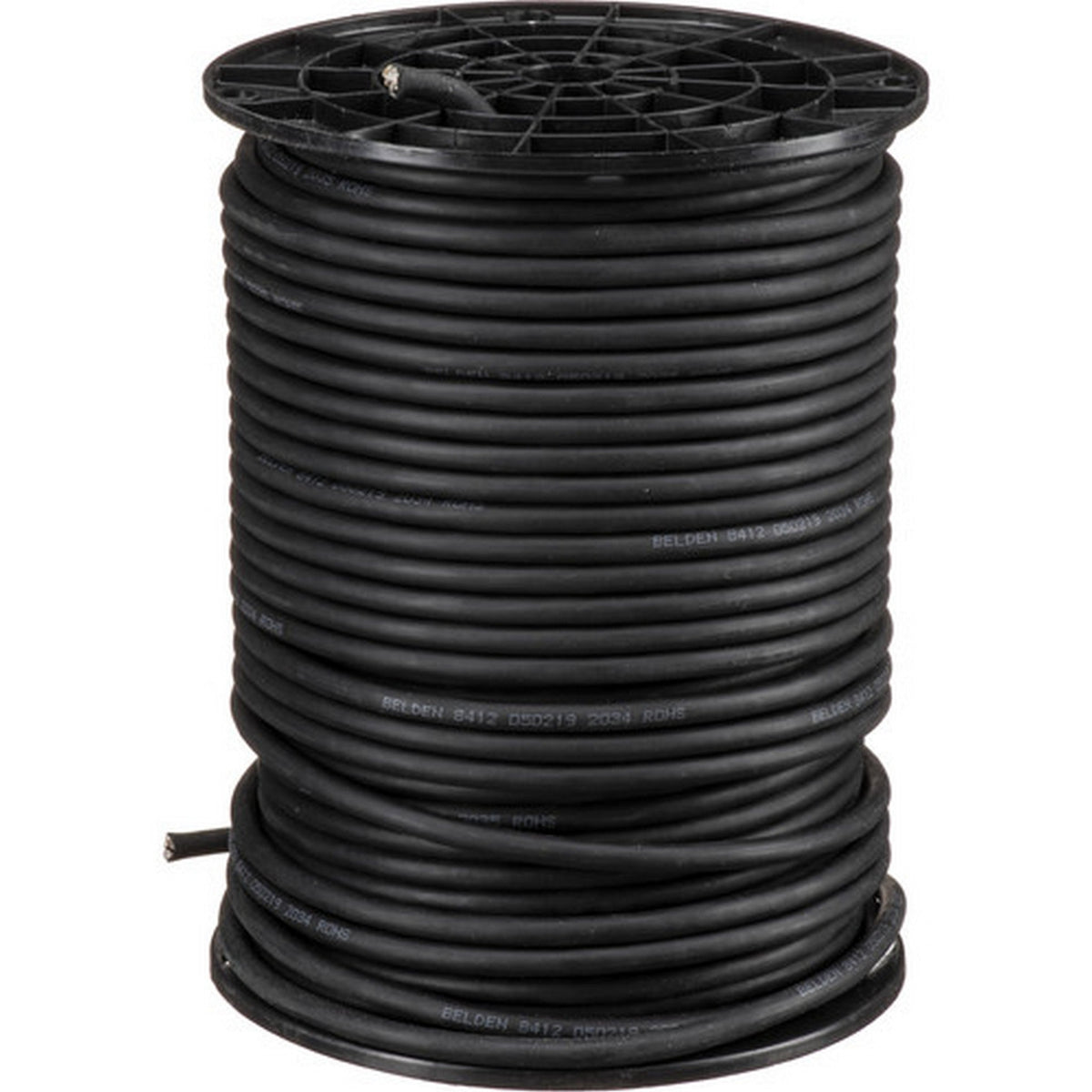

Belden 8412 Balanced Analog 20 AWG Microphone Cable, 250 Feet

Belden 8412 Balanced Analog 20 AWG Microphone Cable, 250 Feet

The Belden 8412 250' 20 AWG Balanced Analog Microphone Cable is rugged bulk cable for studio, live-performance, and professional balanced-audio wiring. This black 250-foot reel uses two high-conductivity tinned-copper conductors, flexible EPDM insulation and jacket materials, and dual braided shielding for dependable microphone and analog audio installations.

Each 20 AWG conductor uses 26 x 34 stranding to maintain flexibility for deployable applications. An 85% tinned-copper braid provides electrical shielding, while an additional 85% Rayon braid and cotton serve reinforce the cable construction. Bare unterminated ends allow integrators, studios, venues, and cable builders to install the connectors required by each application.

Belden specifies a nominal 0.262-inch overall diameter, 600V voltage rating, and operating range from -58 to 194°F. Electrical characteristics include 33 pF/ft conductor-to-conductor capacitance and 10.6 ohms/1000 ft conductor DC resistance. The 8412 is intended for indoor, non-riser and non-plenum use and carries CE, RoHS 2, WEEE, and China RoHS II compliance.

Key Features

• 250-Foot Bulk Reel: Provides a continuous length for custom microphone cables, studio wiring, stage deployment, and balanced analog audio installations.
• Two 20 AWG Conductors: High-conductivity tinned copper supports reliable signal transmission with flexible 26 x 34 stranding.
• Dual Braid Construction: Combines an 85% tinned-copper shield with an 85% Rayon braid for shielding and mechanical reinforcement.
• EPDM Construction: EPDM conductor insulation and outer jacket suit ruggedized, frequently handled professional audio applications.
• Low Capacitance: Nominal 33 pF/ft conductor-to-conductor capacitance supports balanced analog microphone and line-level signal runs.
• Flexible Installation: A 2.6-inch minimum bend radius and 100 lb maximum pulling tension accommodate deployable and permanent wiring projects.
• Unterminated Design: Bare cable ends let installers select and solder the appropriate professional audio connectors for each system.

Technical Specifications

• Brand: Belden
• Product Number: 8412
• Item Number: 8412 010250
• Product Type: Balanced analog microphone cable
• Cable Length: 250 ft
• Put-Up Type: Reel
• Color: Black
• Number of Conductors: 2
• Conductor Size: 20 AWG
• Conductor Stranding: 26 x 34
• Conductor Material: High-conductivity tinned copper
• Conductor Insulation: EPDM
• Nominal Insulation Thickness: 0.023 inches
• Nominal Insulated Conductor Diameter: 0.083 inches
• Conductor Color Code: White, black
• Rayon Braid Coverage: 85%
• Tinned-Copper Braid Shield Coverage: 85%
• Separator: Cotton serve
• Outer Jacket Material: EPDM
• Nominal Jacket Thickness: 0.035 inches
• Nominal Overall Cable Diameter: 0.262 inches
• Nominal Conductor DC Resistance: 10.6 ohms/1000 ft
• Nominal Shield DC Resistance: 4.5 ohms/1000 ft
• Nominal Conductor-to-Conductor Capacitance: 33 pF/ft
• Nominal Conductor-to-Other Capacitance: 58 pF/ft
• Nominal Characteristic Impedance: 67 ohms
• Nominal Inductance: 0.18 µH/ft
• Maximum Current: 4A per conductor at 77°F
• Voltage Rating: 600V
• Operating Temperature: -58 to 194°F
• Minimum Stationary Bend Radius: 2.6 inches
• Minimum Installation Bend Radius: 2.6 inches
• Maximum Pull Tension: 100 lb
• Bulk Cable Weight: 44 lb/1000 ft
• Environmental Suitability: Indoor, not riser or plenum rated
• Compliance: EU CE Mark, RoHS 2, WEEE, China RoHS II
• Package Weight: 11.8 lb
• Package Dimensions (L x W x H): 9.2 x 6.8 x 6.8 inches

What's In the Box

• Belden 8412 250' Balanced 2-Conductor Analog Microphone Cable, Black
• Limited 10-year manufacturer warranty
