In stock
SKU: BDLKULSR4K2RP
RhythmVault

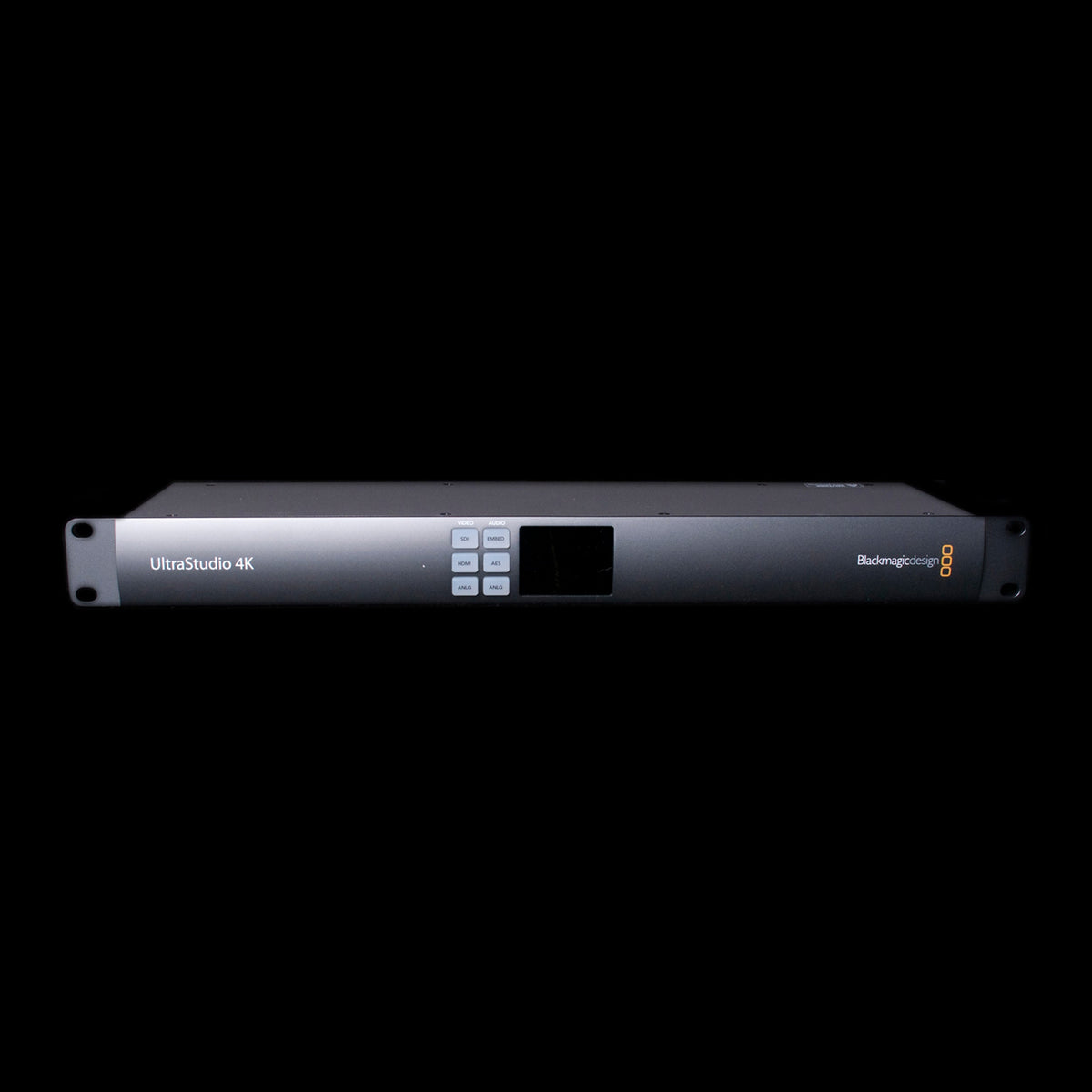

Blackmagic Design Ultrastudio 4K Thunderbolt 2 Repack (BDLKULSR4K2BLACKMAGICDESIGN)
$598.50
Why you need the Blackmagic Design Ultrastudio 4K Thunderbolt 2The BlackMagic Design UltraStudio 4K Thunderbolt 2 is an external 1RU/table-top I/O device with two 20Gb/s Thunderbolt ports. It captures DCI 4K 4:2:2 or UHD 4K YUV 4:2:2 by single-link 6G-SDI up to...
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product
PRODUCT DETAILS
Everything you need to know.
Why you need the Blackmagic Design Ultrastudio 4K Thunderbolt 2
The BlackMagic Design UltraStudio 4K Thunderbolt 2 is an external 1RU/table-top I/O device with two 20Gb/s Thunderbolt ports. It captures DCI 4K 4:2:2 or UHD 4K YUV 4:2:2 by single-link 6G-SDI up to 30p and by dual-link 6G-SDI from 50p to 60p; 1080p RGB 4:4:4 by single-link 3G-SDI; 1080p 4:2:2 by single-link HD-SDI; 1080p 4:4:4 by dual-link HD-SDI; and DCI/UHD 4K 4:2:2 by HDMI. 4K can be input/output compressed and uncompressed. The SDI inputs also support dual-channel 2D/3D stereoscopic workflows. UltraStudio 4K is capable of hardware-based HD down/up/cross conversion. The other connections are Component and Composite on BNC, 2-channel analog audio on XLR, 2-channel AES/EBU audio on BNC, timecode input and output on XLR, Blackburst and Tri-Sync and RS-422 deck control. A color LCD and six quick-access video and audio input buttons are built in on the front panel.
Specifications
- 1RU Rack Mount & Table-Top I/O Device
- 2x 20Gb/s Thunderbolt 2 Ports
- DCI/UHD 4K 4:2:2 Up to 30p by 1x 6G-SDI
- DCI/UHD 4K 4:2:2 50p-60p by 2x 6G-SDI
- DCI/UHD 4K 4:2:2 by HDMI
- 1080p RGB 4:4:4 by Single-Link 3G-SDI
- 1080p 4:2:2 by Single-Link HD-SDI
- 1080p 4:4:4 by Dual-Link HD-SDI
- Dual Channel 2D/3D Stereoscopic by SDI
- HD Up/Down/Cross Conversion
