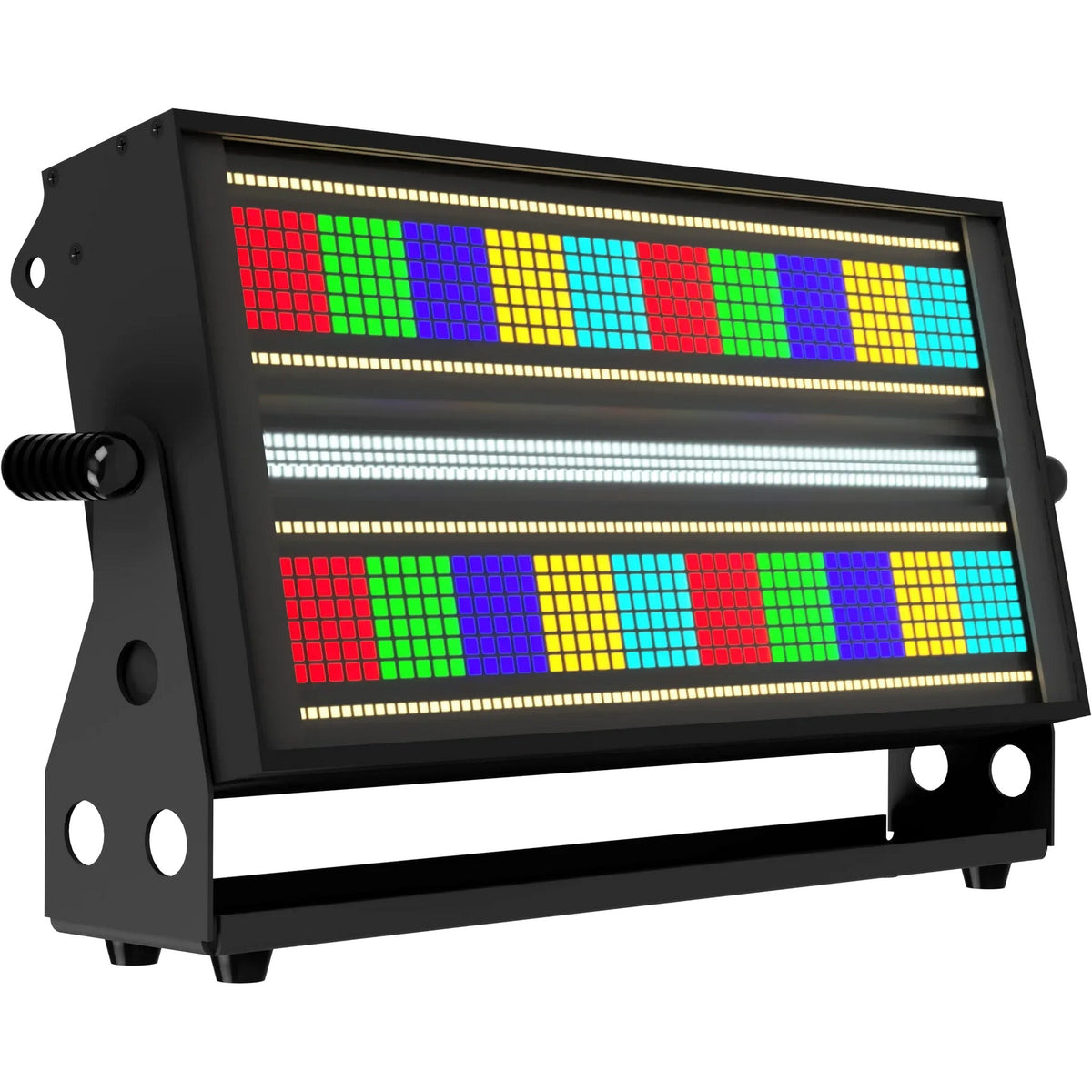

Blizzard Lighting InfiniPix Big Blind Full Color with Cool/Warm White LED Blinder and Strobe
Blizzard Lighting InfiniPix Big Blind Full Color with Cool/Warm White LED Blinder and Strobe The InfiniPix™ Big Blind is a high-output LED blinder and strobe fixture designed for bold visual impact and multicolor lighting effects. Combining RGB, cool white, and warm white...
PRODUCT DETAILS
Everything you need to know.
Blizzard Lighting InfiniPix Big Blind Full Color with Cool/Warm White LED Blinder and Strobe
The InfiniPix™ Big Blind is a high-output LED blinder and strobe fixture designed for bold visual impact and multicolor lighting effects. Combining RGB, cool white, and warm white LED arrays, it delivers powerful audience-facing output for concerts, stages, and production environments.
This fixture integrates multiple LED types behind a clear front lens, while the central cool white rows project through a secondary convex cylindrical lens for a tighter, more focused white beam. The result is a versatile lighting tool capable of delivering classic blinder looks alongside modern pixel-mapped effects.
Built for professional control and durability, the InfiniPix™ Big Blind supports extensive DMX channel modes, onboard programs, sound-active operation, and rugged housing for touring and installed applications. Clamp-mount and freestanding configurations allow flexible deployment in a wide range of setups.
Key Features
- Multicolor Blinder Effects: Combines RGB, cool white, and warm white LED arrays.
- High-Density LED Engine: Multiple LED zones for advanced pixel mapping.
- Focused White Output: Central cool white rows with convex cylindrical lens.
- Extensive Control Options: Multiple DMX modes with built-in programs.
- Tour-Ready Construction: Rugged metal housing with clamp-mount design.
Technical Specifications
Light Sources600 x RGB 5050 SMD 3-in-1 LEDs
240 x CW (6200K) 5730 SMD LEDs
320 x CW+WW (2900K/5600K) 3030 SMD LEDs
Beam Angle
68°
Field Angle
120°
Dimming
Smooth 0–100% electronic dimming
Strobe
1–20 Hz strobe effects
Control Protocols
USITT DMX-512, RDM
DMX Channel Modes
7 / 14 / 21 / 50-channel modes
Operating Modes
M/S, Auto, Sound-Active
Control Interface
4-button OLED control panel menu
Power Requirements
100–240VAC, 50–60 Hz
Power Consumption
385W, 3.41A, PF: 0.99
Power Connections
PowerCON® TRUE1-compatible AC input/output
Data Connections
5-pin DMX input/output
Dimensions
18.6 x 4.3 x 10 in (472 x 110 x 254.2 mm)
Weight
15.2 lbs. (6.9 kg)
