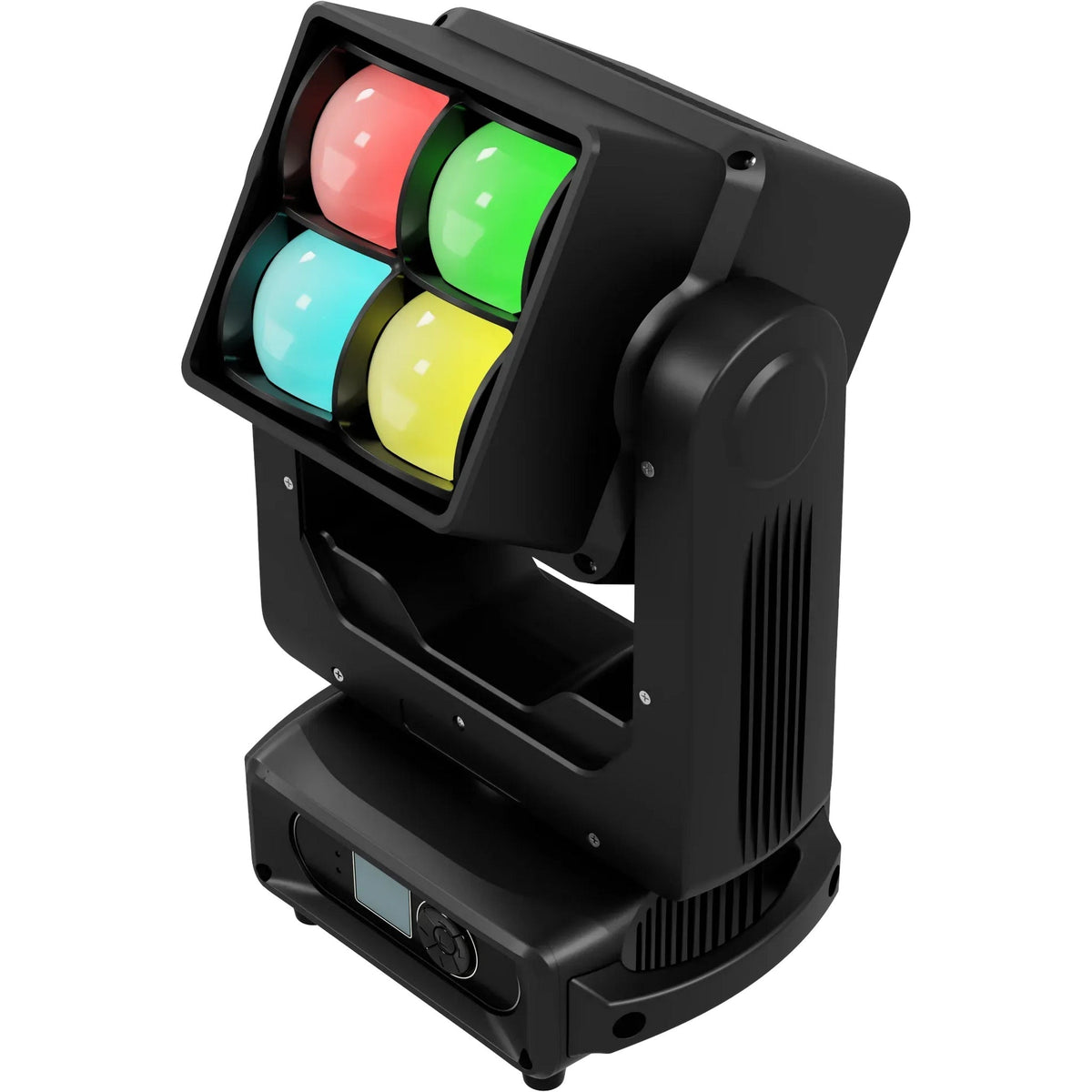

Blizzard Lighting Switchblade Flip Dual-Faced RGBW Hybrid Moving Head with Infinite Pan and Tilt

Blizzard Lighting Switchblade Flip Dual-Faced RGBW Hybrid Moving Head with Infinite Pan and Tilt

The Blizzard Lighting Switchblade™ Flip is a dual-faced hybrid moving head engineered for dynamic beam, wash, and pixel effects with unlimited creative motion. Featuring infinite pan and tilt, this fixture delivers continuous movement and high-impact visual output for stage, club, and production environments.

One side of the fixture features four 60W RGBW 4-in-1 LEDs with a 2.5°–28° motorized zoom, capable of producing tight aerial beams or wide wash effects. The reverse side combines 9 x 10W cool white LEDs with 3.5° beams and a high-density RGB pixel array consisting of 108 x 0.5W RGB and 96 x 3W cool white SMD LEDs, delivering striking strobe and pixel-mapped effects.

Designed for versatility and control, the Switchblade™ Flip supports multiple DMX channel modes, built-in programs, adjustable speed and strobe effects, and full integration via DMX-512, RDM, and PowerCON® TRUE1-compatible power connections. Its rugged housing and intuitive LCD menu system make it a reliable solution for professional lighting designers.

Key Features

• Dual-Faced Hybrid Design: Beam, wash, and pixel effects in a single moving head fixture.
• High-Power LED Arrays: 4 x 60W RGBW LEDs and advanced CW/RGB pixel engine.
• Infinite Motion: Continuous pan and tilt for unlimited movement and visual impact.
• Pixel-Mapped Effects: Independently controllable front and rear beam arrays.
• Professional Control: Multiple DMX modes with onboard LCD control panel.

Technical Specifications

Light Sources
4 x 60W RGBW 4-in-1 LEDs (2.5°–28° zoom)
9 x 10W Cool White LEDs (3.5° beam, CCT: 10,000K)
108 x 0.5W RGB SMD LEDs
96 x 3W Cool White SMD LEDs (CCT: 10,000K)

Beam Angles
RGBW Zoom: 2.5°–28°
Cool White Beams: 3.5°

Pan / Tilt
Pan: 540° / Tilt: 270° (8-bit or 16-bit resolution)
Infinite pan and tilt movement

Strobe
0–30 Hz Linear Strobe Effects

Effects
Pixel-mapped front and rear beams
Built-in programs with speed and background control

Control Protocols
USITT DMX-512, RDM

DMX Channel Modes
20 / 34 / 93-channel modes

Operating Modes
DMX-512, M/S, Auto, Sound-Active

Control Interface
5-button LCD control panel menu

Power Requirements
100–240VAC, 50–60 Hz

Power Consumption
370W, 3.26A, PF: 0.99

Power Connections
PowerCON® TRUE1-compatible input/output

Dimensions
11.4 x 7.8 x 19.4 in (289 x 198 x 493.7 mm)

Weight
22.8 lbs. (10.4 kg)
