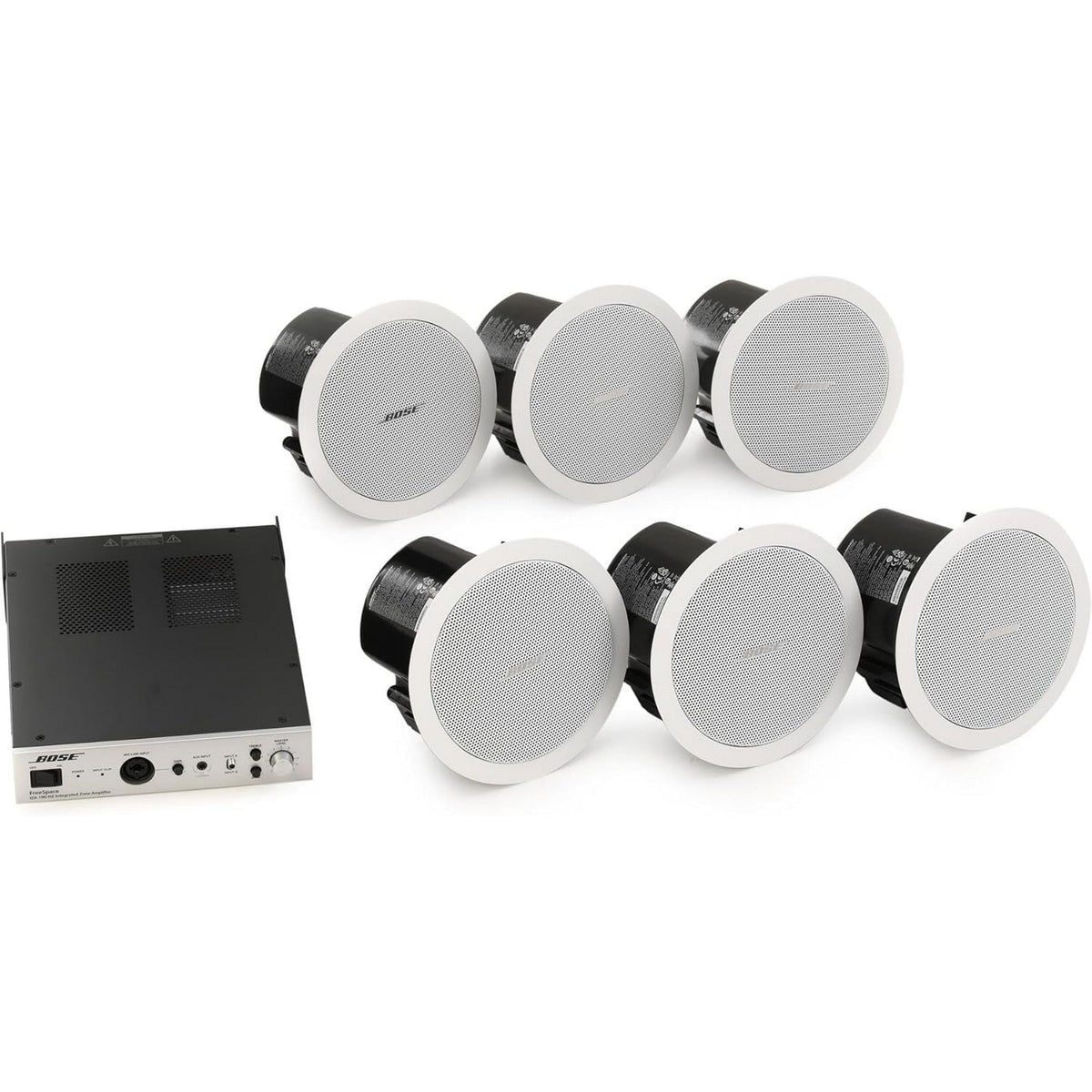

Bose 888472-1210 AudioPack Pro C6W In-Ceiling Audio System

Bose 888472-1210 AudioPack Pro C6W In-Ceiling Audio System

The AudioPack Pro C6W by Bose Professional delivers signature background music and paging solutions in a single, ready-to-install package. It combines six FreeSpace FS2C in-ceiling loudspeakers with the FreeSpace IZA 190-HZ integrated zone amplifier—perfectly matched to elevate the customer experience with premium sound quality and reliable performance.

Designed for commercial spaces, this system offers exceptional durability, clean aesthetics, and ease of installation. The low-profile grilles blend seamlessly into drop-tile ceilings, while the amplifier’s compact half-rack design saves valuable rack space. Whether you’re outfitting a café, retail store, office, or restaurant, the AudioPack Pro C6W simplifies deployment without compromising on audio fidelity.

Key Features

• Loudspeakers: Six FreeSpace FS2C in-ceiling transducers with perforated steel grilles and removable logos
• Amplifier: FreeSpace IZA 190-HZ integrated zone amplifier, 90 W per channel (70 V/100 V) with Class D efficiency
• Installation: 6.3 " (160 mm) ceiling cutout; mounting arms and safety-cable attachment points included
• Aesthetic: Low-profile white finish, paintable grille, rotatable/removable logo for unbranded appearance
• Durability: Indoor-only, plenum-rated backcan; high-temperature and short-circuit protection
• Ease of Use: Front-panel controls for input selection, master level, bass, treble, and paging; QR-code installer guide
• Expandability: Built-in DSP with loudspeaker EQ presets and Opti-Voice paging; additional FreeSpace speakers supported

Technical Specifications

• General
  • Product Name: Bose AudioPack Pro C6W In-Ceiling Audio System
  • Model Number: 888472-1210
  • Product Type: In-ceiling audio system
  • Configuration: Packaged system with speakers and amplifier
  • Application: Commercial distributed audio
  • Warranty: 5 years
• System Components
  • Speakers: In-ceiling loudspeakers
  • Amplifier: Included power amplifier with DSP
• Performance
  • Frequency Response: 60 Hz – 20 kHz (–3 dB) at 1 W, 1 kHz reference
  • Dynamic Range: 88 dB
  • Channel Separation: ≤ –60 dBV below rated power, 1 kHz
• DSP / Processing
  • DSP: 48 kHz / 24-bit converters
  • Latency: 10.4 ms
  • Speaker Presets: Optimized presets for Bose FS series speakers
• Electrical / Connectivity
  • Input Connectors: (1) RCA stereo, (1) XLR-1/4" combo, (1) 4-pin Euroblock, (1) 3.5 mm TRS
  • Output Connector: 3-pin inverted Euroblock + RCA pair
  • System Compatibility: 70V / 100V distributed audio systems
• Power
  • Power Consumption: 15 W (idle), 200 W (maximum)
  • Inrush Current: 7.6 A @ 120 V, 13.9 A @ 230 V
• Installation
  • Mounting Type: In-ceiling installation
  • System Type: Distributed audio system
  • Use Case: Background music and voice
• Compliance
  • Certifications: EN 54-24 (fire safety)

Installation / Use Cases

• Retail stores and commercial environments
• Restaurants and hospitality spaces
• Office and corporate installations
• Background music systems
• Paging and voice distribution systems

What's Included

• 6 × FreeSpace FS2C in-ceiling loudspeakers with tile bridges
• 1 × FreeSpace IZA 190-HZ integrated zone amplifier
• Mounting arms and safety cable attachments
• Paintable grilles and removable logos
• QR-code link to installer step-by-step guide
