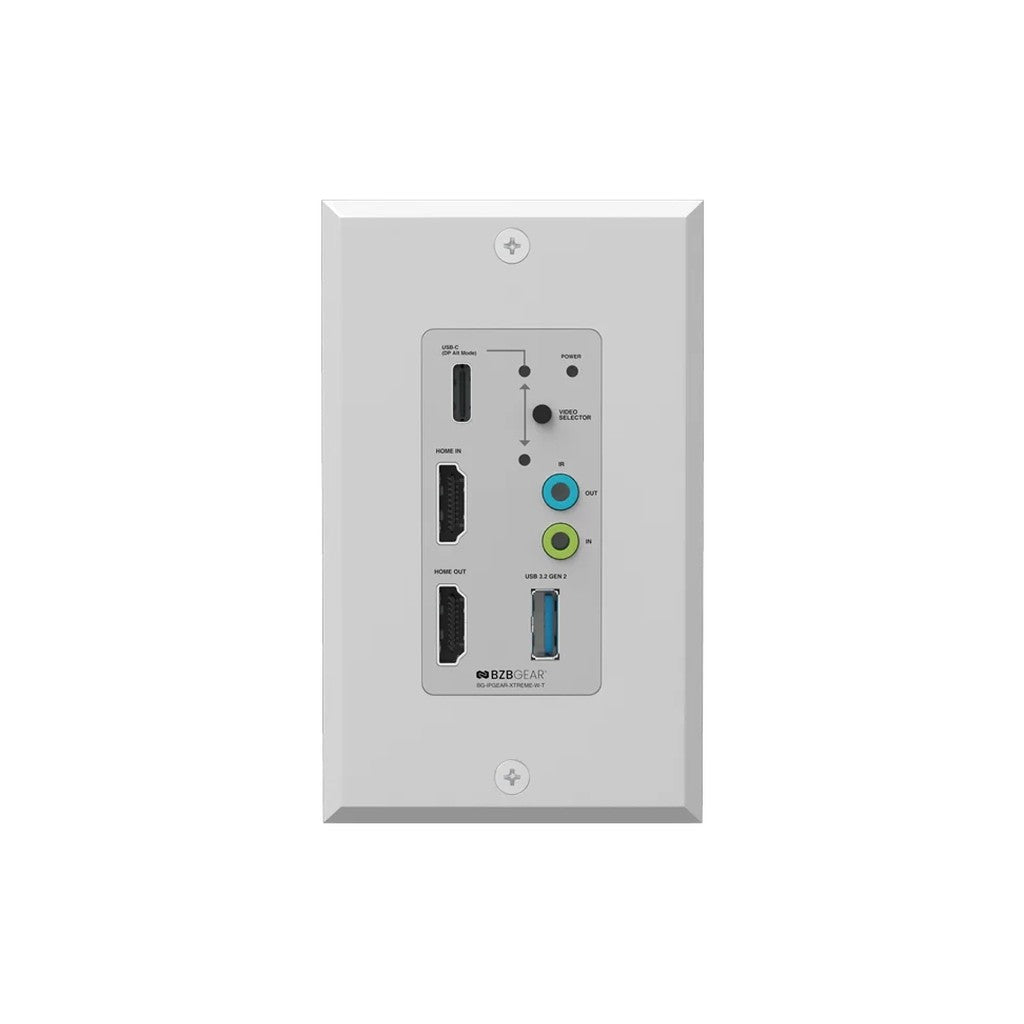

BZBGEAR BG-IPGEAR-XTREME-W HDMI 2.1 Wall Plate Extender

BZBGEAR BG-IPGEAR-XTREME-W HDMI 2.1 Wall Plate Extender

The BZBGEAR BG-IPGEAR-XTREME-W HDMI 2.1 wall plate extender is a 4K UHD AV-over-IP encoder/decoder platform with transmitter and receiver variants. It extends 4K@120Hz 4:4:4 video, high-fidelity audio, USB KVM, control, and PoE-supported network transport through a clean in-wall form factor.

Designed for professional AV installations, this 4K HDMI over IP wall plate supports point-to-point, point-to-multipoint, and multicast distribution over a 1 Gigabit network. It is ideal for buyers building a seamless matrix switching system, specifying AV over IP for conference rooms, or deploying low-latency KVM extension in education, healthcare, gaming, digital signage, and corporate environments.

The BG-IPGEAR-XTREME-W series includes transmitter and receiver configurations for flexible endpoint design. It supports HDMI 2.1, HDCP 2.3, HDR, VRR, ALLM, eARC/ARC, USB-C with DisplayPort 1.4 Alt Mode, USB 3.1, bi-directional IR, RS-232, CEC bypass, EDID management, IGMP Snooping, and 802.1Q VLAN network integration.

4K HDMI 2.1 AV Over IP Wall Plate Features

• Transmitter And Receiver Variants: Available as encoder and decoder wall plate models for source-side and display-side AV-over-IP endpoints.
• 4K@120Hz 4:4:4 Video: Delivers high-refresh-rate Ultra HD video with full chroma detail for premium visual performance.
• HDMI 2.1 And HDCP 2.3: Supports modern source and display workflows with up to 40Gbps FRL 5 bandwidth.
• Extended AV Transmission: Sends uncompressed video and 7.1-channel audio up to 330 feet over Cat.5e cable.
• Advanced Multiview Processing: Supports PiP, PbP, PoP with chroma key, and custom scaling for optimized display layouts.
• USB KVM Support: Extends keyboards, mice, touch displays, USB storage, and UVC webcams using high-speed USB connectivity.
• Integrated Control: Provides bi-directional IR, RS-232, CEC bypass, EDID management, VLAN configuration, and network-based firmware updates.
• PoE Wall Plate Design: Uses Power over Ethernet for streamlined installation with fewer local power requirements.

Technical Specifications

• Product Series: BG-IPGEAR-XTREME-W
• Variant Models: BG-IPGEAR-XTREME-W-T transmitter and BG-IPGEAR-XTREME-W-R receiver
• Device Type: HDMI 2.1 over IP multicast wall plate encoder/decoder
• Network Type: 1 Gigabit Ethernet AV-over-IP multicast
• Maximum Video Resolution: 4K@120Hz 4:4:4
• Video Bandwidth: Up to 40Gbps, FRL 5
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• HDR Support: HDR, HDR10, HDR10+, and Dolby Vision
• Interactive Video Support: VRR and ALLM
• Audio Support: High-fidelity audio and 7.1-channel audio
• Advanced Audio Support: eARC and ARC
• Transmission Distance: Up to 330 ft over Cat.5e cable
• Supported Cabling: Cat.5e, Cat.6, Cat.6a, and Cat.7
• Video Modes: Seamless switching, PiP, PbP, PoP with chroma key, and custom scaling
• KVM Support: USB keyboard, mouse, touch display, USB storage, and UVC webcam extension
• USB Support: USB 3.1 Gen1 and Gen2
• Additional Source Connectivity: USB-C with DisplayPort 1.4 Alt Mode, HDMI, and DisplayPort input support
• Control Support: Bi-directional IR, RS-232, CEC bypass, and EDID management
• Network Management: IGMP Snooping and 802.1Q VLAN support
• Power Support: PoE
• Construction: Compact metal wall plate enclosure
• Protection: ESD protection
• Software Support: BZBGEAR control software for system management and firmware updates
• Compliance: TAA compliant
• Warranty: 5-year warranty
