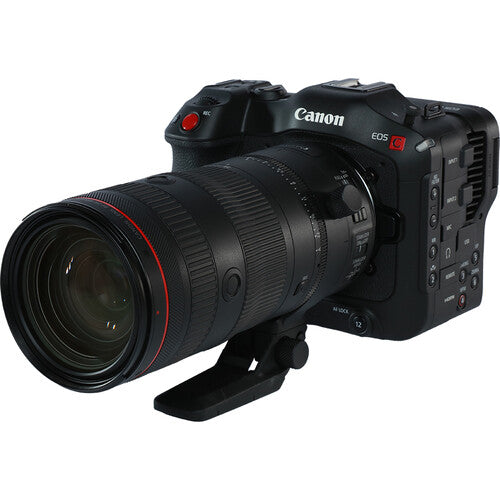

Canon EOS C70 4K Cinema Camera Kit with RF 24-105mm f/2.8 Lens

Canon EOS C70 4K Cinema Camera Kit with RF 24-105mm f/2.8 Lens

The Canon EOS C70 4K Cinema Camera Kit pairs a compact RF-mount Super 35mm cinema camera with the RF 24-105mm f/2.8 L IS USM Z lens. It records 4K video with 16+ stops of dynamic range, professional audio connections, internal ND filters, and flexible high-frame-rate options.

This cinema camera and lens kit supports documentary, commercial, corporate, event, and narrative production without requiring frequent lens changes. The constant f/2.8 zoom covers wide establishing shots, standard perspectives, and tighter portraits. Its handheld-friendly camera body, articulating touchscreen, Dual Pixel CMOS AF, and optical lens stabilization suit solo operators, compact crews, and mobile location shoots.

The EOS C70 records 12-bit Cinema RAW Light internally and supports XF-AVC, H.265, and H.264 workflows on dual UHS-II SD cards. Canon Log 2, Canon Log 3, HLG, PQ, and user-imported LUT support provide practical options for color-managed production. Built-in timecode, mini-XLR inputs, HDMI output, and remote-control compatibility help the camera integrate into professional multicamera and studio environments.

Key Features

• Super 35mm DGO Sensor: Combines dual gain readings to preserve highlight detail, control shadow noise, and deliver more than 16 stops of dynamic range.
• 4K High-Frame-Rate Recording: Captures up to 120 fps in 4K and up to 180 fps in cropped 2K for detailed slow-motion sequences.
• Internal Cinema RAW Light: Records 12-bit RAW HQ, RAW ST, or RAW LT files to compatible SD media for flexible post-production.
• Dual Pixel CMOS AF: Provides continuous autofocus, face detection, subject tracking, touch focus, and assisted manual focusing with compatible lenses.
• Built-In ND Filter System: Selects 2, 4, or 6 stops of neutral density, with 8- and 10-stop settings available in extended mode.
• Professional Audio and Timecode: Includes two mini-XLR inputs with phantom power, a 3.5mm microphone input, headphone monitoring, and BNC timecode input and output.
• RF 24-105mm f/2.8 L Lens: Maintains a constant f/2.8 aperture across a versatile zoom range with dual Nano USM autofocus motors.
• Optical Image Stabilization: The included lens provides up to 5.5 stops of optical correction for steadier handheld and mobile camera work.

Technical Specifications

Camera Imaging System

• Camera Model: Canon EOS C70
• Lens Mount: Canon RF
• Image Sensor: Super 35mm Dual Gain Output CMOS
• Sensor Modes: Super 35mm and cropped Super 16mm
• Effective Resolution: Approximately 8.85 megapixels at 4096 x 2160 or approximately 8.29 megapixels at 3840 x 2160
• Total Resolution: Approximately 9.6 megapixels, 4206 x 2280
• Sensor Size: 1 x 0.5" at 4096 x 2160; 1 x 0.5" at 3840 x 2160
• Pixel Pitch: 6.4 micrometers
• Scanning System: Progressive
• Image Processor: DIGIC DV7
• Dynamic Range: Canon Log 2 at 16+ stops; Canon Log 3 at 14 stops
• Image Stabilization: Electronic 5-axis stabilization with coordinated optical and electronic stabilization support
• Anamorphic Support: 1.3x and 2x

Recording and Media

• Internal Recording Media: Two SD, SDHC, or SDXC card slots with UHS-II support
• Recommended Media: V90 SD cards for access to all recording functions
• RAW Recording: 12-bit Cinema RAW Light in RAW HQ, RAW ST, and RAW LT modes
• XF-AVC Recording: MXF with All-I or Long GOP compression and 4:2:2 10-bit sampling
• HEVC Recording: MP4 H.265 with 4:2:2 10-bit sampling
• H.264 Recording: MP4 H.264 with 4:2:0 8-bit sampling
• Maximum Standard Recording: DCI 4K or UHD 4K up to 59.94p or 60p, depending on system frequency
• Slow and Fast Motion: Up to 120 fps in 4K and up to 180 fps in cropped 2K
• System Frequencies: 59.94 Hz, 50 Hz, and 24 Hz
• Dual-Slot Functions: Relay recording, simultaneous recording, proxy recording, and mixed-format recording
• Special Recording Modes: Pre-record, frame recording, and interval recording
• Color Gamuts: Cinema Gamut, BT.709, and BT.2020
• Gamma Options: Canon Log 2, Canon Log 3, Wide DR, Canon 709, HLG, and PQ
• User LUT Support: Compatible with 17-grid and 33-grid .cube files

Exposure, Focus, and Monitoring

• ISO Range: ISO 100 to 102400 with expansion enabled
• Gain Range: -6 to 54 dB; fine adjustment from -2 to 54 dB in 0.5 dB increments
• Shutter Modes: Off, speed, angle, slow shutter, and Clear Scan
• Shutter Speed: 1/12 to 1/2000 second at 59.94 or 24 Hz; 1/15 to 1/2000 second at 50 Hz
• Shutter Angle: 11.25 to 360 degrees
• ND Filters: Clear, 2, 4, and 6 stops; 8 and 10 stops in extended mode
• Autofocus System: Dual Pixel CMOS AF with EOS iTR AF X and contrast detection
• Focus Modes: Manual, continuous AF, One-Shot AF, AF-Boosted MF, face detection, and subject tracking
• LCD Monitor: 3.5" articulating touchscreen
• LCD Resolution: Approximately 2.76 million dots, 1280 x 720 RGB
• Monitoring Tools: Waveform, false color, peaking, zebras, markers, color bars, and vertical interface display
• Assignable Controls: 13 numbered assignable buttons with more than 80 selectable functions
• Built-In Viewfinder: None

Audio and Connectivity

• Audio Inputs: Two 3-pin mini-XLR mic or line inputs with 48V phantom power and one 3.5mm stereo microphone input
• Built-In Microphones: Stereo microphones
• Headphone Output: 3.5mm stereo mini jack
• Audio Recording: Up to four-channel, 24-bit, 48 kHz Linear PCM with Cinema RAW Light or XF-AVC
• Video Output: Full-size Type A HDMI with up to 4:2:2 10-bit output
• Timecode: BNC input and output
• USB: USB-C with USB 3.2 Gen 1 support
• Remote Terminal: 2.5mm LANC-compatible Remote A connection
• Network Functions: IP streaming, FTP transfer, browser control, XC Protocol, and multicamera control with compatible adapters
• Wireless Connectivity: Available through a compatible USB Wi-Fi adapter

Camera Power and Physical Specifications

• Battery System: Canon BP-A series
• Included Battery: BP-A30
• External Power: 24V DC through the included CA-CP200L adapter
• Maximum Power Consumption: Approximately 14.6W
• Camera Dimensions: 5.1 x 6.3 x 4.6" W x H x D, body only
• Camera Weight: Approximately 2.6 lb, body only
• Operating Temperature: Approximately 23 to 113 degrees Fahrenheit under specified humidity conditions

RF 24-105mm f/2.8 L IS USM Z Lens

• Focal Length: 24-105mm
• Aperture Range: f/2.8 to f/22
• Lens Mount: Canon RF
• Optical Construction: 23 elements in 18 groups
• Special Elements: Four UD elements and three aspherical elements
• Lens Coatings: Super Spectra, Air Sphere, and fluorine coatings
• Aperture Blades: 11
• Minimum Focusing Distance: 1.48' throughout the zoom range
• Maximum Magnification: 0.08x at 24mm and 0.29x at 105mm
• Diagonal Angle of View: Approximately 84 to 23 degrees 20 minutes
• Filter Diameter: 82mm
• Autofocus Motors: Dual Nano USM
• Manual Focus: Full-time electronic manual focusing
• Focus Limiter: Full range or 3.3' to infinity
• Optical Stabilization: Up to 5.5 stops
• Zoom Design: Internal zoom and internal focus
• Power Zoom Compatibility: Supports the separately available PZ-E2 and PZ-E2B adapters
• Construction: Dust- and weather-resistant design
• Lens Dimensions: 3.5" maximum diameter x 7.8" long
• Lens Weight: Approximately 2.9 lb

What's In the Box

• Canon EOS C70 Cinema Camera
• Canon RF 24-105mm f/2.8 L IS USM Z Lens
• Canon BP-A30 Battery Pack
• Canon CG-A20 Battery Charger
• Canon CA-CP200L Compact Power Adapter
• AC Power Cable
• Detachable Handle Unit
• Microphone Holder and Mounting Screws
• Camera Body Cap
• Canon SS-1200 Shoulder Strap
• Tape Measure Hook
• Shoe Mount Bracket
• Canon EW-88E Lens Hood
• Canon E-82 II Lens Cap
• Canon RF Lens Dust Cap
• Canon LZ1326B Lens Case
• Built-In Tripod Mount Ring
