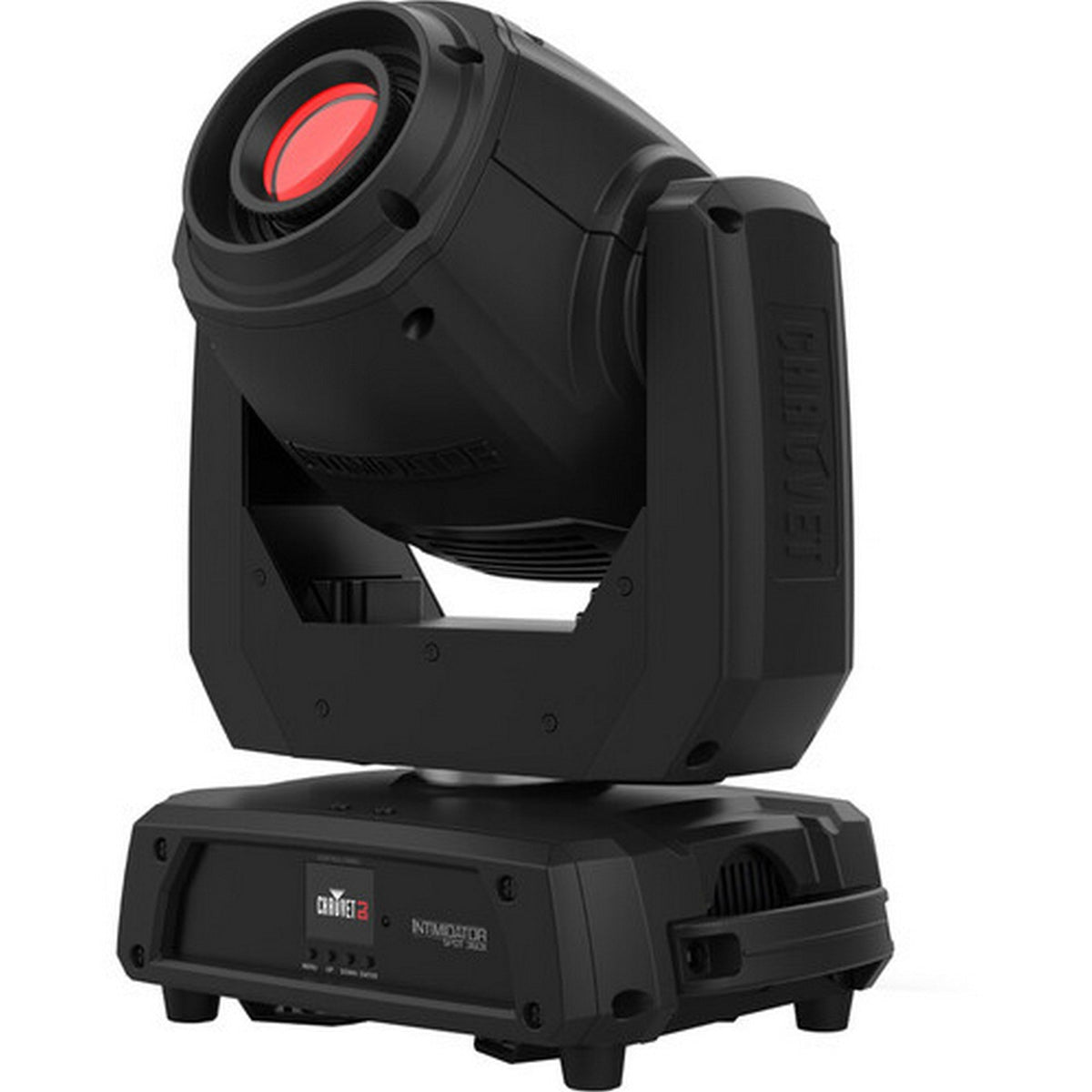

CHAUVET DJ Intimidator Spot 360QD 220W RGBL LED Moving Head Spot

CHAUVET DJ Intimidator Spot 360QD 220W RGBL LED Moving Head Spot

The CHAUVET DJ Intimidator Spot 360QD is a professional LED moving head spotlight designed for mobile DJs, live entertainment, and permanent lighting installations. Featuring a 220W RGBL light engine, dual rotating prisms, seven interchangeable gobos, and wireless DMX control, this fixture delivers 4,474 lumens with a focused 17-degree beam angle.

Built for mobile entertainers, production companies, nightclubs, and performance venues, the Intimidator Spot 360QD combines versatile color mixing with motorized movement and advanced beam effects. Its red, green, blue, and lime LED configuration expands the available color range while improving color rendering compared with conventional LED color systems. Dual independently rotating prisms create overlapping beam patterns, while motorized focus keeps projected gobos sharp across different distances. With 540-degree pan and 270-degree tilt capabilities, operators can produce sweeping movement effects across stages, dance floors, and event spaces. Its carbon-fiber composite housing reduces fixture weight while providing strength and corrosion resistance for professional applications.

The Intimidator Spot 360QD incorporates a built-in D-Fi transceiver for wireless DMX communication and an RF receiver for operation with optional RFC or RFC-XL controllers. Both 3-pin and 5-pin XLR connections support integration with conventional DMX lighting systems. PowerCON-compatible input and output connections simplify multi-fixture power distribution, while an onboard USB-C port provides access for software updates. The fixture carries CE, RoHS, and MET approvals, supporting professional mobile use and permanent indoor lighting installations.

Key Features

• 220W RGBL LED Light Engine: Combines red, green, blue, and lime emitters for expanded color mixing and improved color rendering in entertainment lighting applications.
• 4,474-Lumen Output: Produces focused illumination through a 17-degree beam with 17,242 lux measured at 6.6 feet.
• Dual Rotating Prisms: Features separate 5-facet linear and 6-facet round prisms with bidirectional rotation for layered beam effects.
• Seven Interchangeable Gobos: Includes six metal patterns and one glass pattern, with indexing, rotation, and variable-speed scrolling.
• Built-In Wireless Control: Integrates a D-Fi transceiver for wireless DMX and master/slave communication, plus an RF receiver for compatible optional remotes.
• 540-Degree Pan and 270-Degree Tilt: Provides motorized movement with selectable ranges for different venue sizes and lighting configurations.
• Motorized Focus and Totem Mode: Maintains precise gobo projection while allowing movement to remain directed toward designated performance areas.
• Carbon-Fiber Composite Housing: Combines lightweight construction with PowerCON-compatible power linking and USB-C firmware update connectivity.

220W RGBL LED Color Mixing and Optical Performance

Quad-Color RGBL Lighting Technology

The Intimidator Spot 360QD features a single 220W quad-color RGBL LED incorporating red, green, blue, and lime color elements. Unlike traditional moving head fixtures that rely exclusively on mechanical color wheels, its RGBL engine produces different colors through electronic mixing.

The addition of lime expands the available color range and improves color rendering, making the fixture suitable for lighting performers, scenery, event environments, and architectural elements.

Its LED light source has a manufacturer-rated lifespan of 50,000 hours, supporting repeated operation in professional lighting applications.

Focused 17-Degree Beam Angle

The fixture produces a 17-degree beam designed for concentrated spotlight effects and defined gobo projections.

CHAUVET DJ specifies an output of 4,474 lumens, with measured illuminance of 17,242 lux at 6.6 feet and 2,759 lux at 16.4 feet.

This focused beam supports applications requiring visible lighting movement, projected patterns, and controlled illumination across entertainment spaces.

Motorized Focus for Gobo Projection

The integrated motorized focus system allows lighting operators to adjust projection sharpness without physically accessing the fixture.

This capability is useful when projecting gobos onto surfaces at different distances or adjusting effects during live performances. Motorized focusing also supports efficient programming when multiple moving heads operate together.

Dual Rotating Prisms and Interchangeable Gobos

5-Facet Linear Prism

The first prism creates a linear beam-splitting effect with five facets. Its variable-speed bidirectional rotation allows lighting operators to generate moving patterns and expanded beam effects.

Linear prism effects are particularly useful for dance floors, stage productions, and event environments requiring directional visual movement.

6-Facet Round Prism

The second prism features a six-facet circular design that divides the projected beam into multiple patterns.

Bidirectional rotation and adjustable speeds provide additional creative control. The two prism systems can produce different visual effects to complement the fixture's color mixing and gobo capabilities.

Seven Rotating and Interchangeable Gobos

The Intimidator Spot 360QD includes seven gobos plus an open position. The supplied collection consists of six metal gobos and one glass gobo.

The rotating gobo system supports indexing, continuous scrolling, and variable-speed operation. A slot-and-lock mechanism allows compatible gobos to be exchanged for customized lighting applications.

Each gobo has an outside diameter of approximately 0.9 inches and an image diameter of approximately 0.8 inches.

These capabilities make the fixture useful for projecting decorative patterns, dynamic visual textures, and other lighting effects during live events.

Professional Motorized Pan and Tilt Control

540-Degree Pan Movement

The fixture supports horizontal movement up to 540 degrees, allowing its beam to cover extensive areas without requiring manual repositioning.

Selectable pan ranges of 180, 360, and 540 degrees help lighting operators adapt movement patterns to different room sizes and installation requirements.

270-Degree Tilt Movement

Vertical movement extends to 270 degrees, providing flexibility for overhead installations, stage lighting, and floor-mounted configurations.

Selectable tilt ranges include 90, 180, and 270 degrees, allowing movement to be restricted when necessary.

Totem Mode

Totem Mode helps keep moving beams directed toward the performance area rather than allowing unrestricted movement throughout the venue.

This functionality is particularly useful for mobile DJs working in spaces where lighting effects need to remain concentrated on a dance floor or designated stage area.

Wireless DMX and RF Lighting Control

Built-In D-Fi Wireless DMX Transceiver

The integrated D-Fi transceiver supports wireless DMX communication with compatible equipment, reducing the need for dedicated DMX signal cables.

Wireless master/slave communication also allows supported fixtures to operate together in coordinated lighting configurations.

This functionality provides additional setup flexibility for mobile productions and installed lighting systems.

Wireless RF Remote Compatibility

The fixture incorporates an RF receiver designed for use with optional CHAUVET DJ RFC and RFC-XL wireless controllers.

These compatible accessories provide an alternative control method for supported lighting functions without requiring a conventional wired DMX connection.

The RFC and RFC-XL controllers are available separately.

3-Pin and 5-Pin DMX Connections

For traditional lighting control systems, the Intimidator Spot 360QD includes both 3-pin and 5-pin XLR DMX connections.

The fixture supports 11-channel and 18-channel DMX configurations, allowing integration into compatible lighting consoles and software-controlled production systems.

These control options accommodate applications ranging from straightforward moving head operation to more detailed programming of movement, color, gobos, and beam effects.

Lightweight Construction and Professional Installation

Carbon-Fiber Composite Housing

The fixture uses a carbon-fiber composite housing designed to provide structural strength while reducing overall weight.

At 20.4 pounds, the moving head accommodates mobile entertainment applications where transportation and handling are important considerations.

The housing material also provides corrosion resistance, supporting long-term use in suitable professional environments.

PowerCON-Compatible Power Linking

PowerCON-compatible input and output connections allow multiple fixtures to share a power connection.

The manufacturer specifies power linking for up to four fixtures at 120V or eight fixtures at 230V, subject to the appropriate electrical configuration.

An auto-ranging power supply accepts input voltages from 100V to 240V AC at 50/60Hz.

USB-C Software Update Connection

An onboard USB-C port provides a connection for supported fixture software updates.

This dedicated maintenance feature allows lighting technicians to access firmware update functionality without requiring a separate USB adapter.

Permanent Installation Capability

The Intimidator Spot 360QD carries MET certification and supports installation in professional indoor entertainment environments.

Included hanging brackets accommodate suitable overhead mounting hardware. Installers should use appropriately rated clamps and secondary safety cables when suspending the fixture.

Applications for DJs, Events, and Professional Lighting

Mobile DJ and Wedding Lighting

RGBL color mixing, wireless communication, and motorized beam effects provide flexible lighting options for mobile entertainers.

The compact housing and power linking capabilities support multi-fixture setups commonly used at wedding receptions, private events, and mobile DJ performances.

Nightclubs and Dance Floors

Dual rotating prisms, interchangeable gobos, and programmable movement create changing visual effects for dance floors and entertainment venues.

Totem Mode helps operators keep moving beams within designated areas, while wireless DMX provides additional installation flexibility.

Concerts and Live Stage Productions

The 220W RGBL light source provides customizable color output for live performances, stage scenery, and entertainment productions.

Motorized focus supports projected gobo patterns across varying distances, while DMX compatibility allows integration into programmed lighting sequences.

Permanent Entertainment Installations

The carbon-fiber composite housing, MET certification, dual DMX connector formats, and auto-ranging power supply support professional indoor installations.

These capabilities make the fixture suitable for entertainment venues and other applications requiring programmable moving head lighting.

Technical Specifications

• Manufacturer: CHAUVET DJ
• Model: Intimidator Spot 360QD
• Manufacturer SKU: INTIMSPOT360QD
• Product Series: Intimidator
• Product Type: RGBL LED Moving Head Spotlight
• Light Source: 1 x 220W Quad-Color RGBL LED
• LED Colors: Red, Green, Blue, Lime
• LED Current: 2.5A
• LED Life Expectancy: 50,000 Hours
• Luminous Output: 4,474 Lumens
• Beam Angle: 17 Degrees
• Illuminance at 6.6 ft: 17,242 Lux
• Illuminance at 16.4 ft: 2,759 Lux
• Focus: Motorized
• Gobo Count: 7 + Open
• Gobo Configuration: 6 Metal Gobos, 1 Glass Gobo
• Gobo Functions: Rotating, Interchangeable, Indexing, Slot-and-Lock, Continuous Variable-Speed Scrolling
• Gobo Outside Diameter: Approximately 0.9"
• Gobo Image Diameter: Approximately 0.8"
• Maximum Gobo Thickness: 0.02"
• Prism 1: 5-Facet Linear
• Prism 2: 6-Facet Round
• Prism Rotation: Bidirectional, Variable Speed
• Strobe Rate: 0-25 Hz
• Maximum Pan Movement: 540 Degrees
• Maximum Tilt Movement: 270 Degrees
• Selectable Pan Ranges: 180, 360, 540 Degrees
• Selectable Tilt Ranges: 90, 180, 270 Degrees
• Additional Movement Feature: Totem Mode
• DMX Channel Modes: 11 or 18 Channels
• DMX Connectors: 3-Pin and 5-Pin XLR
• Wireless DMX: Built-In D-Fi Transceiver
• Wireless Master/Slave Communication: Supported
• RF Receiver: Integrated
• Optional Wireless Controllers: CHAUVET DJ RFC, RFC-XL
• Software Update Connection: USB Type-C
• Power Supply: Auto-Ranging
• Input Voltage: 100-240V AC, 50/60Hz
• Power Consumption at 120V: 324W
• Operating Current at 120V: 2.7A, 60Hz
• Power Consumption at 230V: 322W
• Operating Current at 230V: 1.3A, 50Hz
• Power Linking at 120V: Up to 4 Fixtures
• Power Linking at 230V: Up to 8 Fixtures
• Power Connections: PowerCON-Compatible Input and Output
• Housing Material: Carbon-Fiber Composite
• Fixture Length: 12.5"
• Fixture Width: 8.6"
• Fixture Height: 17.1"
• Fixture Weight: 20.4 lb
• Maximum Operating Temperature: 104 Degrees F
• Operating Environment: Indoor Use
• Approvals: CE, RoHS, MET

What's In the Box

• CHAUVET DJ Intimidator Spot 360QD Moving Head Spotlight
• Power Cord
• Hanging Brackets
• Quick Reference Guide
