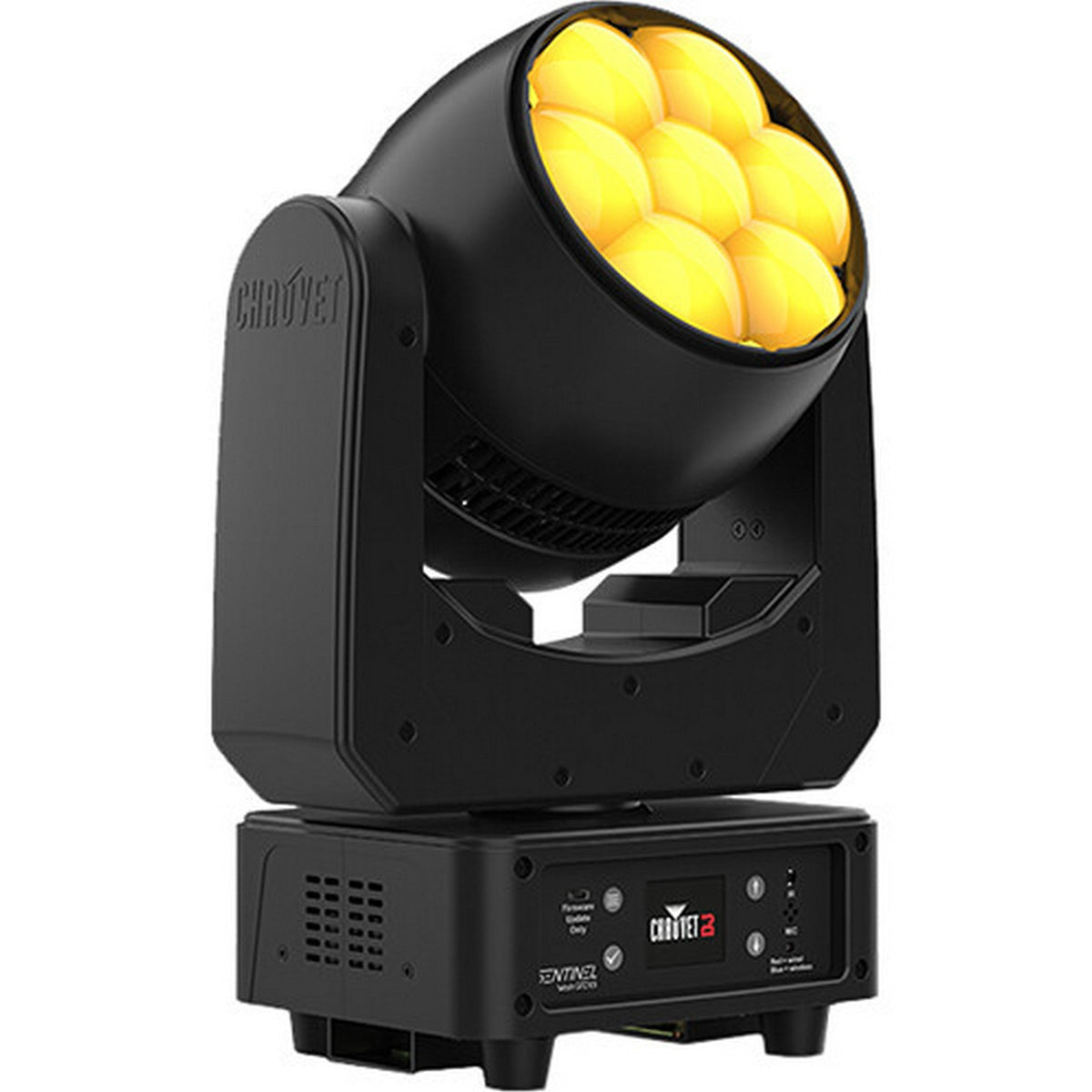

CHAUVET DJ Sentinel Wash Q7Z ILS 140W RGBW LED Moving Head Wash

CHAUVET DJ Sentinel Wash Q7Z ILS RGBW LED Moving Head Wash

The CHAUVET DJ Sentinel Wash Q7Z ILS LED moving head wash combines seven 20W RGBW LEDs, delivering 140W of total LED power with adjustable beam coverage. Designed for DJs, live performances, and event lighting, it features motorized zoom from 5 to 27 degrees, wireless D-Fi control, ILS compatibility, and programmable pan and tilt movement.

Built for mobile entertainers, event production companies, nightclubs, and professional lighting installations, the Sentinel Wash Q7Z ILS provides flexible illumination for stages, dance floors, and performance spaces. Its motorized zoom allows operators to transition between concentrated beams and wider color washes without repositioning the fixture. Seven quad-color LEDs produce customizable red, green, blue, and white combinations, supporting everything from subtle atmospheric lighting to energetic dance floor effects. With a maximum pan range of 540 degrees and tilt movement reaching 225 degrees, the fixture offers extensive positioning flexibility. Its compact construction also makes it practical for mobile DJ lighting systems and multi-fixture stage installations.

The Sentinel Wash Q7Z ILS integrates CHAUVET DJ's Integrated Lighting System (ILS) technology, enabling coordinated effects with compatible fixtures and controllers. A built-in D-Fi transceiver supports wireless DMX and ILS communication, while conventional 3-pin XLR connections accommodate wired lighting control. The fixture includes a full-color LCD, sound-activated programs, and Totem Mode for restricting movement to designated performance areas. CE, FCC, and RoHS compliance further support its integration into professional indoor entertainment environments.

Key Features

• Seven 20W RGBW LEDs: Delivers 140W of combined LED power with red, green, blue, and white color mixing for versatile stage and event lighting.
• Motorized 5-27 Degree Zoom: Adjusts beam coverage from concentrated illumination to wider washes without requiring manual lens changes or fixture repositioning.
• Built-In D-Fi Wireless Technology: Enables compatible wireless DMX and ILS communication, reducing signal cable requirements in professional lighting installations.
• CHAUVET DJ ILS Compatibility: Synchronizes lighting effects with compatible Integrated Lighting System fixtures for coordinated entertainment lighting.
• 540-Degree Pan and 225-Degree Tilt: Provides extensive motorized movement with selectable ranges for different venue sizes and installation configurations.
• Totem Mode: Limits fixture movement to designated performance areas, helping keep lighting effects concentrated on the dance floor.
• Full-Color LCD and Multiple Control Modes: Supports convenient configuration, DMX programming, automated effects, sound activation, and optional remote operation.
• Power Linking and Flexible Mounting: Supports interconnected power connections and includes a hanging bracket for professional lighting installations.

Motorized Zoom and RGBW LED Wash Lighting

140W RGBW LED Light Engine

The Sentinel Wash Q7Z ILS incorporates seven 20W quad-color LEDs, providing 140W of combined light-source power. Each LED supports red, green, blue, and white color mixing, allowing operators to produce customized color combinations for different performances and events.

The fixture supports electronic dimming from 0 to 100%, giving lighting technicians control over output intensity. Its integrated strobe operates from 0 to 20 Hz, providing additional visual effects for concerts, dance floors, and entertainment productions.

CHAUVET DJ specifies a 50,000-hour LED life expectancy, supporting repeated use in professional lighting environments.

Adjustable 5-27 Degree Motorized Zoom

The motorized zoom system changes beam coverage between 5 and 27 degrees, allowing the fixture to accommodate both concentrated lighting effects and broader wash applications.

At the narrow 5-degree setting, the fixture delivers 30,537 lux at a distance of 6.6 feet. At the wider 27-degree setting, measured illuminance is 3,390 lux at the same distance.

This adjustable optical system enables lighting operators to select tighter beams for focused visual effects or wider coverage for illuminating performers, stages, and dance floors.

Professional Moving Head Movement and Positioning

Adjustable Pan and Tilt Ranges

The Sentinel Wash Q7Z ILS offers motorized pan movement up to 540 degrees and tilt movement up to 225 degrees.

Selectable pan ranges include 180, 360, and 540 degrees. Tilt movement can be configured for 90, 180, or 225 degrees, allowing operators to adapt the fixture to different lighting positions and venue layouts.

Pan and tilt inversion settings provide additional flexibility when fixtures are installed in different orientations, including overhead mounting configurations.

Totem Mode for Dance Floor Lighting

Totem Mode restricts pan and tilt movement to help concentrate the moving head's effects within the intended performance area.

Separate settings accommodate overhead and floor-mounted installations, making this feature particularly useful for mobile DJs and entertainment venues where controlled beam positioning is important.

Wireless DMX and CHAUVET DJ ILS Integration

Built-In D-Fi Wireless DMX Transceiver

The integrated D-Fi transceiver supports wireless communication with compatible lighting equipment. Operators can configure the fixture for wireless transmission or reception, allowing it to participate in supported wireless DMX installations.

Sixteen selectable D-Fi channels accommodate different wireless lighting configurations. The fixture also supports wireless master/slave functionality, enabling compatible units to operate together without a separate DMX controller.

Integrated Lighting System Compatibility

CHAUVET DJ's Integrated Lighting System enables compatible lighting fixtures to synchronize effects within a coordinated lighting setup.

The Sentinel Wash Q7Z ILS supports two ILS operating modes for synchronizing with compatible systems. When integrated with supported ILS equipment, it can follow coordinated lighting sequences alongside other wash fixtures and entertainment effects.

The optional ILS Command controller provides additional control functionality, including supported follow-spot operation.

Wired DMX Control and Programming

For conventional lighting systems, the fixture provides 3-pin XLR DMX input and output connections.

Operators can select between 9-channel and 14-channel DMX configurations, allowing basic or more detailed control depending on the lighting application.

Available DMX functions include pan, tilt, zoom, RGBW color channels, electronic dimming, strobe effects, and movement programming. The 14-channel configuration adds functions such as fine pan and tilt adjustments and movement macros.

Standalone Operation and Automatic Lighting Effects

Sound-Activated Lighting

An integrated microphone allows the fixture to respond to music in sound-active mode. This functionality supports automated lighting movement and effects without requiring continuous DMX programming.

Adjustable sound sensitivity helps operators configure the fixture for different music levels and performance environments.

Automatic Programs and Master/Slave Synchronization

Built-in automatic programs provide movement and color effects for standalone operation. Adjustable program speed allows users to customize automated lighting behavior.

Compatible fixtures can also operate in wired or wireless master/slave configurations, allowing multiple moving heads to follow synchronized lighting sequences.

The available slave settings support synchronized or delayed movement patterns, creating additional visual variation across multi-fixture installations.

Full-Color LCD and Optional Infrared Remote

The full-color LCD provides access to fixture configuration, operating modes, movement settings, and wireless control options.

Four navigation buttons simplify menu operation and adjustments. The fixture also supports the optional CHAUVET DJ IRC-6 infrared remote for convenient control of supported functions.

Power Linking and Professional Installation

Multiple Fixture Power Connections

The Sentinel Wash Q7Z ILS includes an auto-ranging power supply compatible with 100-240V AC electrical systems.

Power linking allows operators to connect multiple compatible fixtures using the available power input and output connections.

CHAUVET DJ specifies power linking for up to six fixtures at 120V or twelve fixtures at 230V, subject to the manufacturer's electrical requirements.

Floor and Overhead Mounting

The fixture supports floor placement and overhead installation using the included hanging bracket. A mounting hole of approximately 0.5 inches accommodates suitable mounting hardware.

A dedicated safety cable attachment point supports secure overhead rigging when used with an appropriately rated safety cable.

The fixture is designed for indoor operation and uses convection cooling. Its black housing and compact construction make it suitable for mobile lighting rigs and installed entertainment systems.

Applications for DJs, Stages, and Event Lighting

Mobile DJs and Wedding Receptions

The combination of wireless control, automated programs, RGBW color mixing, and motorized zoom makes the fixture suitable for mobile entertainment applications.

Operators can configure coordinated lighting effects while minimizing the amount of control cabling needed for compatible wireless installations.

Nightclubs and Dance Floors

Adjustable beam coverage, sound activation, and motorized movement allow the fixture to create changing color effects throughout a dance floor.

Totem Mode provides additional control over movement boundaries, helping direct the lighting toward the intended area.

Live Performances and Stage Lighting

The motorized zoom system allows lighting designers to adjust coverage for different stage positions and performance requirements.

DMX control enables integration into programmed lighting systems, while the RGBW LEDs provide adjustable colors for stage washes and atmospheric effects.

Multi-Fixture Entertainment Installations

ILS compatibility, wired DMX connections, wireless D-Fi communication, and power linking make the fixture suitable for installations using multiple coordinated moving heads.

These capabilities support entertainment venues, event production systems, and professional lighting setups requiring synchronized movement and adaptable wash coverage.

Technical Specifications

• Manufacturer: CHAUVET DJ
• Product Model: Sentinel Wash Q7Z ILS
• Manufacturer Item Code: 10012700
• Product Series: Sentinel
• Product Type: RGBW LED Moving Head Wash
• Fixture Color: Black
• Light Source: 7 x 20W Quad-Color RGBW LEDs
• Total LED Power: 140W
• LED Colors: Red, Green, Blue, White
• LED Current: 5A
• LED Life Expectancy: 50,000 Hours
• Zoom Type: Motorized
• Zoom Range: 5-27 Degrees
• Illuminance at 5 Degrees: 30,537 Lux at 6.6 ft
• Illuminance at 27 Degrees: 3,390 Lux at 6.6 ft
• Electronic Dimming: 0-100%
• Strobe Rate: 0-20 Hz
• Maximum Pan Movement: 540 Degrees
• Maximum Tilt Movement: 225 Degrees
• Selectable Pan Ranges: 180, 360, 540 Degrees
• Selectable Tilt Ranges: 90, 180, 225 Degrees
• Movement Configuration: Pan Reverse, Tilt Reverse, Totem Mode
• DMX Channel Modes: 9 or 14 Channels
• DMX Protocol: DMX512
• DMX Input: 3-Pin XLR
• DMX Output: 3-Pin XLR
• Wireless Technology: Built-In D-Fi Transceiver
• Wireless Functions: D-Fi Transmit and Receive
• D-Fi Channels: 1-16
• ILS Compatibility: CHAUVET DJ Integrated Lighting System
• ILS Modes: ILS1, ILS2
• Operating Modes: DMX, Automatic, Sound-Active, Manual, Master/Slave, ILS, Infrared Remote
• Wired Master/Slave: Supported
• Wireless Master/Slave: Supported
• Additional Control Features: Follow Spot, Movement Macros, Screen Reverse
• Automatic Program Speed: Adjustable
• Sound Sensitivity: Adjustable, 1-100
• Sound Activation: Integrated Microphone
• Control Display: Full-Color LCD
• Control Interface: 4-Button Navigation
• Optional Controllers: IRC-6, ILS Command
• Power Supply Type: Internal Switching Power Supply
• Input Voltage: 100-240V AC, 50/60Hz
• Voltage Selection: Auto-Ranging
• Power Consumption at 120V: 148W
• Power Consumption at 230V: 146W
• Operating Current at 120V: 1.2A, 60Hz
• Operating Current at 230V: 0.7A, 50Hz
• Power Linking at 120V: Up to 6 Fixtures
• Power Linking at 230V: Up to 12 Fixtures
• Power Linking Current: 8A
• Fuse: 5KT 3.15A, 250V
• Power Input Connector: IEC
• Power Output Connector: Edison (U.S. Version)
• Power Cable Plug: Edison (U.S. Version)
• Included Power Cable Length: 5 ft
• Mounting Options: Floor Placement, Hanging Bracket
• Hanging Bracket Hole Diameter: Approximately 0.5"
• Safety Cable Attachment: Integrated Pass-Through
• Cooling System: Convection
• Maximum External Operating Temperature: 104 Degrees F
• Operating Environment: Indoor Use
• Fixture Length: 14.2"
• Fixture Width: 10"
• Fixture Height: 7.4"
• Fixture Weight: 13.8 lb
• Compliance: CE, FCC, RoHS
• Compatible Carrying Bag: CHAUVET DJ CHS-40 VIP Gear Bag

What's In the Box

• CHAUVET DJ Sentinel Wash Q7Z ILS Moving Head Wash
• Power Cable
• Hanging Bracket
• Quick Reference Guide
