Datavideo PTC-140TW 12X HDBaseT PTZ Camera with HBT-12 Receiver Kit, White
Datavideo PTC-140TW 12X HDBaseT PTZ Camera with HBT-12 Receiver Kit, White The Datavideo PTC-140TW is a professional-grade HDBaseT PTZ camera kit designed for studios, live events, worship spaces, classrooms, and conference environments. It features a high-quality Full HD sensor with 12x optical...
PRODUCT DETAILS
Everything you need to know.

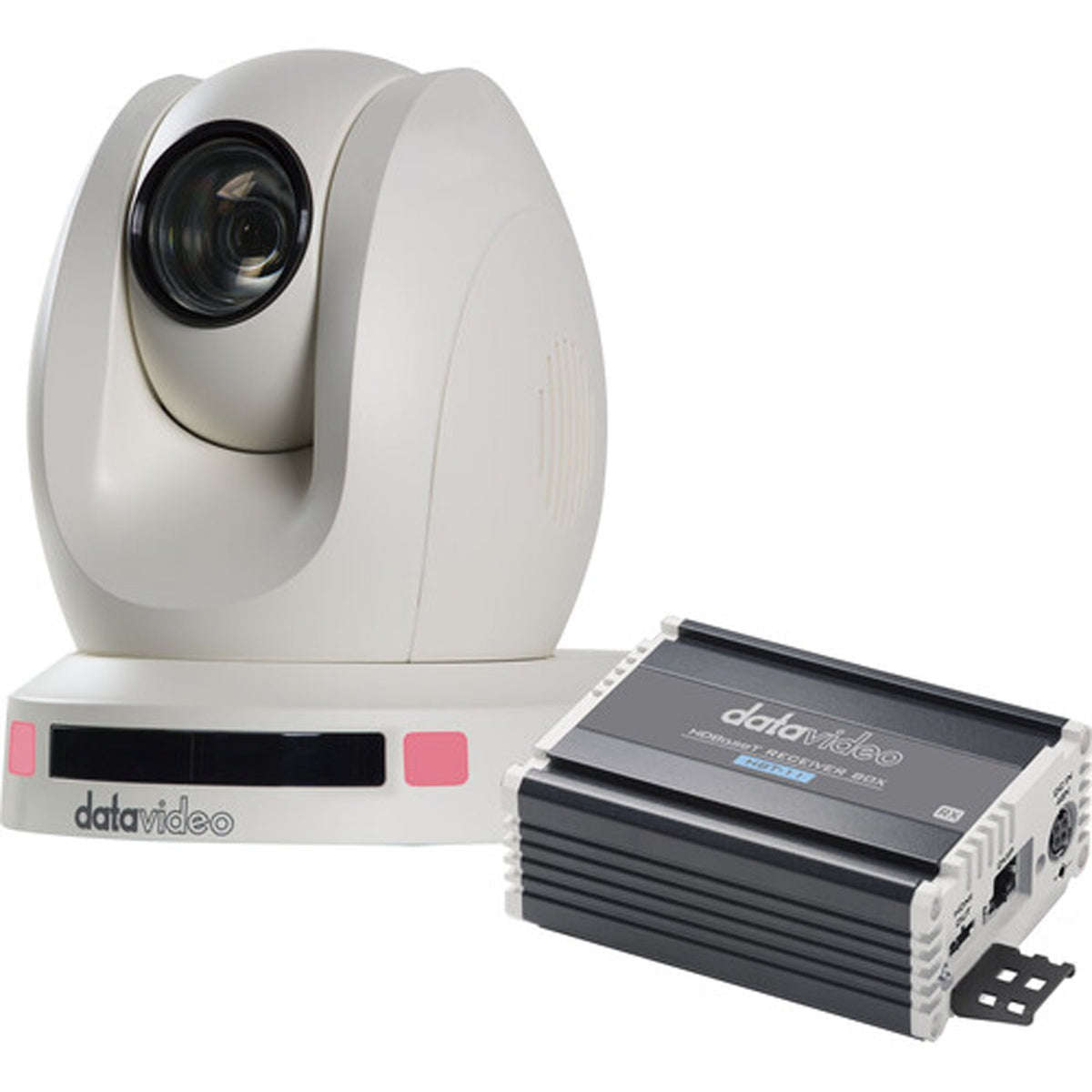

Datavideo PTC-140TW 12X HDBaseT PTZ Camera with HBT-12 Receiver Kit, White
The Datavideo PTC-140TW is a professional-grade HDBaseT PTZ camera kit designed for studios, live events, worship spaces, classrooms, and conference environments. It features a high-quality Full HD sensor with 12x optical zoom and delivers crisp, low-noise video over a single Cat6 cable for power, control, video, and tally signals. The included HBT-12 HDBaseT receiver extends functionality and simplifies setup with long-distance transmission up to 328 feet (100 meters).
Key Features
- Full HD Resolution: 1/2.8-inch CMOS sensor captures up to 1080p60 video for detailed, clear imagery.
- 12x Optical Zoom: High-quality zoom lens for close-up shots without image degradation.
- HDBaseT Transmission: Transmits power, video, control, and tally signals via a single Cat6 cable up to 100m.
- HBT-12 Receiver Included: HDBaseT to HDMI receiver simplifies integration with switchers and monitors.
- Multiple Video Outputs: HDMI, 3G-SDI, and IP streaming provide flexible connectivity for any workflow.
- Advanced Control: RS-232, RS-422, IR remote, and network (IP) control supported for versatile setup.
- Low-Light Performance: Excellent image quality in dimly lit environments with advanced noise reduction.
- PoE Support: Power camera through HDBaseT—no separate power cable required.
- Mounting Options: Compatible with ceiling, wall, or tripod mounts.
Technical Specifications
- Image Sensor: 1/2.8-inch CMOS, 2.14 megapixels
- Video Output: HDMI, 3G-SDI, HDBaseT, IP streaming (RTSP/RTMP/SRT)
- Resolution: 1920x1080 (60/59.94/50/30/25 fps)
- Zoom Ratio: 12x optical, 16x digital
- Minimum Illumination: 0.5 lux (F1.8)
- White Balance: Auto / Manual / Preset
- Shutter Speed: 1/1 to 1/10,000 second
- Control Interface: RS-232 / RS-422 / IR / IP
- Video Compression: H.264 / H.265
- Audio Input: 3.5mm stereo mini jack
- Power Supply: DC 12V or PoE+ via HDBaseT
- Operating Temperature: 0 to 40°C
- Dimensions (Camera): 5.7 x 6.3 x 6.9 in (145 x 160 x 175 mm)
- Weight (Camera): 3.3 lb (1.5 kg)
- Dimensions (Receiver): 4.7 x 3.0 x 1.0 in (120 x 76 x 25 mm)
- Weight (Receiver): 0.5 lb (0.23 kg)
What's in the Box
- 1x PTC-140TW 12X HDBaseT PTZ Camera
- 1x HBT-12 HDBaseT to HDMI Receiver
- 1x Power Adapter
- 1x IR Remote Control
- Wall Mount Bracket
- Quick Start Guide
