DJI Zenmuse H30T Shield Plus
DJI Zenmuse H30T Shield Plus The DJI Zenmuse H30T Shield Plus is an advanced multi-sensor payload designed for industrial drones, equipped with powerful zoom, wide-angle, thermal, and laser rangefinder capabilities. Its enhanced thermal imaging and high-resolution sensors make it ideal for emergency...
PRODUCT DETAILS
Everything you need to know.

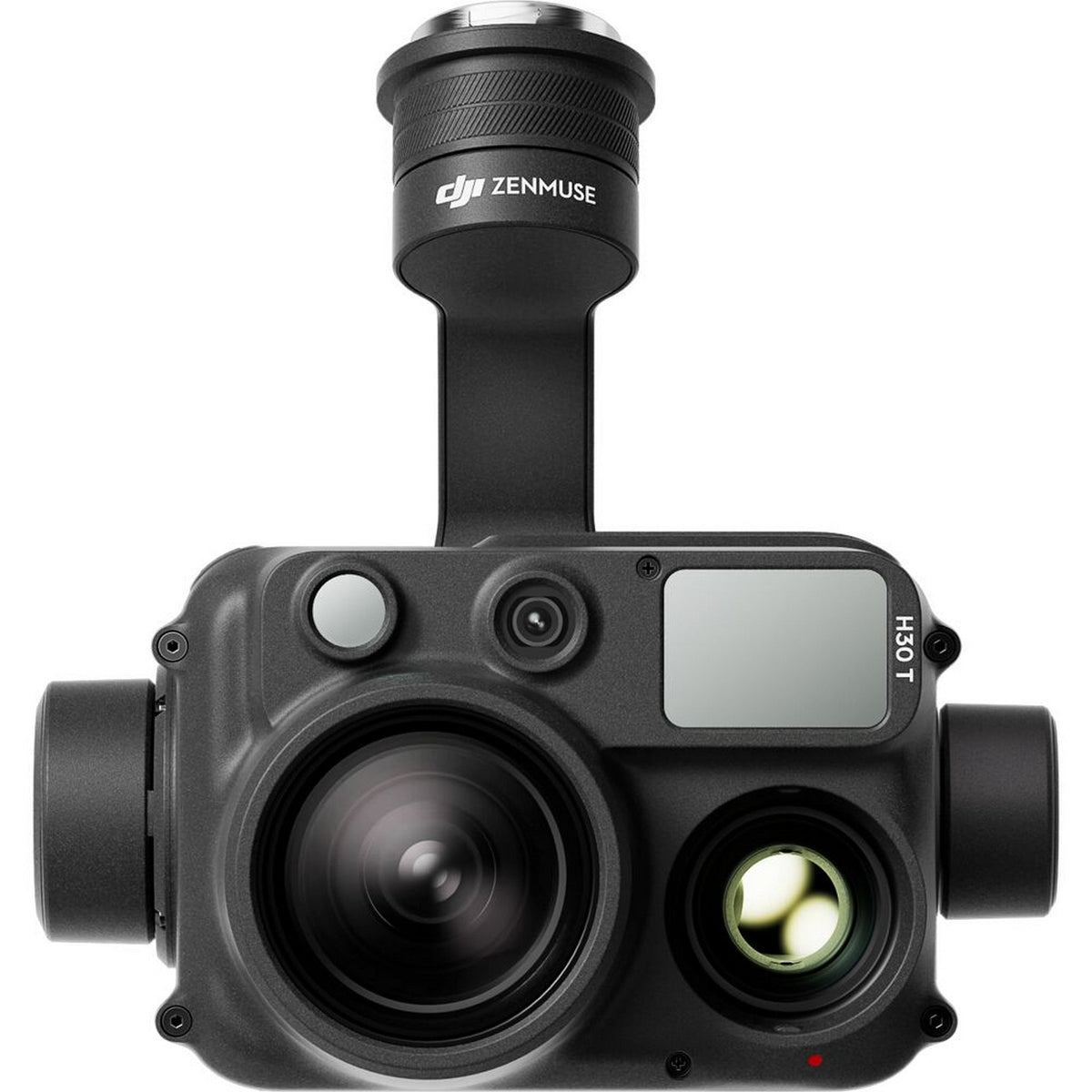

DJI Zenmuse H30T Shield Plus
The DJI Zenmuse H30T Shield Plus is an advanced multi-sensor payload designed for industrial drones, equipped with powerful zoom, wide-angle, thermal, and laser rangefinder capabilities. Its enhanced thermal imaging and high-resolution sensors make it ideal for emergency response, inspections, and security missions requiring precise detail and temperature readings.
It features up to 34× optical zoom, 400× digital zoom, and a 1280×1024 thermal sensor with an infrared measurement range from −20°C to 1600°C (−4°F to 2912°F). With UHR imaging, infrared density filtering, and multiple gain modes, the H30T delivers performance far exceeding its predecessors.
Key Features
- Zoom Camera: 40MP 1/1.8" CMOS Sensor
- Wide-Angle Camera: 48MP 1/1.3" CMOS Sensor
- Thermal Camera: 1280×1024 resolution with up to 32× zoom
- Temperature Range: −20°C to 1600°C (−4°F to 2912°F)
- Infrared Imaging: UHR mode and IR density filter for high-heat scenarios
- Gain Modes: High, Low, and High-Res for specialized use cases
- Use Cases: Firefighting, SAR, inspection, and security
Technical Specifications
- Weight: 7.5 lb (3.4 kg)
- Dimensions: 13.500 × 9.500 × 11.500 in (34.29 × 24.13 × 29.21 cm)
What's Included
- 1x DJI Zenmuse H30T Payload
- 1x DJI Care Enterprise Plus: 1-Year Unlimited Repairs within Coverage
