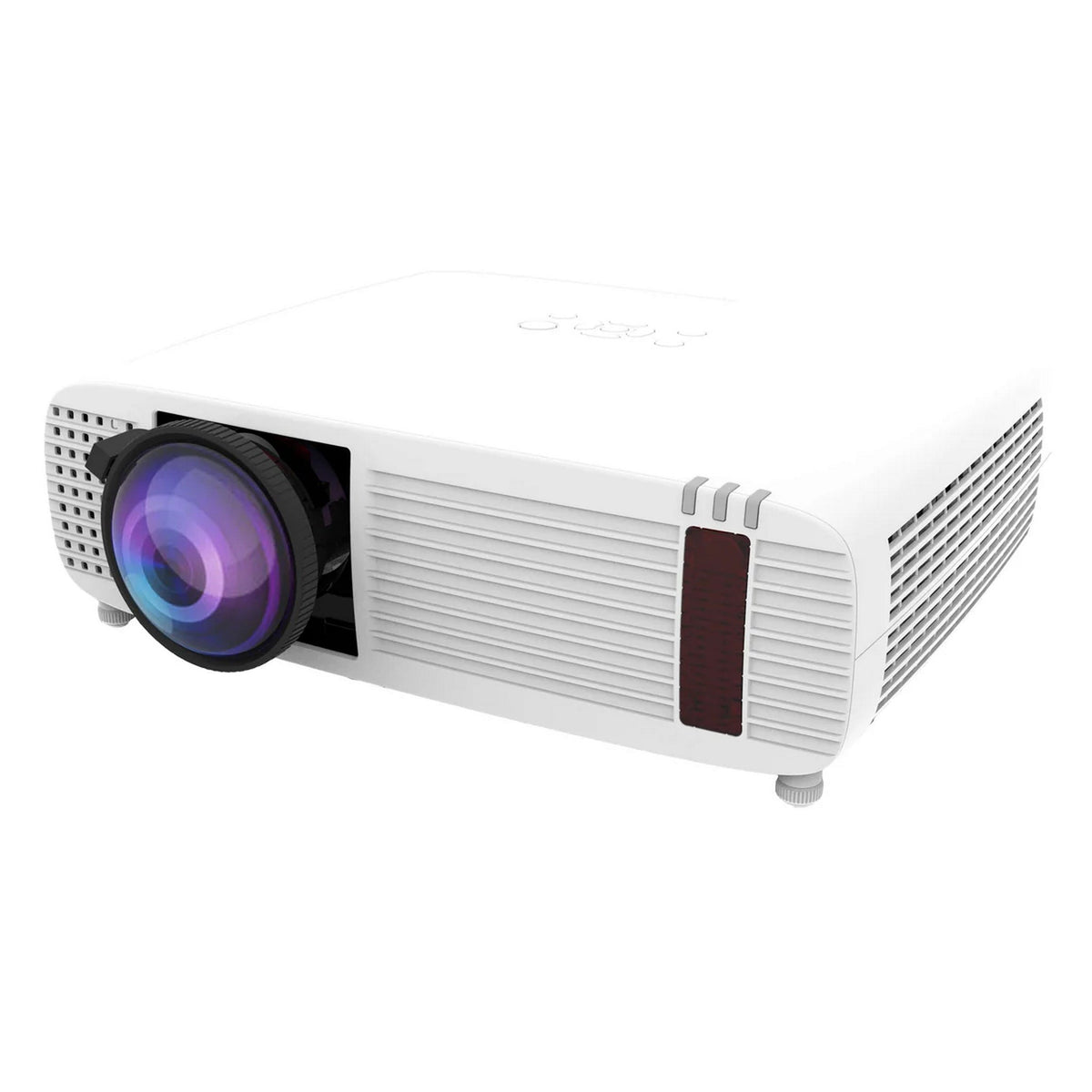

Eiki C602S 6000 Lumens WUXGA 3LCD Laser Short Throw Projector

The Eiki C602S is a high-performance WUXGA 3LCD laser projector designed for tight installation spaces requiring large visuals from short distances. With 6000 center lumens and a powerful short throw lens, it is ideal for classrooms, meeting rooms, and corporate boardrooms needing high brightness and flexibility in compact setups.

This model supports 4K input and features 10-bit color processing, lens shift, geometric correction, and both HDMI and VGA connectivity. Its long-life laser light engine delivers consistent performance for up to 20000 hours with low maintenance and minimal downtime.

Enhanced with vertical lens shift, Crestron RoomView and AMX control compatibility, built-in 16 W audio, and advanced image correction options, the C602S offers professional-level features in a compact, quiet form factor built for seamless daily use.

Key Features

• Brightness: 6000 center lumens with 80 percent uniformity
• Lens: Short throw ratio 0.68 to 0.82:1 with 1.2x manual zoom and focus
• Resolution: Native WUXGA 1920x1200 with 4K input support
• Color Processing: 10-bit color for 16.7 million color reproduction
• Light Engine: Laser plus phosphor, 20000-hour rated life
• Connectivity: HDMI x2, VGA, USB-A, USB-B, RS-232, LAN, HDMI Out
• Image Correction: Vertical and horizontal keystone, corner, pincushion and barrel, 4/6-point geometric correction
• Control: Network control with Crestron RoomView and AMX support
• Speaker: Built-in 16 W mono amplifier and speaker
• Installation: 360-degree orientation, vertical lens shift

Technical Specifications

• Display Type: 0.64 inch 3LCD
• Resolution: WUXGA 1920x1200
• Aspect Ratio: 16:10
• Brightness: 6000 center lumens
• Contrast Ratio: 5000000 to 1
• Light Source: Laser
• Light Source Life: 20000 hours
• Image Diagonal: 30 to 300 in
• Lens: f/1.7-1.8, FL 0.38-0.46 in (9.66-11.65 mm)
• Zoom Ratio: Manual 1.2x
• Throw Ratio: 0.68 to 0.82:1
• Throw Distance: 1.4 to 17.4 ft (0.44 to 5.30 m)
• Lens Shift: Vertical plus 50 percent (manual)
• Keystone Correction: V: plus-minus 30 deg, H: plus-minus 30 deg, corner
• Projection Elevation Adjustment: up to 3.5 degrees
• Scanning Frequency: H Sync 15-135 kHz, V Sync 24-85 Hz
• Dot Clock: up to 160 MHz
• Input Signals - Computer: VGA to 4K 3840x2160
• Input Signals - Video: 480i/p, 576i/p, 720p, 1080i/p
• HDMI In: x2
• HDMI Out: x1
• VGA In: Dsub15 x1
• VGA Out: Dsub15 x1
• USB-A: x1 (memory viewer)
• USB-B: x2 (firmware)
• Audio In: 3.5 mm mini stereo x1
• Audio Out: 3.5 mm mini stereo x1
• RS-232: Dsub9 x1
• LAN: RJ45 x1
• Built-in Speaker: Mono 16 W
• Fan Noise: 29 dB Eco / 39 dB Normal
• Dimensions: 15.4 x 13.5 x 5.0 in (39.0 x 34.4 x 12.8 cm)
• Weight: 12.6 lb (5.7 kg)
• Power Requirements: 100-240 V AC, 50/60 Hz
• Power Consumption: 0.5 W in Eco standby, up to 330 W
• Thermal Dissipation: 1126 BTU

What's in the Box

• 1x Projector (Eiki C602S)
• 1x Detachable AC Power Cord
• 1x HDMI Cable
• 1x Quick Start Guide
• 1x Remote Control
