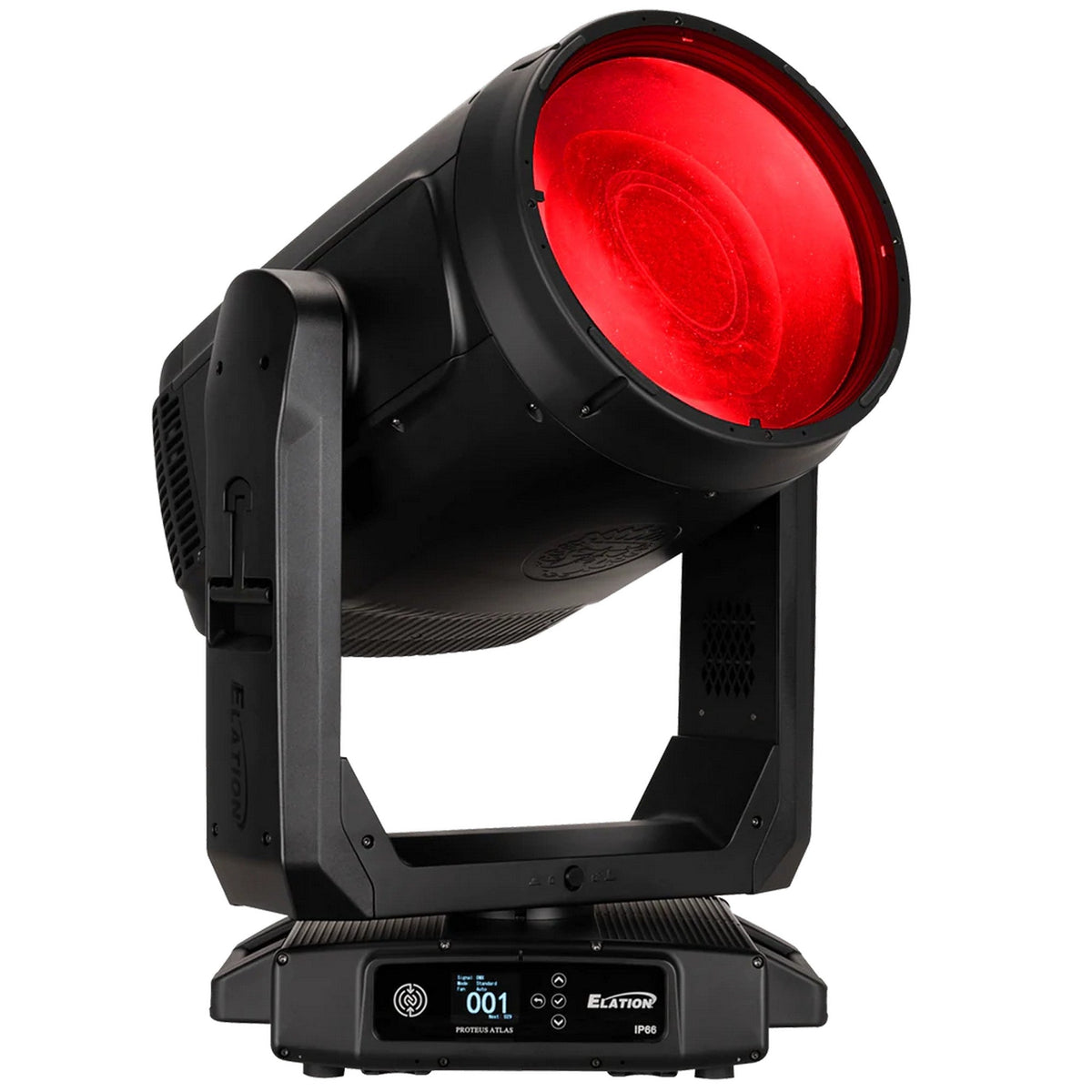

Elation PROTEUS ATLAS 500W LILI IP66 Ultra Long Throw Beam LED Fixture

Elation PROTEUS ATLAS 500W LILI IP66 Ultra Long Throw Beam LED Fixture

The ELATION PROTEUS ATLAS is a professional-grade beam FX lighting fixture engineered for large-scale productions, outdoor spectacles, cruise ships, theme parks, concerts, and any event demanding intense long-throw illumination. Its 500W Laser Illuminated Lighting Instrument (LILI) light engine produces a razor-sharp, Xenon-style beam that can cut through the sky, delivering up to 1,000,000 lux at 20 meters - powerful enough to create dramatic sky-painting effects and commanding presence across vast spaces.

Thanks to its 320 mm (approx. 12.5") front lens and ultra-narrow beam angle (0.6°) - zoomable out to 8.5° - PROTEUS ATLAS offers exceptional control over beam projection. Whether you’re creating a tight, piercing column of light or a broader atmospheric wash, its ultra-long throw and flexible optics give lighting designers the versatility to sculpt dramatic visuals.

Beyond raw power, PROTEUS ATLAS is craftsmanship and durability built for harsh environments. Its IP66-rated housing ensures resistance to dust, water, and weather - ideal for outdoor or maritime installations. Inside, a full FX package with gobos, prisms, dual frost effects, CMY color mixing, and a 25-position color wheel combine with precise motorized pan/tilt control to deliver creative flexibility and dynamic visual impact.

Key Features

• 500W LILI (Laser Illuminated Lighting Instrument) performance - bright, dense, long-throw beam with 12,000-hour lamp life.
• Ultra-narrow beam (0.6°) zoomable to 8.5° - from sharp column to wide wash.
• A staggering 1,000,000 lux at 20 m (100,000 lux at 100 m) - suitable for sky-filling aerial effects.
• Full CMY color mixing plus a 25-position color wheel for rich, saturated colors and instant transitions.
• Comprehensive FX suite - dual frost (beam & wash), ultra-fast zoom, focus, 2x3 multi-plane prisms, digital shutter & strobe.
• Extensive gobo options - 2 gobo wheels, 13 interchangeable rotating/indexing metal gobos, and 26 static-stamped metal gobos for versatile patterning.
• Precise motorized movement - 360° / 540° pan and 250° tilt for dynamic aerial motion effects.
• Robust outdoor-ready design with IP66-rated housing, marine-grade coating, and sealed optics - perfect for outdoor, cruise ship, or festival environments.
• Control flexibility - supports DMX, RDM, Art-Net, sACN protocols, with a full-color reversible 180° LCD menu display, touch panel control, and optional NFC.

Technical Specifications

SOURCE: 500W Laser Illuminated Lighting Instrument (LILI) Light Engine, 9000 K, CRI 70, 12,000-hour lamp life.

Photometric Data: 1,000,000 lux @ 20 m, 100,000 lux @ 100 m; Beam angle 0.6° – 8.5°.

Effects: Dual Frost (Hot-Spot Beam, Wash FX), Ultra-Fast Zoom, Focus, 2x3 Prisms on Dual Planes, Digital Shutter and Strobe; Pan Angle 360° / 540°, Tilt Angle 250°.

Color: Full CMY Color Mixing System; 25-Position Color Wheel.

Gobos: 2 Gobo Wheels - 13 Interchangeable-Rotating / Indexing Metal Gobos; 26 Static-Stamped Metal Gobos.

Control / Connections: 2 DMX Channel Modes (26 / 36 Ch), 6-Button Touch Panel, Full-Color 180° Reversible LCD Menu Display; Supports DMX, RDM, Art-Net, sACN, NFC; IP66-rated 5-pin DMX In/Out, IP66 RJ45 Ethernet In/Out, IP66 Locking Power Input.

Size / Weight (approx.): 14.6" (length) x 20" (width) x 31.5" (height)
Weight: 124.1 lb

Electrical / Thermal: AC 100–240 V, 50/60 Hz; Max Power Consumption 670 W; Operating Temperature Range: –4 °F to 113 °F.
