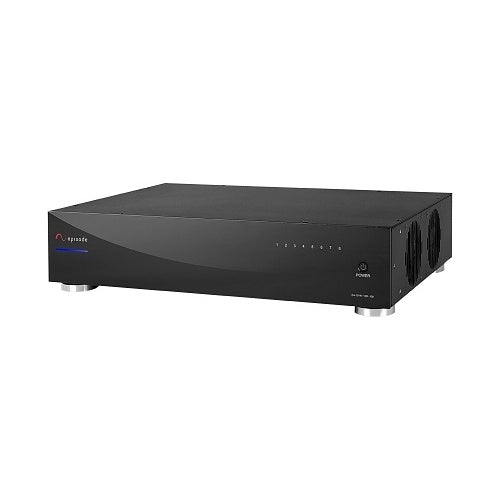

Episode EA-DYN-16D-100 Dynamic Series 16-Channel Class-D Amplifier, 100W

The Episode EA-DYN-16D-100 Dynamic Series Class-D amplifier delivers clean, efficient multi-room power for whole-home and light commercial audio systems, packing 16 channels of amplification into a single 2U rack-mount chassis. Each channel produces 100 watts into 4 ohms (50 watts into 8 ohms), and adjacent channel pairs can be bridged to 200 watts at 8 ohms for zones that need extra headroom — ideal for driving up to eight stereo zones of in-ceiling, in-wall, or outdoor speakers from one centralized rack location.

Designed by Snap One for custom integrators, the Dynamic Series makes distributed audio installation simple and reliable. Every zone offers front-panel input selection between its dedicated line-level input, an optical/SPDIF digital global input, or the Global A/B analog buses, so two shared sources can feed any combination of rooms. Auto audio-sensing turns the amplifier on when a signal appears and drops it into power-saving standby when the last source shuts off, while 12V trigger input and output loops integrate seamlessly with Control4 and other control systems.

Installer-friendly touches round out the package: a low-level subwoofer output per zone with a fixed 200 Hz low-pass crossover enables a 2.1 system in every room, RCA loop outputs allow easy daisy-chaining to additional amplifiers, individual gain controls balance levels between zones, and the included rack ears (with removable feet) provide clean equipment-rack mounting. ESD and surge protection exceeding CE Level 3 plus a UL listing ensure long-term dependability in the rack.

Features

• 16 channels of efficient Class-D amplification — up to 8 stereo zones from one 2U chassis
• 100W per channel into 4 ohms / 50W into 8 ohms; bridgeable to 200W at 8 ohms per zone
• Per-zone input selection: dedicated line input, Global A/B analog buses, or optical/SPDIF digital input
• Auto audio-sensing power on/off with energy-saving standby mode
• 12V trigger input and output for control-system integration
• Low-level subwoofer output per zone with 200 Hz low-pass crossover for 2.1 zones
• RCA loop outputs for daisy-chaining additional amplifiers
• Individual gain controls and clip indicators per zone
• ESD and surge protection exceeding CE Level 3; UL listed
• Rack-mountable with included rack ears and removable feet

Technical Specifications

• Channels: 16 (8 zones)
• Continuous Power Output (all channels driven): 50W RMS @ 8 ohms / 100W RMS @ 4 ohms
• Bridged Power Output: 200W RMS @ 8 ohms (8 ohm minimum in bridge mode)
• Amplifier Topology: Class D
• Frequency Response: 20 Hz – 20 kHz
• THD: 0.1%, 20 Hz – 20 kHz
• Signal-to-Noise Ratio: 95 dB
• Input Sensitivity: 500 mV; Input Impedance: 20 kOhm
• Inputs: 16x analog line (1 per channel), 2x global analog (A/B), 1x optical SPDIF global, 1x 3.5mm 12V trigger
• Outputs: speaker binding posts per channel, 1x sub out per zone (200 Hz LPF), 2x analog loop out, 1x optical SPDIF loop out, 1x 3.5mm 12V trigger out
• Rack Size: 2U
• Dimensions (W x H x D): 17.17 x 3.45 x 11.81 in.
• Weight: 10.8 lb.
• Operating Temperature: 14°F – 104°F
• Certifications: UL Listed
• Warranty: 2-Year Limited

What's Included

• Episode EA-DYN-16D-100 16-channel amplifier
• Rack ears (accessory package)
• Removable feet (pre-installed)
• Power cord
• Installation manual
