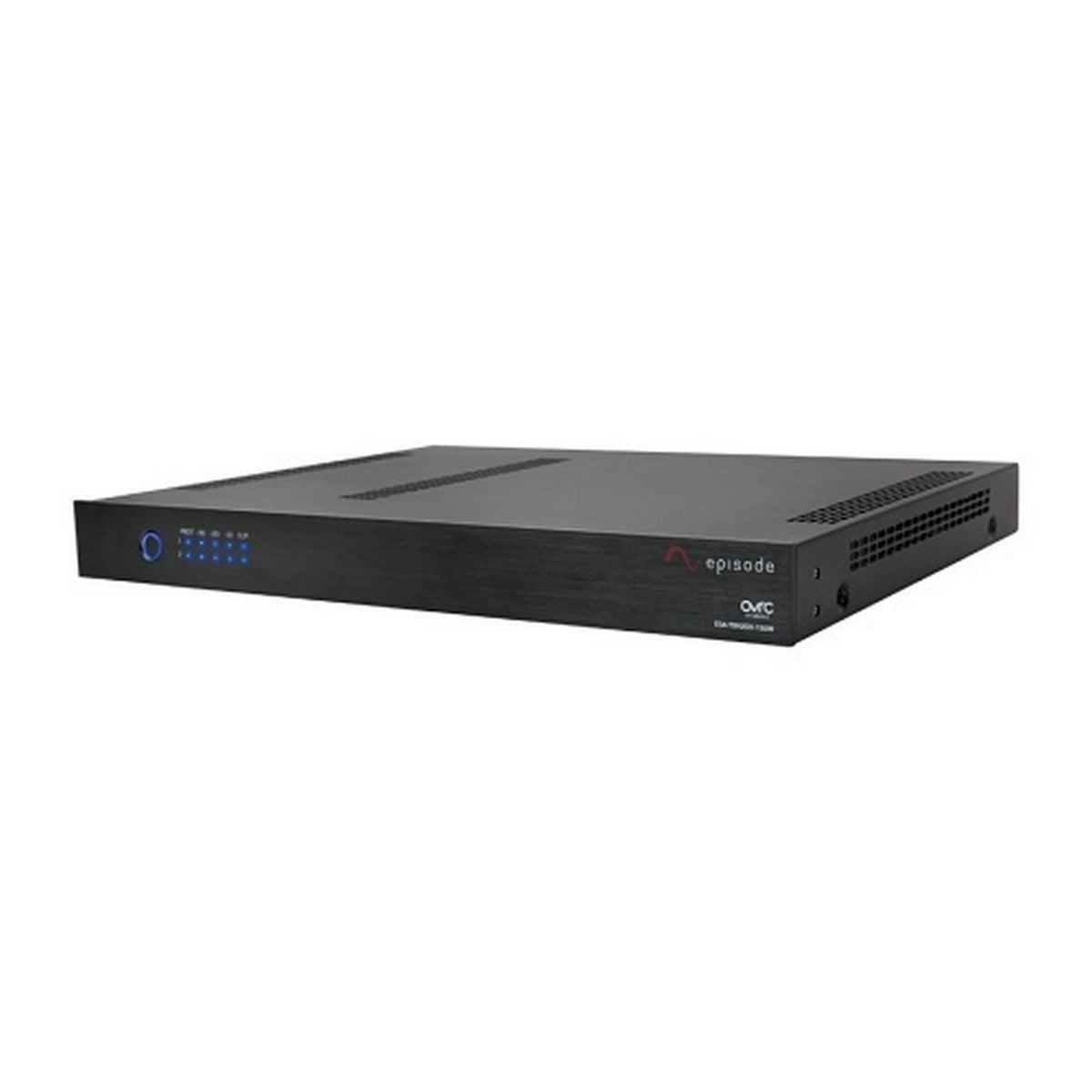

Episode ESA-70V2CH-150W 2-Channel 70V IP Amplifier, 150 Watt

Episode ESA-70V2CH-150W 2-Channel 70V IP Amplifier, 150 Watt

The Episode ESA-70V2CH-150W 2-channel 70V IP amplifier delivers 150W per channel for commercial distributed audio systems. It supports OvrC remote management, IR, IP, and RS-232 control, balanced and unbalanced inputs, loop outputs, audio sensing, and 12V trigger control in a slim 1U rackmount chassis.

Built for restaurants, bars, small conference rooms, and outdoor speaker systems, this 150W 70V amplifier gives integrators flexible routing and clean system control. Use it for a two-zone commercial amplifier system, a rackmount 70V amplifier installation, or a managed distributed audio setup with remote service access.

The ESA-70V2CH-150W supports professional source integration with one balanced set-screw input and one unbalanced RCA input per channel. Control4 compatibility, Ethernet-based configuration, high ESD and surge protection, FCC Part 15 compliance, and UL EN60065 certification make it a dependable choice for commercial AV installations.

Key Features

• 150W Per Channel: Delivers continuous 70V output for commercial speaker zones and distributed audio systems.
• 2-Channel Design: Supports stereo output or two independent mono zones with flexible routing and control.
• OvrC Enabled: Allows remote access for configuration, firmware updates, gain control, power cycling, and system status checks.
• IR, IP, and RS-232 Control: Integrates with professional control systems for source selection, volume, and operation.
• Balanced and Unbalanced Inputs: Provides one balanced set-screw input and one unbalanced RCA input per channel.
• Loop Outputs: Helps daisy-chain audio to downstream amplifiers for larger distributed sound systems.
• Audio Sensing: Enables automatic turn-on and power-saving standby behavior based on detected signal.
• 1U Rackmount Chassis: Installs efficiently in standard AV racks while conserving rack space.

Technical Specifications

• Brand: Episode
• Model: ESA-70V2CH-150W
• ADI Part Number: 8P-ESACH150W
• Product Line: MRA
• Product Type: 70V Amplifier
• Channels: 2
• Continuous Power Output: 150W per channel at 70V
• Inputs Per Channel: One balanced set-screw input and one unbalanced RCA input
• Input Impedance: 10KΩ unbalanced, 20KΩ balanced
• Input Sensitivity: 775mV
• 12V Trigger Input: 4.5 - 12V DC, 10KΩ
• 12V Trigger Output: 12V DC, 10mA
• Signal-to-Noise Ratio: 95dB A-weighted
• Frequency Response: 50Hz - 20kHz
• Maximum Frequency Response: 20kHz
• Total Harmonic Distortion: 0.1% THD, 20Hz - 20kHz
• Control: IR, IP, RS-232
• Network: Ethernet
• Input Voltage: 115V AC / 230V AC
• Power Consumption: 400W
• Fuse Type: 115V AC T3.15AL 250V, 230V AC T1.6AL 250V
• Operating Temperature: 32°F - 122°F
• Rack Height: 1U
• Rack Width: 17"
• Rack Depth: 14"
• Dimensions: 17" W x 1.73" H x 14" D
• Weight: 11.9 lbs
• Certifications: Meets FCC Part 15, UL EN60065
• Compatibility: Control4
• OvrC Enabled: Yes

What's Included

• Episode ESA-70V2CH-150W Amplifier
• Detachable 6 ft IEC Power Cable
• Two Mounting Ears for Amplifier
• Installation Manual
