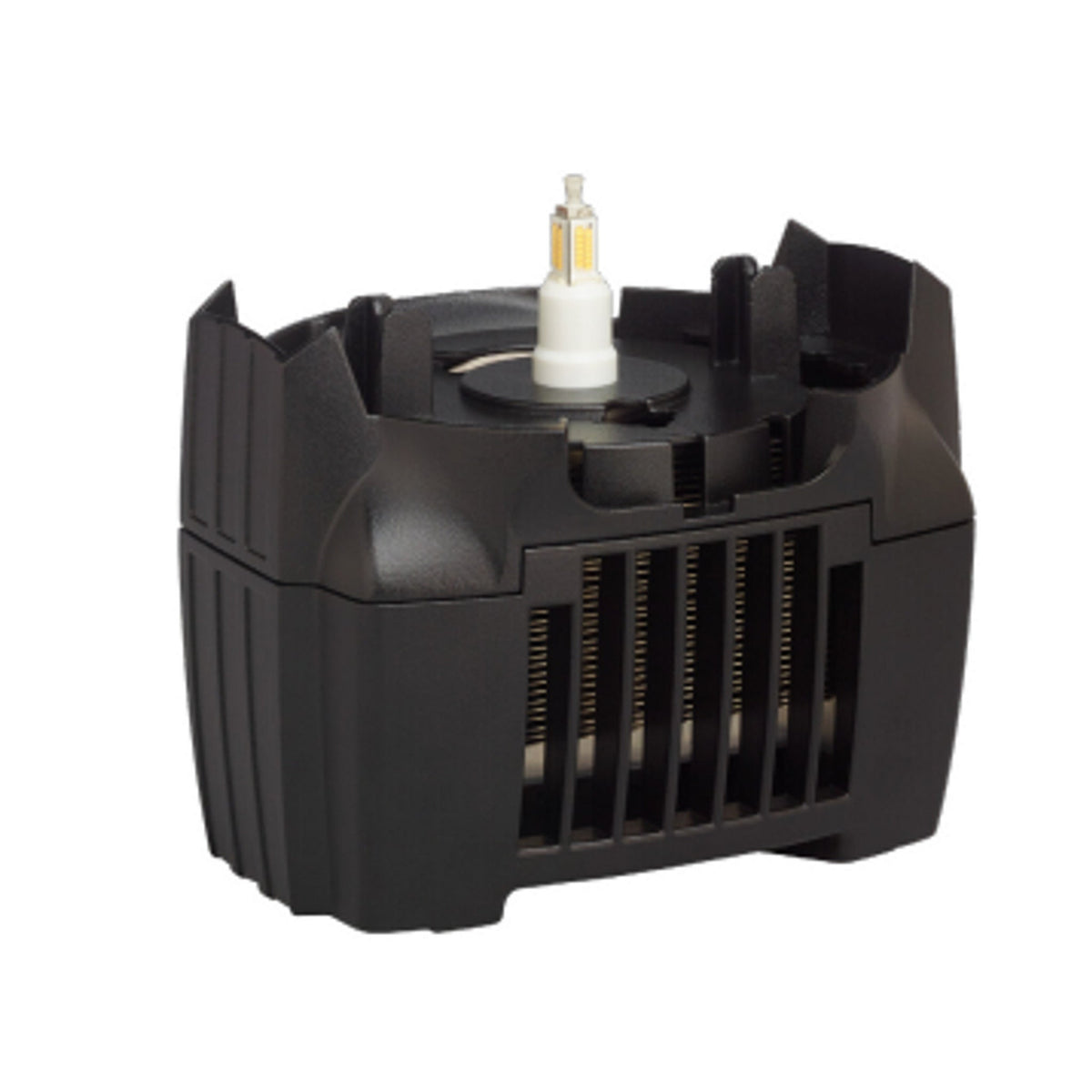

ETC Source 4WRD II LED Retrofit Kit with Multiple Configurations - Black Twist Lock
In stock SKU: ETC-S4WRDII-7067A1114C

RhythmVault

ETC Source 4WRD II LED Retrofit Kit with Multiple Configurations

$548.78

ETC Source 4WRD II LED Retrofit Kit with Multiple Configurations The ETC Source 4WRD II provides a direct, nondestructive replacement of the incandescent burner in a Source Four fixture, converting it into a high-performance white‑light LED. Ideal for retrofitting venues with theatrical lighting, it delivers significant...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

ETC Source 4WRD II LED Retrofit Kit with Multiple Configurations

The ETC Source 4WRD II provides a direct, nondestructive replacement of the incandescent burner in a Source Four fixture, converting it into a high-performance white‑light LED. Ideal for retrofitting venues with theatrical lighting, it delivers significant energy savings while maintaining brightness and beam quality.

Available in professional-grade 3200 K (80 or 90+ CRI) and 5900 K (90+ CRI) color options, the unit supports both DMX dimming and line dimming. It offers easy lens tube interchangeability (5–90°) and runs cool, reducing lamp maintenance and heat load.

Key Features

  • LED Output: Up to 11,953 lumens (3200 K standard) with lumens per watt of 76.2 at 120 V.
  • Color Options: 3200 K (80 or 90+ CRI), 5900 K (90+ CRI gallery, daylight gallery).
  • Dimming: DMX/RDM control via RJ45 (1‑ch intensity) and line dimming compatibility.
  • Lens Tubes: Swappable between 5 – 90° field angles, pattern projection compatible.
  • Cooling: Fan‑cooled (28 dBa @1 m), ambient 5 °C–50 °C operation.
  • Durability: Die‑cast aluminum housing, IP20 rated (indoor only).
  • Electrical: 114–125 V 60 Hz or 209–252 V 50/60 Hz; typical power 150 W (120 V) or 175 W (230 V).
  • Certifications: UL 1573/1598C, CSA C22.2 No. 166, CE compliant.
  • Warranty: Fixture body – 5 years; LED array – 10 years.

Technical Specifications

  • Max Lumens: 11,430 lm (standard 3200 K) / 9,716 lm (gallery) / 10,333 lm (daylight gallery)
  • Lumens per Watt: 76.2 (standard), 64.8 (gallery), 68.9 (daylight gallery) @120 V; 65.3/55.5/59.0 @230 V
  • L70 Rating: >45,000 hours
  • Gate Size: 79 mm
  • Inrush Current: 30 A @120 V; 12 A @230 V
  • Current Draw: 1.26 A @120 V; 0.75 A @230 V
  • Standby Power: 1.2 W @120 V; 3.7 W @230 V
  • dBA: 28 dBa (average @1 m)
  • BTU/h: 529 @120 V; 597 @230 V
  • Ambient Temp Range: 5 °C to 50 °C
  • IP Rating: IP‑20 (indoor)
  • Materials: Die‑cast aluminum
  • Control Interface: 7‑segment display, DMX/RDM via RJ45, local level control

What's Included

  • Source 4WRD II LED Retrofit Unit
  • LED mounting post
