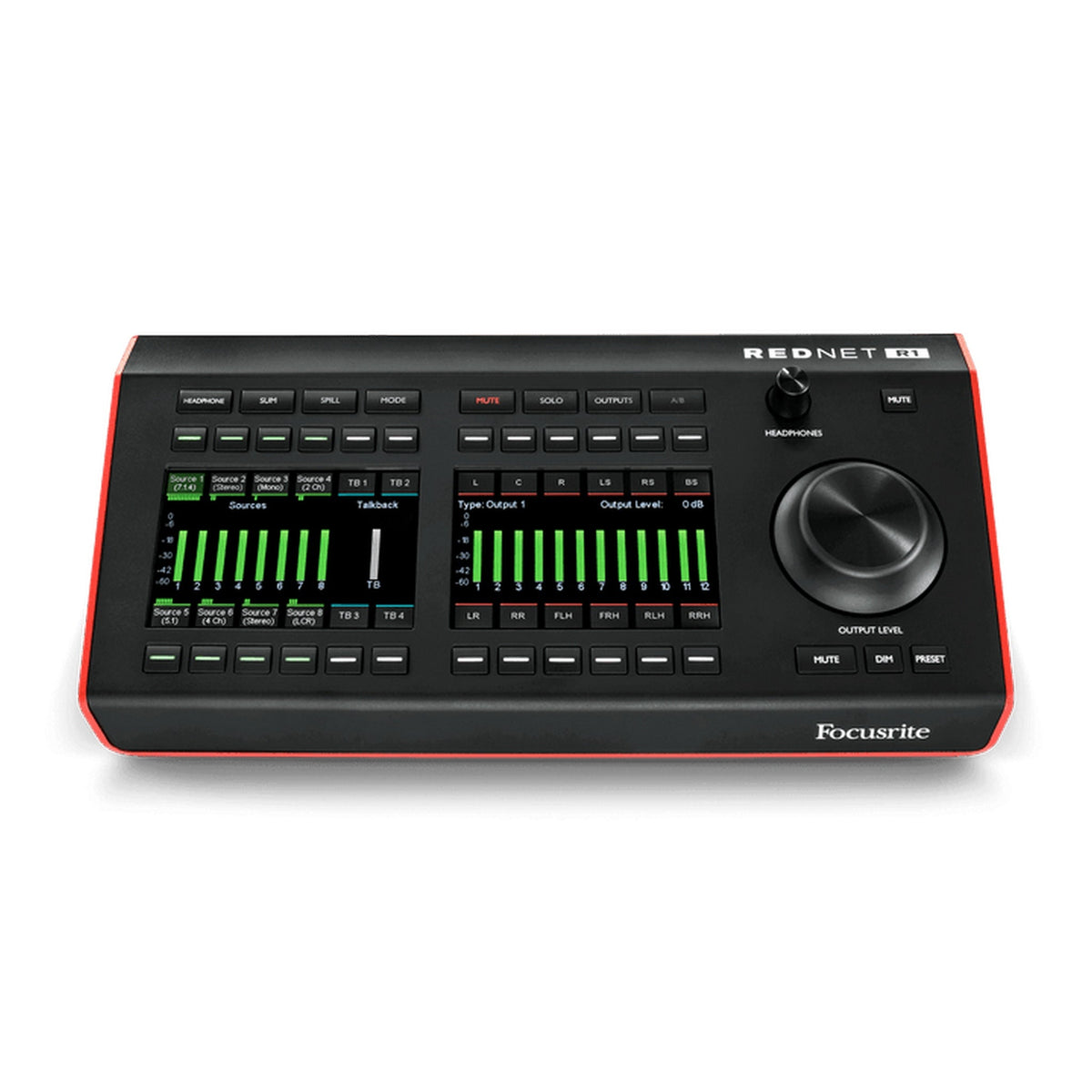

Focusrite RedNet R1 Desktop Remote Controller

Focusrite RedNet R1 Desktop Remote Controller

The RedNet R1 is a studio-grade desktop remote controller designed for RedNet and Red interface systems. It centralizes monitoring, talkback, signal selection, and immersive audio workflows like Dolby Atmos into one elegant, Dante-enabled hub.

Key Features

• Source Control: Select from up to 8 source groups (32 total channels across analog, digital, DAW, ADAT, Dante)—summable, soloable, and routable to monitor outputs.
• Monitor Output Configurations: Supports from mono to 7.1.4 surround (perfect for Dolby Atmos) or custom setups up to 12 outputs.
• Monitoring Controls: Includes level, reference preset, mute, dim, solo, A/B switching, and fold-down presets for quick downmix checks.
• Talkback & Headphone: Built-in talkback mic plus XLR input, supported by high-powered headphone output. Offers up to four talkback destinations (with Red interface) or one with other Dante gear.
• Displays: Dual LCD screens for accurate metering and intuitive menu navigation.
• Control Setup: Configure extensive workflows via RedNet Control software; includes footswitch input for talkback or LFE muting.
• Power Options: Supports PoE (Power-over-Ethernet) or 12V DC supply—streamlining cabling.
• Plugin Bundle: Comes with Brainworx bx_console Focusrite SC plugin—an emulation of the legendary Focusrite Studio Console .

Technical Specifications

• Dimensions: 265 mm × 58 mm × 135 mm (W × H × D)
• Weight: 0.85 kg
• Sample Rates Supported: 44.1, 48, 88.2, 96 kHz at 24-bit
• Clock Source: Internal or Dante network master clock
• Connections: RJ-45 (Dante), XLR mic,¼″ footswitch, ¼″ headphones

What's Included

• 1x RedNet R1 unit
• 1x DC 12V power supply and PoE support
• 1x Ethernet cable
• 1x Safety and Quick Start documentation
• RedNet Control software access
• Brainworx bx_console Focusrite SC plugin
• 3-year Focusrite warranty
