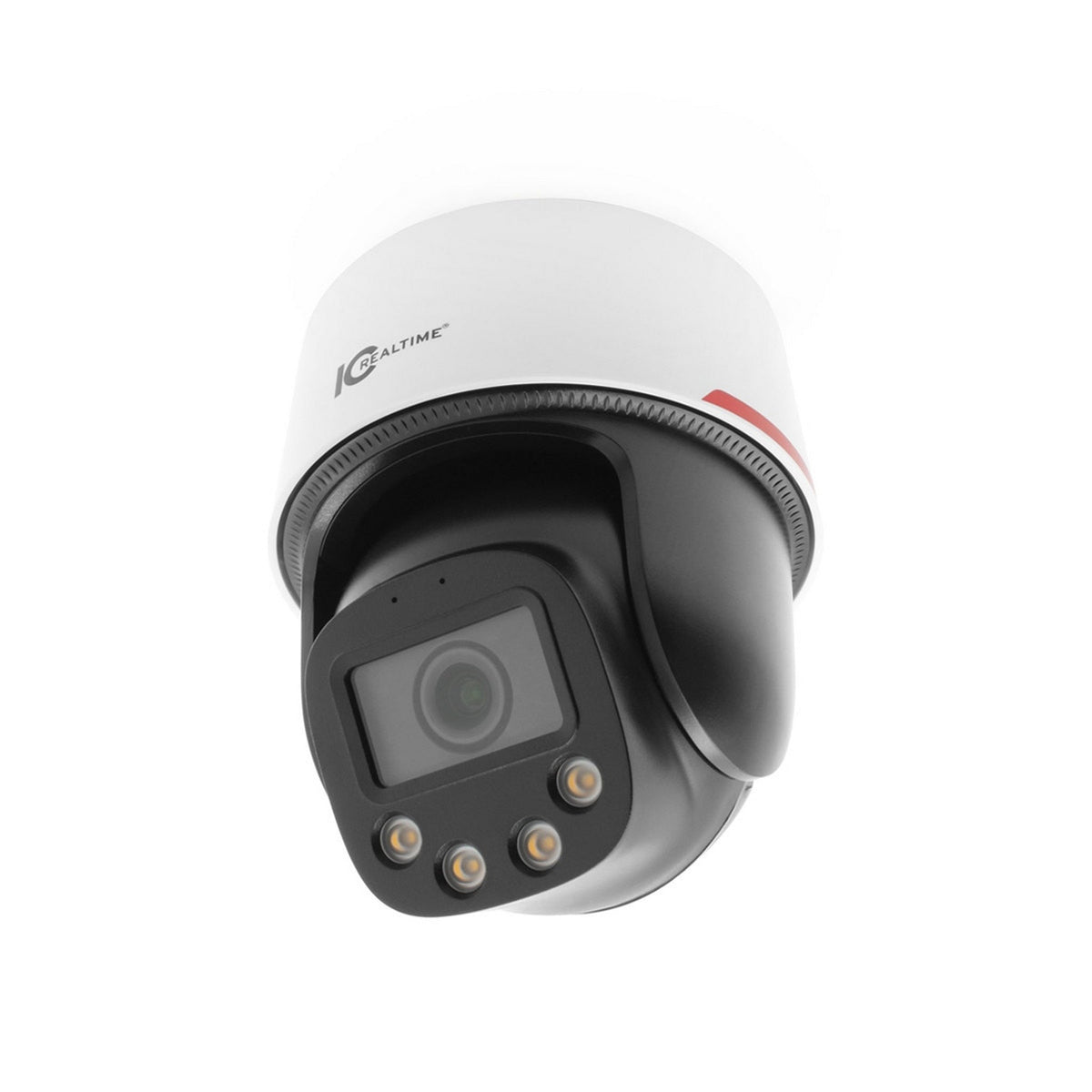

IC Realtime IPMX-P40F-W1-LED 4MP Full-Color LED AI PTZ Network Camera

Overview

The IC Realtime IPMX-P40F-W1-LED is a compact 4MP pan-tilt-zoom camera designed for full-color monitoring in any lighting environment. Equipped with a 1/1.8 inch STARVIS CMOS sensor, warm LED illumination, and advanced AI features including perimeter protection and human auto-tracking, this camera delivers 24/7 accurate and intelligent surveillance. With built-in microphone and speaker for two-way talk, IP66 weatherproof housing, and support for PoE or 12V DC power, it is ideal for residential, commercial, and perimeter applications.

Key Features

• 1/1.8 inch 4 megapixel STARVIS CMOS sensor
• Pan, tilt, and digital zoom with 4 mm fixed lens
• Built-in microphone and speaker for two-way audio
• Up to 30 fps at 4MP resolution with Smart H.265+ encoding
• Intelligent Motion Detection (iMD) with human/vehicle filtering
• AI-based human auto-tracking for dynamic monitoring
• Perimeter protection supporting tripwire and intrusion detection
• Full-color video with warm LED illumination up to 98 ft
• IP66-rated weatherproof housing for outdoor use
• Edge recording via microSD card up to 256GB
• Power options: 12V DC or PoE (802.3af)

Technical Specifications

• Image Sensor: 1/1.8 inch CMOS
• Resolution: 4MP (2560 x 1440)
• Lens: 4 mm fixed focal length, F1.0 aperture
• Angle of View: 97 degrees horizontal, 52 degrees vertical
• Illumination: Warm LEDs, up to 98 ft
• Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Frame Rate: Up to 30 fps at 4MP
• Audio: Built-in microphone and speaker
• Video Streams: Dual stream
• Smart Features: Auto-tracking, tripwire, intrusion, iMD
• Networking: RJ-45 10/100 Base-T, ONVIF compatible
• Storage: microSD card up to 256GB, FTP
• Ingress Protection: IP66
• Operating Temperature: -22F to 131F (-30C to 55C)
• Power: 12V DC or PoE (802.3af)
• Power Consumption: Max 9.5W (PTZ movement + LEDs)
• Dimensions: 6.04 in x 5.09 in (153.5 mm x 129.3 mm)
• Weight: 1.46 lb (0.66 kg)
