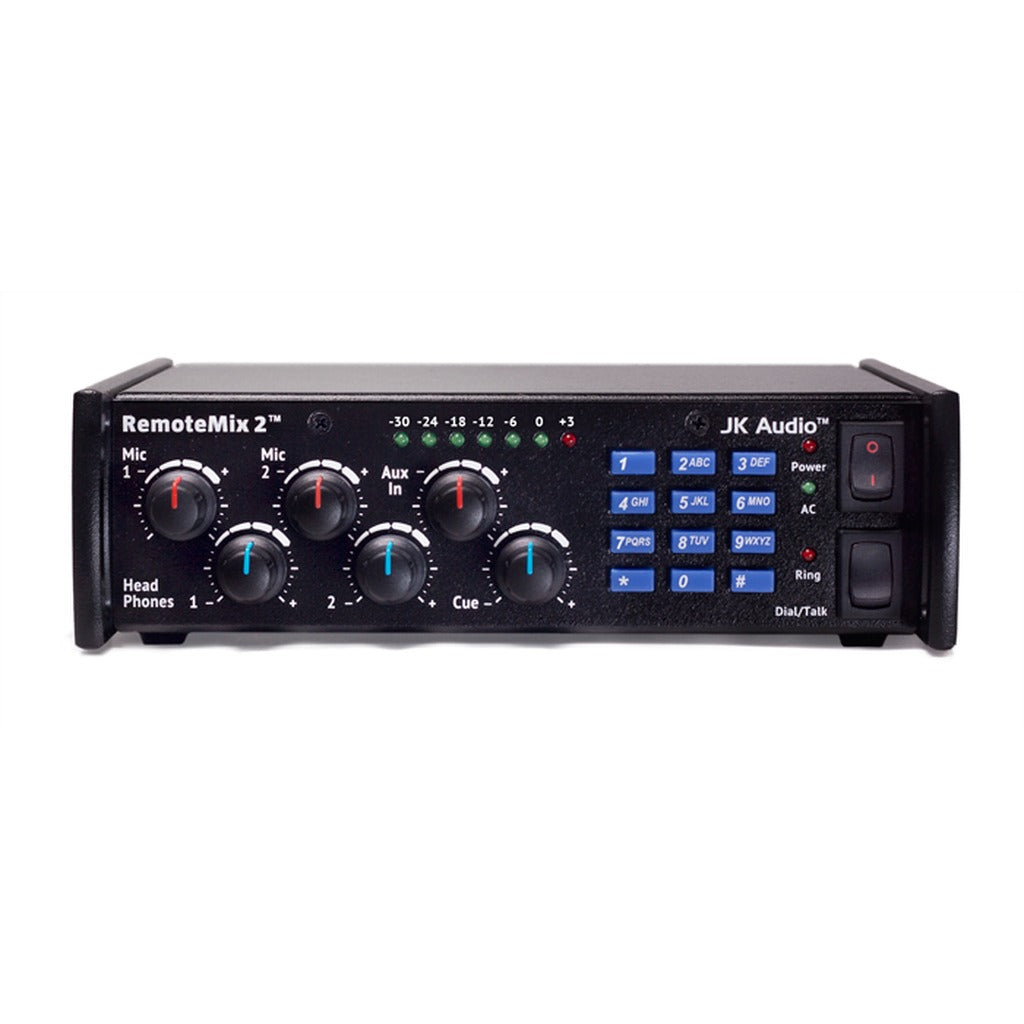

JK Audio RM2 RemoteMix 2 Two-Channel Broadcast Field Mixer with Phone Hybrid

Built for the remote broadcast environment, the JK Audio RemoteMix 2 pairs a two-channel field mixer and headphone amplifier with a communications interface for remote broadcast, IFB, or a backup audio path. Everything is designed to work together, saving setup time and wiring in the field.

Two XLR mic inputs with mic/line pad feed a balanced XLR mix output, and two 1/4 in headphone outputs with individual level controls provide sidetone for all inputs plus an external cue feed. A phone line hybrid with DTMF keypad and a wired notebook or cell phone headset interface let you send and receive over POTS, a smartphone, or a laptop.

TV crews can send and receive interview audio while pulling IFB off the phone line, cell phone, or notebook; radio crews can use it as a front-end mixer for a POTS, VoIP, or smartphone codec, or call into the studio talk show hybrid. Power comes from two hot-swappable 9 V batteries or the included 100-240 VAC supply.

Features

• Two XLR mic inputs with mic/line pad switch
• Two 1/4 in headphone outputs with individual level controls
• Phone line hybrid with DTMF keypad and redial
• Wired cell phone / notebook headset interface (3.5 mm TRRS), HD Voice compatible
• Balanced XLR mix output, 3.5 mm send/receive jacks, LED VU meter
• Hot-swappable dual 9 V batteries plus 100-240 VAC external power supply

Technical Specifications

• Mic Inputs: 2 x female XLR, 2k ohms, -25 dBu nom, mic/line pad (+6 dBu max)
• Aux Line In: 3.5 mm stereo, 20k ohms, -10 dBu nom
• Cue Input: 1/4 in mono, 20k ohms, -10 dBu nom
• Mix Out: Balanced male XLR, +16 dBu max, 20 Hz - 20 kHz +/- 1 dB
• Line Out: 3.5 mm stereo, 100 ohms, -10 dBu nom
• Headphones: 2 x 1/4 in stereo, 8 ohms, 1/3 W per channel
• Phone Line: RJ11C; Ringer 0.5B REN; Isolation 3750 VAC
• Power: 100-240 VAC external supply or two 9 V batteries
• Size: 7.75 x 6.5 x 2.3 in
• Weight: 2.1 lb (960 g)

What's Included

• Universal power supply with detachable cord
• 3.5 mm 4-conductor wireless interface cable
• 60 in RJ11 phone cord
