JMAZ Electro T5 RGBW+WW LED Tube Light Kit, 4 Pack

JMAZ Electro T5 RGBW+WW LED Tube Light Kit, 4 Pack

The JMAZ JP2004 Electro T5 4PK 100W RGBW+WW LED Tube Kit is a high-CRI battery-powered outdoor LED pixel tube package with four Electro T5 fixtures, 32-pixel control, wireless operation, and IP65 protection for professional stage, video, and event lighting.

This RGBW+WW LED tube kit suits production teams, houses of worship, touring crews, broadcast studios, and event designers who need a portable pixel tube lighting package with accurate whites and saturated color. Each tube delivers 100W output from 192 dual-chip LEDs, with up to 15 hours of runtime or 30 hours in battery saver mode.

Designed for professional workflows, the Electro T5 4PK supports DMX512, Wireless DMX, Wi-Fi, and IR remote control. CRI, CQS, and TLCI ratings of ≥95 help maintain camera-ready color accuracy, while 20kHz refresh, fanless cooling, and CE, FCC, and RoHS certifications support demanding live and production environments.

Key Features

• Complete Four-Fixture Package: Includes four Electro T5 RGBW+WW LED tubes housed in a rugged injection-molded case for transport, storage, and deployment.
• 100W High-CRI Tubes: Each tube uses 192 dual-chip 0.5W LEDs with CRI, CQS, and TLCI ratings of ≥95 for accurate color reproduction.
• RGBW+WW Color Mixing: Full-spectrum color control with CTO adjustment from 2500K to 10000K supports warm, cool, and creative lighting looks.
• 32-Pixel Control: Individual pixel zones enable mapped effects, animated chases, fades, static looks, and immersive color washes.
• Battery-Powered Runtime: Integrated lithium-ion batteries provide up to 15 hours of runtime, or up to 30 hours in battery saving mode.
• Outdoor-Ready Build: IP65-rated construction supports indoor and outdoor applications for events, installs, touring, and production.
• Flexible Control Options: DMX512, Wireless DMX, Wi-Fi, and IR remote control support multiple programming and deployment workflows.
• Production-Ready Case: The included road case fits up to six Electro T5 fixtures for future expansion.

Technical Specifications

• SKU: JP2004
• Product Type: RGBW+WW high-CRI battery-powered outdoor LED pixel tube kit
• Light Source: 192 x 0.5W RGBW+WW LEDs
• Tube Power: 100W per tube
• LED Life Expectancy: 50,000 hours
• Color System: RGBW+WW color mixing, 8/16-bit
• CTO Range: 2500K to 10000K
• Beam Angle: 180°
• Pixel Control: 32 pixels
• Dynamic Effects: Individual dynamic chase, fade, static, and sound-active modes
• Battery Runtime: Up to 15 hours; up to 30 hours in battery saving mode
• Charging Time: 5 hours
• Battery Saving Modes: 25%, 50%, 75%, 100%
• Preset Color Programs: 49
• Sound-Active Modes: 4 advanced sound-active modes with 49 color options
• Built-In Programs: 68 auto/fade programs
• Control Protocols: DMX512, Wireless DMX, Wi-Fi, IR remote
• DMX Personalities: CT-4CH; HSI-4CH; CCT/HSI-6CH; 16-Bit-13CH; RCGCW+S-7CH; Macro12CH; Pix8-40CH; Pix16-80CH; Pix32-160CH
• Display: OLED graphical display
• Dimmer: 0–100% linear dimmer
• CRI: ≥95
• CQS: ≥95
• TLCI: ≥95
• Refresh Rate: 20kHz
• Strobe Shutter: 0–25Hz
• Dimming Modes: Linear, Exponential, Logarithmic, S-Curve
• Body Material: Polycarbonate and aluminum
• IP Rating: IP65
• Cooling: Fanless
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• PWM: 1.5kHz
• Battery Voltage: 12.6V / 18Ah
• Battery Capacity: 21,700mAh, 273.4Wh
• Charger: 12.6V, 2A
• Rechargeable Battery Type: UL Listed lithium-ion
• Certifications: CE, FCC, RoHS
• Operating Temperature: 40°C / 104°F
• Minimum Temperature: -10°C / 14°F
• Maximum Temperature: 60°C / 140°F

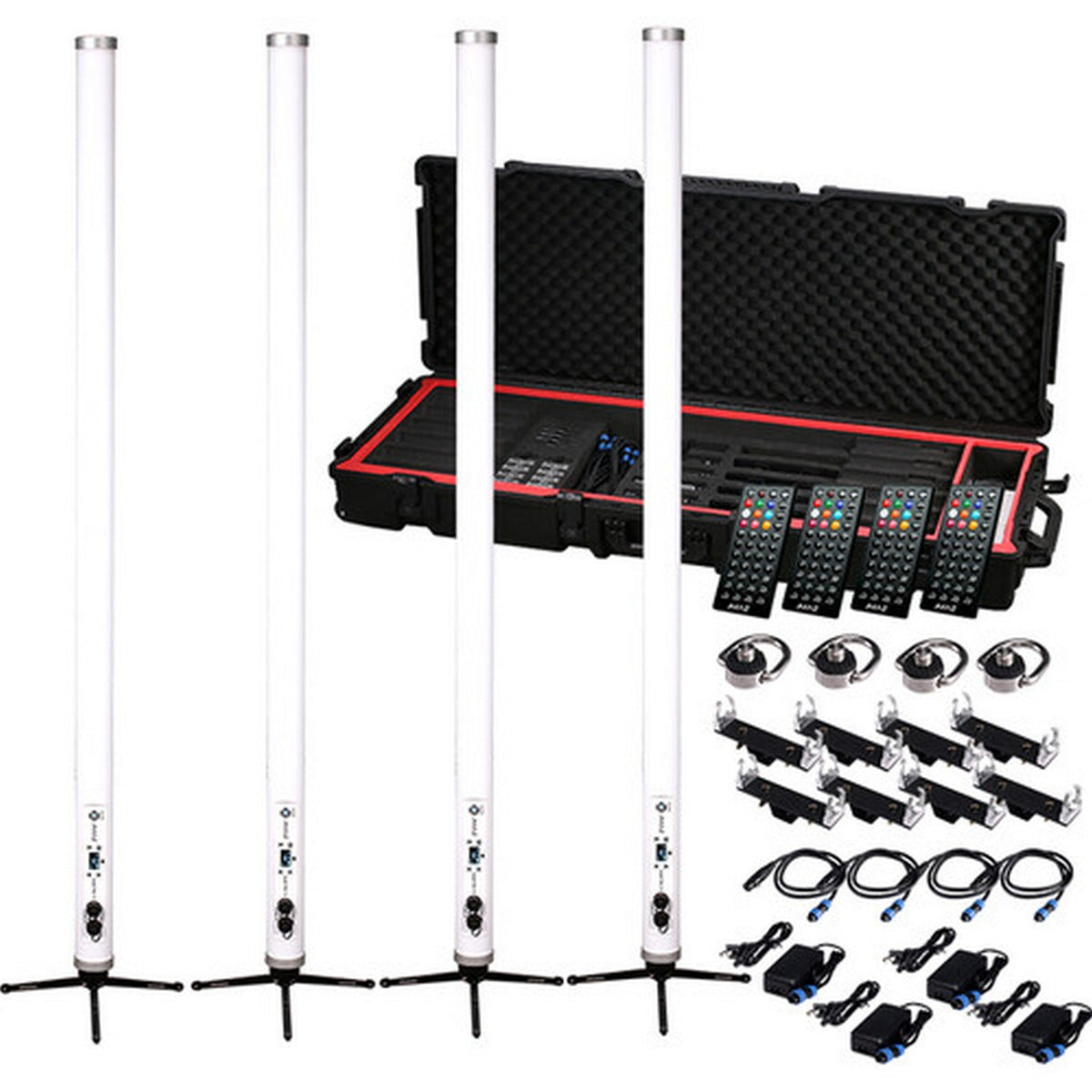

What's Included

• Electro T5 RGBW+WW LED Tubes: 4
• Injection-Molded Case: 1
• Tripod Stands: 4
• Eyebolts: 4
• Metal Tube Holders: 8
• Wing Plates for Truss Mounts: 4
• 5-Pin DMX Cables: 8 male and female cables
• 5-Pin Chargers: 5
• IR Remotes: 4
• Quick Start Guide: 1
• Manual: 1
