Kramer Multimode 4-Channel LC Fiber Optic Cable
Kramer C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this...
PRODUCT DETAILS
Everything you need to know.
Kramer C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable

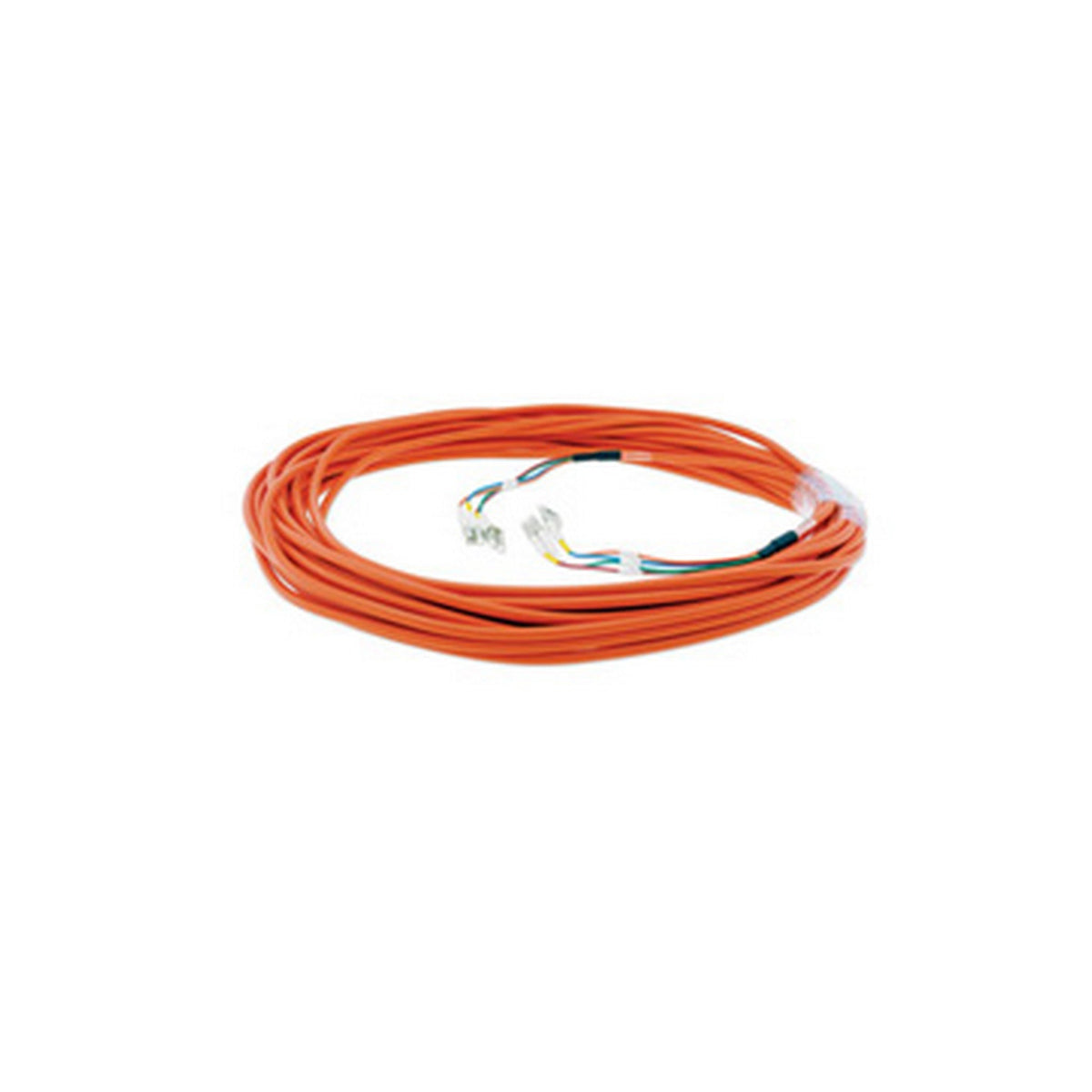

The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.
Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.
Key Features
- Fiber Type: Multimode 50/125µm optical fiber
- Connector: 4 × LC (male) to 4 × LC (male)
- Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
- Outer Jacket: 7.0 mm diameter, orange color
- Color-Coded Cores: Red, green, blue, and orange
- Insertion Loss: 0.3 dB
- Operating Wavelength: 850 nm
- Temperature Range: −40° to 80°C (−40° to 176°F)
- Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
- Compatibility: 610T/R, 621T/R, 631T/R optical extenders
Technical Specifications
- Fiber: Multimode 50/125µm
- Fiber Cord: 2.0 mm × 4, PVC (OFNR)
- Outer Diameter: 0.275" (7.0 mm)
- Operating Wavelength: 850 nm
- Insertion Loss: 0.3 dB
- Temperature Range: −40° to 80°C (−40° to 176°F)
- Connector Ends: LC (male) to LC (male), with dust caps
- Lengths Available: 98 ft to 328 ft
What's Included
- 1 × Kramer C-4LC/4LC fiber optic cable (selected length)
KRAMER C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable
The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.
Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.
Key Features
- Fiber Type: Multimode 50/125µm optical fiber
- Connector: 4 × LC (male) to 4 × LC (male)
- Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
- Outer Jacket: 7.0 mm diameter, orange color
- Color-Coded Cores: Red, green, blue, and orange
- Insertion Loss: 0.3 dB
- Operating Wavelength: 850 nm
- Temperature Range: −40° to 80°C (−40° to 176°F)
- Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
- Compatibility: 610T/R, 621T/R, 631T/R optical extenders
Technical Specifications
- Fiber: Multimode 50/125µm
- Fiber Cord: 2.0 mm × 4, PVC (OFNR)
- Outer Diameter: 0.275" (7.0 mm)
- Operating Wavelength: 850 nm
- Insertion Loss: 0.3 dB
- Temperature Range: −40° to 80°C (−40° to 176°F)
- Connector Ends: LC (male) to LC (male), with dust caps
- Lengths Available: 33 ft (10 m) to 1640 ft (500 m)
What's Included
- 1 × Kramer C-4LC/4LC fiber optic cable (selected length)
