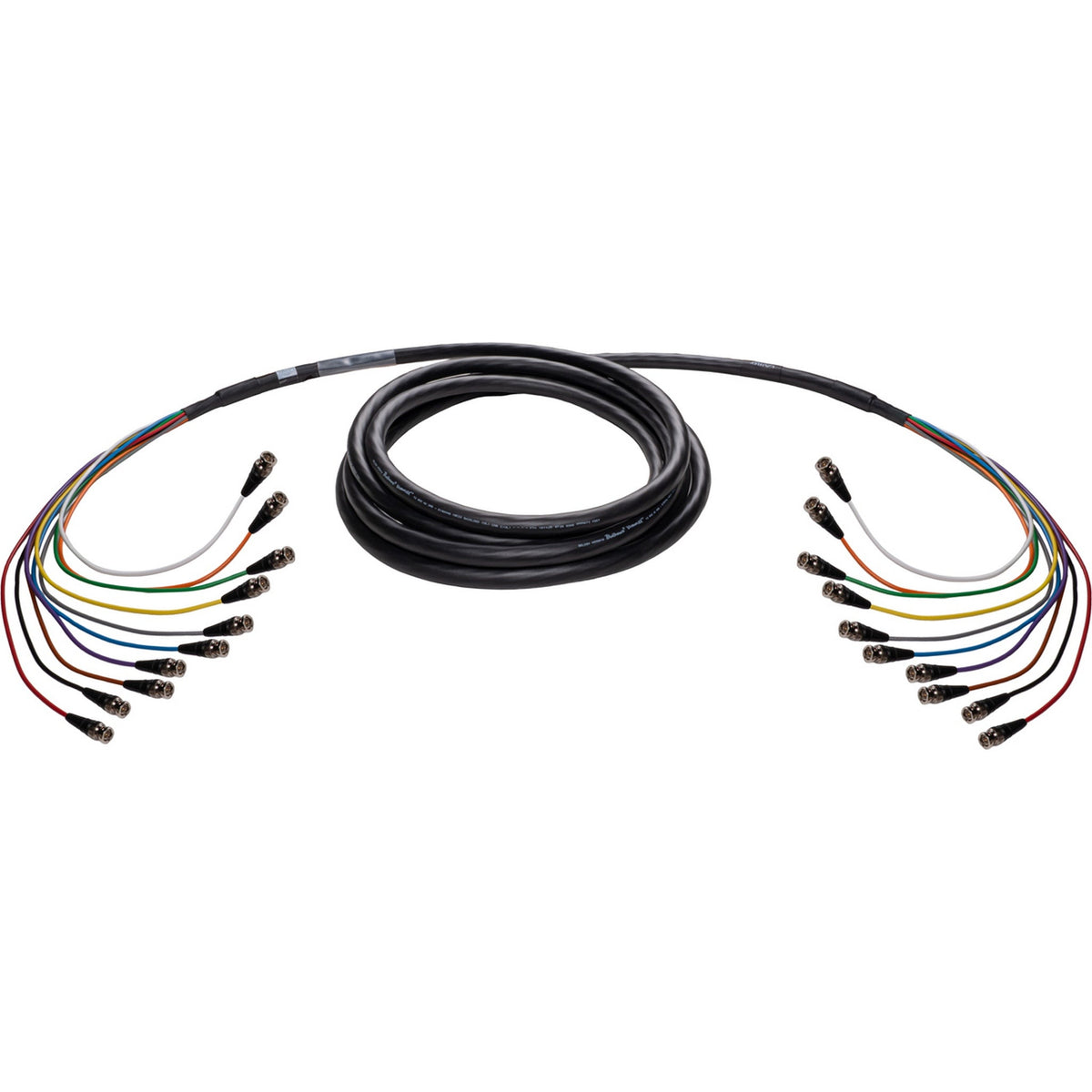

Laird 4855R10 10-Channel 12G-SDI BNC Cable Snake Assembly
In stock SKU: LDC-4855R10BB015

RhythmVault

Laird 4855R10 10-Channel 12G-SDI BNC Cable Snake Assembly

$318.37

Laird 4855R10 10-Channel 12G-SDI BNC Cable Snake Assembly The Laird 4855R10 BNC cable series is a 10 channel miniature coax snake built with Belden 4855R10 cable and Amphenol RF BNC connectors for UHD and 4K video workflows. It is designed to deliver...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Laird 4855R10 10-Channel 12G-SDI BNC Cable Snake Assembly

The Laird 4855R10 BNC cable series is a 10 channel miniature coax snake built with Belden 4855R10 cable and Amphenol RF BNC connectors for UHD and 4K video workflows. It is designed to deliver clean 12G-SDI performance over extended distances with strong signal integrity.

Each channel is rated for 12G-SDI and Laird certifies a maximum transmission distance of 117 ft for 12G-SDI ST 2082 signals with no CRC errors. The cable construction supports low return loss performance up to 12 GHz to help maintain reliable video and ancillary data transport.

With a space saving multi-channel design and flexible handling, this assembly is well suited for studio and field applications. It is available in male-to-male and male-to-female configurations to match common patching and routing needs.

Key Features

  • 10-channel snake: Space saving 10 channel BNC cable assembly for clean routing.
  • 12G-SDI rated channels: Each channel is rated for 12G-SDI workflows.
  • Laird certified distance: Certified maximum 12G-SDI transmission distance of 117 ft with no CRC errors.
  • Belden miniature coax: Built with Belden 4855R10 miniature coaxial cable construction.
  • Amphenol RF BNC: Terminated with Amphenol RF BNC connectors rated to 12 GHz.
  • Flexible use: Suitable for studio or field applications with easy handling and portability.
  • Configurable ends: Available in male-to-male and male-to-female configurations.

Technical Specifications

  • Channels: 10.
  • Cable: Belden 4855R10 miniature coaxial cable.
  • RG type: Mini RG-59.
  • Conductor: 23 AWG solid silvered copper.
  • Insulation material: Polyethylene foam.
  • Shield type: Tape plus braid.
  • Shield coverage: Tri-laminate 100 percent plus tinned copper braid 95 percent.
  • Characteristic impedance: 75 ohms.
  • Return loss: 23 dB 5 to 1600 MHz, 21 dB 1600 to 4500 MHz, 15 dB 4500 to 12000 MHz.
  • Velocity of propagation: 82 percent.
  • UL voltage rating: 300 V RMS CMR.
  • Operating temperature: -22 F to 167 F, -30 C to 75 C.
  • Minimum bend radius: 7.9 in.
  • Maximum pull tension: 330 lb.
  • Connector: Amphenol RF BNC, 75 ohms, maximum frequency 12 GHz.
  • Connector materials: Brass body with nickel finish, gold contact finish, PTFE insulator.
