Laird 4855R10-D-BF Mini RG-59 DIN 1.0/2.3 Male to BNC Female 12G-SDI/4K UHD Belden 10-Channel Snake Cable
In stock SKU: LDC-4855R10DBF015

RhythmVault

Laird 4855R10-D-BF Mini RG-59 DIN 1.0/2.3 Male to BNC Female 12G-SDI/4K UHD Belden 10-Channel Snake Cable

$302.21

Laird 4855R10-D-BF Mini RG-59 DIN 1.0/2.3 Male to BNC Female 12G-SDI/4K UHD Belden 10-Channel Snake Cable Product Overview The Laird 4855R10-D-BF is a 10-channel 12G-SDI and 4K UHD DIN snake cable assembly built with Belden 4855R mini RG-59 coax and terminated with...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

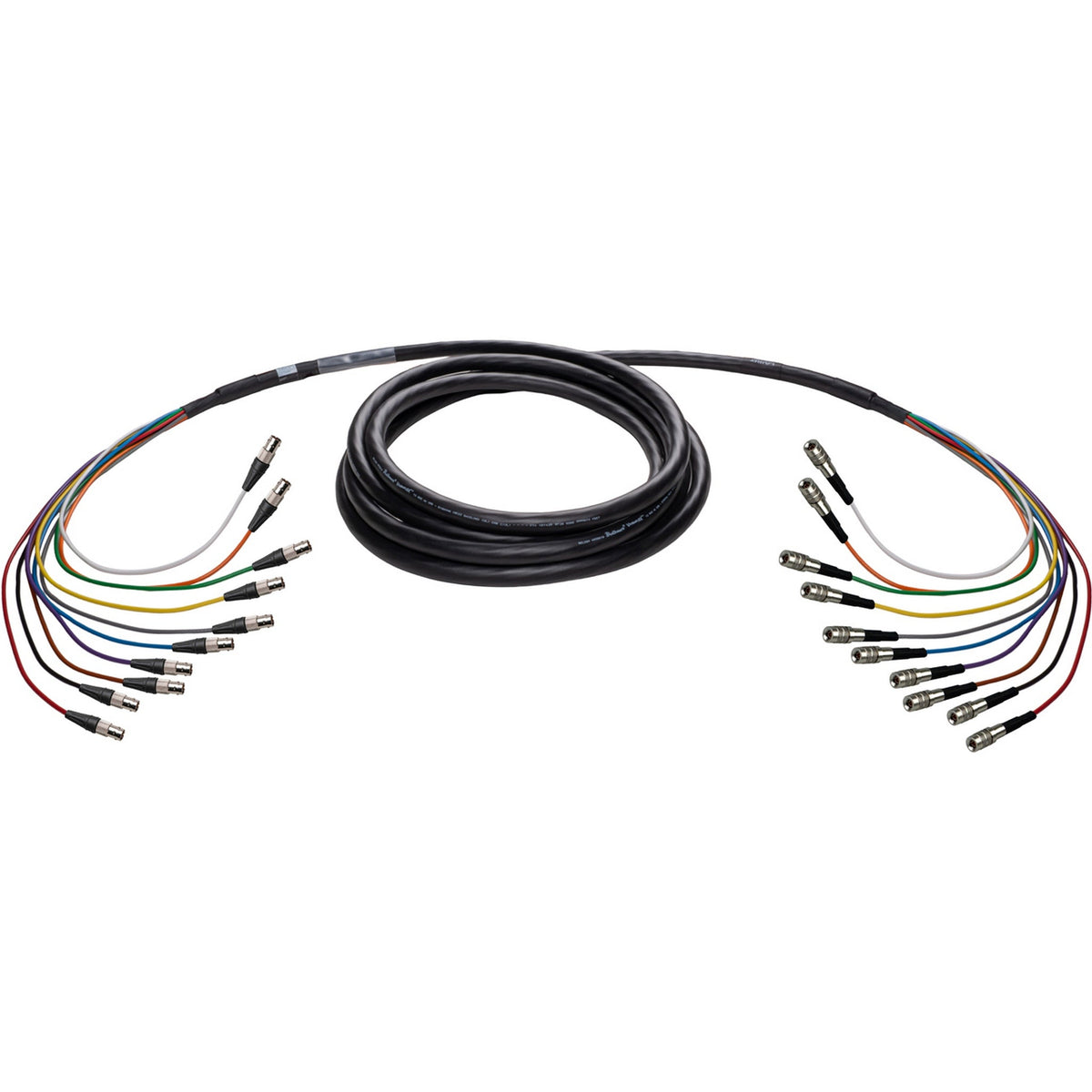

Laird 4855R10-D-BF Mini RG-59 DIN 1.0/2.3 Male to BNC Female 12G-SDI/4K UHD Belden 10-Channel Snake Cable

Product Overview

The Laird 4855R10-D-BF is a 10-channel 12G-SDI and 4K UHD DIN snake cable assembly built with Belden 4855R mini RG-59 coax and terminated with DIN 1.0/2.3 male connectors to BNC female connectors. It is designed for clean signal delivery up to 12 GHz for UHD workflows.

Laird certifies a maximum transmission distance of 117 ft for 12G-SDI. Belden may list 149 ft, but Laird’s maximum transmission standard requires signal integrity to remain 100% functional without any CRC errors.

Key Features

  • 10-channel snake design: Space-saving multi-channel assembly.
  • 12G-SDI rated channels: Each channel rated for 12G-SDI.
  • Connector configuration: DIN 1.0/2.3 male to BNC female.
  • Flexible for studio or field: Flexible cable suitable for studio or field applications.
  • Handling: Easy handling and portability.
  • Cable and connector quality: Belden riser-rated 4855R with high-quality DIN 1.0/2.3 and Amphenol RF connectors.

Technical Specifications

  • Cable: Belden 4855R
  • RG type: Mini RG-59
  • Conductor AWG: 23
  • Conductor stranding: Solid
  • Conductor nominal diameter: 0.023 in (0.58 mm)
  • Conductor material: Silvered copper
  • Insulation nominal diameter: 0.102 in (2.59 mm)
  • Insulation material: Polyethylene foam
  • Inner shield type: Layer 1 tape, Layer 2 braid
  • Inner shield material coverage: Layer 1 Tri-Laminate (Alum plus Poly plus Alum) 100%, Layer 2 Tinned copper 95%
  • Inner jacket nominal diameter: 0.159 in (4.03 mm)
  • Inner jacket material: Polyvinyl chloride
  • Outer jacket nominal diameter: 0.786 in (19.96 mm)
  • Outer jacket material: Polyvinyl chloride
  • Return loss: 5 to 1600 MHz 23 dB, 1600 to 4500 MHz 21 dB, 4500 to 12000 MHz 15 dB
  • Nominal conductor DCR: 19.7 Ohm per 1000 ft (64.6 Ohm per km)
  • Nominal inner shield DCR: 3.8 Ohm per 1000 ft (12 Ohm per km)
  • Nominal capacitance conductor to shield: 16.3 pF per ft (53.5 pF per m)
  • Nominal characteristic impedance: 75 Ohm
  • Nominal velocity of propagation: 82%
  • UL voltage rating: 300 V RMS (CMR)
  • Operating temperature: -22 F to 167 F (-30 C to 75 C)
  • Minimum bend radius: 7.9 in (200 mm)
  • Maximum pull tension: 330 lb
  • Amphenol RF connector frequency (max): 12 GHz
  • Amphenol RF connector impedance: 75 Ohm
  • Amphenol RF connector body finish: Nickel
  • Amphenol RF connector body material: Brass
  • Amphenol RF connector contact finish: Gold
  • Amphenol RF connector insulator material: PTFE
  • DIN connector nominal impedance: 75 Ohm
  • DIN connector frequency range: 0 to 12 GHz
  • DIN connector insulator resistance: 1000 MOhm
  • Warranty: Limited lifetime
