Martin Audio FP8 Ultra-Compact Point Source Loudspeaker
In stock SKU: MRTAUD-FP8

RhythmVault

Martin Audio FP8 Ultra-Compact Point Source Loudspeaker

$1,500.00

Martin Audio FP8 Ultra-Compact Point Source Loudspeaker The Martin Audio FP8 is an ultra-compact passive two-way loudspeaker engineered for short-throw applications requiring outstanding sonic performance and consistent coverage. Designed as a premium point-source solution, its coaxial driver configuration with a rotatable HF...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

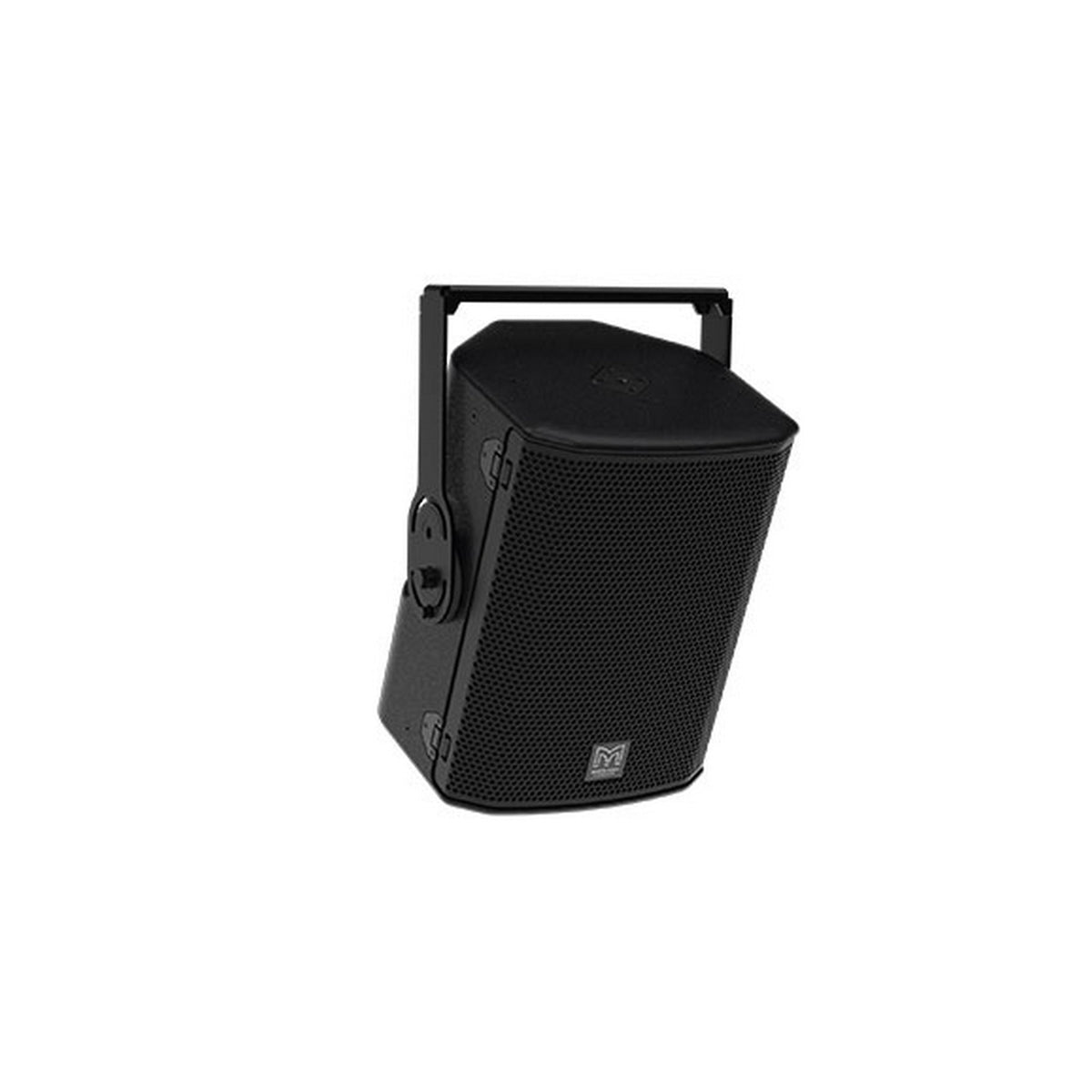

Martin Audio FP8 Ultra-Compact Point Source Loudspeaker

The Martin Audio FP8 is an ultra-compact passive two-way loudspeaker engineered for short-throw applications requiring outstanding sonic performance and consistent coverage. Designed as a premium point-source solution, its coaxial driver configuration with a rotatable HF section delivers smooth, natural audio reproduction with excellent pattern control.

Housed in a durable birch plywood cabinet with multiple mounting points, the FP8 integrates seamlessly into architectural environments such as houses of worship, museums, galleries, restaurants, and theatres. Its compact footprint, dual-angle pole mount, and quick-release grille ensure fast setup and flexible placement for both permanent installations and portable sound reinforcement. With a peak output of 124 dB and a wide 90° x 70° dispersion, the FP8 provides superior clarity in fill, distributed, or standalone speaker applications.

Key Features

  • Ultra-Compact Design: High-performance passive 2-way point-source loudspeaker.
  • Coaxial Driver: Rotatable HF section for seamless portrait or landscape orientation.
  • High Output: Produces up to 124 dB peak SPL.
  • Precision Coverage: Controlled 90° horizontal by 70° vertical dispersion.
  • Premium Components: 8" neodymium LF driver and 1" exit HF compression driver.
  • Durable Build: Birch plywood enclosure with hardwearing textured paint.
  • Quick-Release Grille: Fast access for driver rotation and servicing.
  • Flexible Mounting: Multiple threaded inserts, dual-angle pole mount, and accessory options.
  • Weather Resistance: Rated IP54 when using two speakON NLT4FXX connectors.

Technical Specifications

  • Type: Coaxial passive 2-way
  • Crossover Frequency: 2.0 kHz
  • Frequency Response: 63 Hz – 18 kHz (±3 dB), -10 dB @ 50 Hz with preset
  • LF Driver: 8" woofer with 2" voice coil (neodymium motor)
  • HF Driver: 1" exit compression driver, 1.7" polymer diaphragm
  • Sensitivity: 94 dB (2.83V/1m, free-field)
  • Nominal Impedance: 8 ohms
  • Power Handling: 250W AES / 1000W peak
  • Maximum SPL: 118 dB continuous / 124 dB peak
  • Dispersion: 90° (H) x 70° (V)
  • Connectors: Pair of NLT4MPXX-BAG speakON
  • Enclosure: Birch plywood with hardwearing black paint
  • Grille: Quick-release steel grille with triple-layer polyester backing
  • IP Rating: IP54 (with two NLT4FXX connectors)
  • Mounting Points: 4 x M10, 15 x M6, dual pole-mount socket, 2 handles
  • Dimensions (W x H x D): 14.8" x 11.0" x 10.4"
  • Weight: 20.5 lbs
