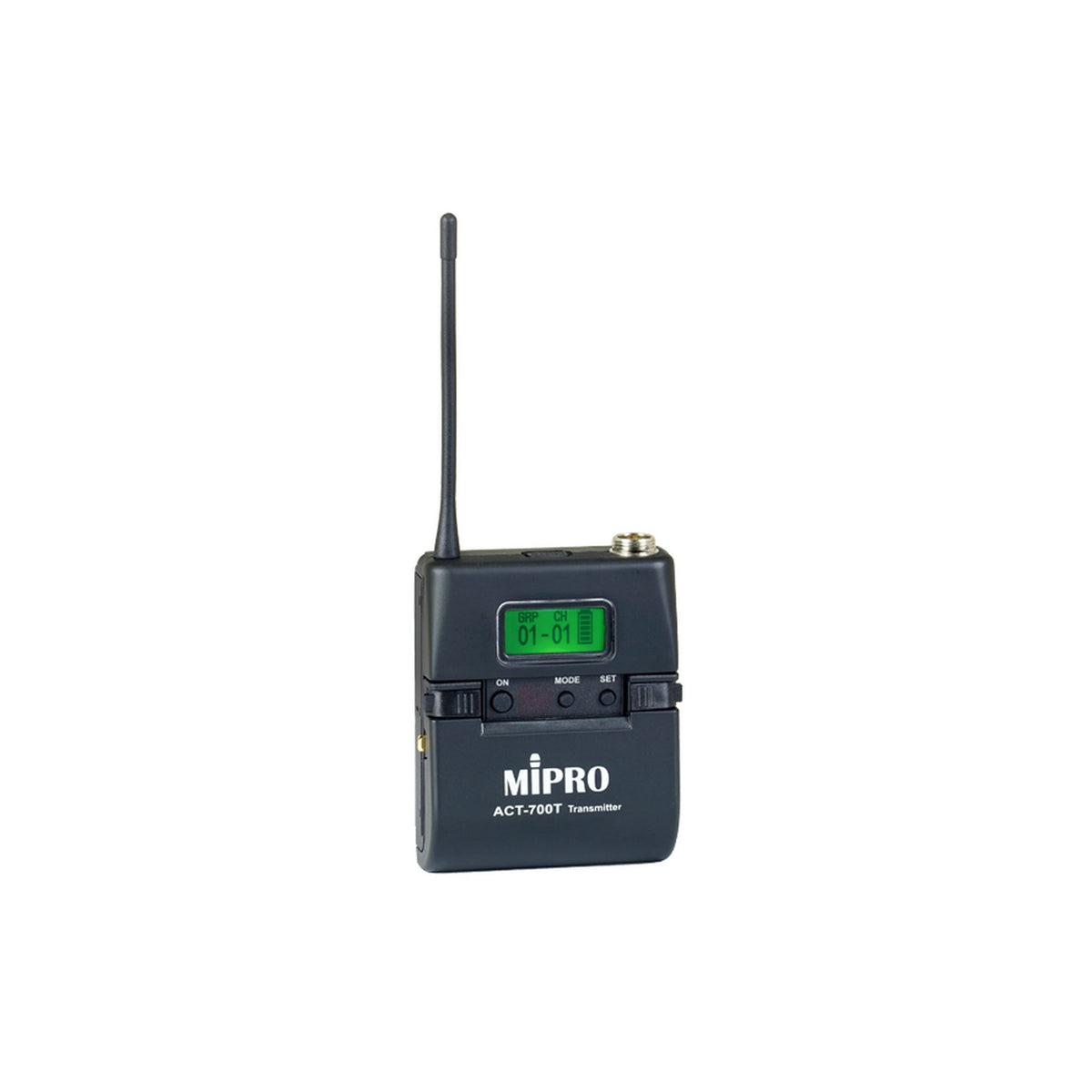

MIPRO ACT-700T-5UA UHF Analog Wideband Bodypack Transmitter

MIPRO ACT-700T-5UA UHF Analog Wideband Bodypack Transmitter

The MIPRO ACT-700T-5UA is a compact, lightweight UHF analog bodypack transmitter covering the 482–554 MHz band. Built for assistive listening systems, it features a durable magnesium-alloy housing, a multifunction backlit LCD, and ACT™ infrared synchronization for quick frequency matching.

It offers switchable RF power (10 mW/50 mW), five gain levels, direct and remote mute control, and menu lockout for reliability in educational, corporate, and tour-guide settings. Power is supplied by one ICR 18500 rechargeable Li-ion battery (13-hour life) or two AA alkalines, with USB-C charging or via MIPRO charging stations.

Key Features

• Frequency Range: 482–554 MHz (Band 5UA)
• Bandwidth: 72 MHz wideband
• RF Power Output: 10 mW / 50 mW switchable
• Oscillation Mode: PLL synthesized
• Frequency Stability: ≤ ±0.005% (–10 °C to +60 °C)
• Modulation Type: Analog
• Max Audio Input: 0 dBV
• Gain Control: 5 switchable levels (–12 dB to +12 dB)
• Display: Multifunction backlit LCD with lockout
• Housing: Magnesium alloy
• Synchronization: ACT™ IR-based sync
• Mute Control: Direct and remote via jack
• Battery: One 18500 Li-ion or two AA alkaline (13 h life)
• Charging: USB Type-C or MP-800/MP-820 station
• Accessory Compatibility: Works with MU55LX lavalier and other MIPRO microphone modules

Technical Specifications

• Frequency Bands: 5UA: 482–554 MHz
• RF Power Output: 10 mW / 50 mW switchable
• Deviation Range: Not available
• Spurious Emission: < 4 nW
• Oscillation Mode: PLL synthesized
• Frequency Stability: ≤ ±0.005% (–10 °C to +60 °C)
• Modulation Type: Analog
• Max Audio Input: 0 dBV
• Input Connector: MIPRO 4-pin mini XLR
• Battery Life: 13 hours
• Dimensions: 2.48" × 3.15" × 0.98" (6.3 × 8.0 × 2.5 cm)
• Weight: 0.21 lbs (0.10 kg) without batteries

What's Included

• MU55LX omnidirectional condenser lavalier microphone
• USB Type-C charging cable
