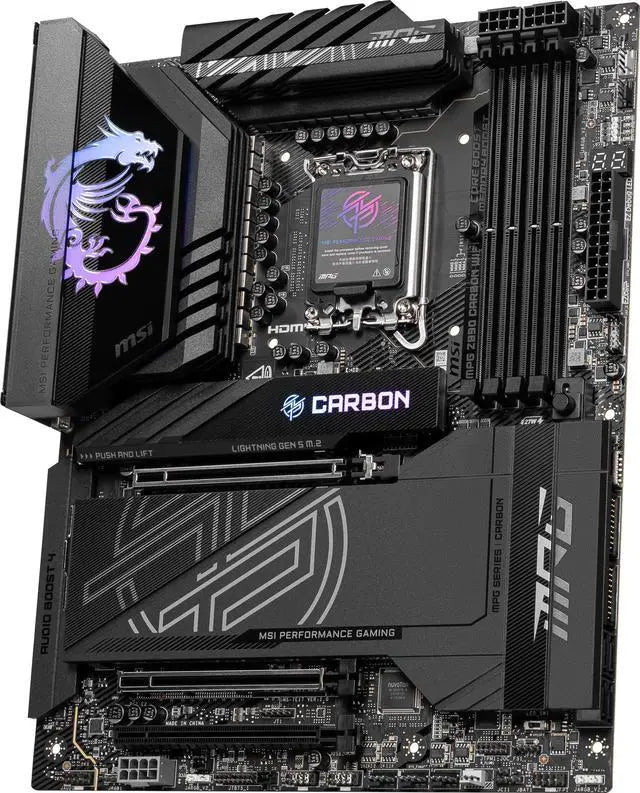

MSI MPG Z890 CARBON WIFI Intel LGA 1851 ATX Motherboard

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard for Intel Core Ultra Series 2

The MSI MPG Z890 CARBON WIFI is a feature-rich ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors, supporting DDR5 memory up to 9200+ MT/s (OC), PCIe 5.0, Thunderbolt 4, Wi-Fi 7, and dual LAN for enthusiast-grade performance.

Ideal for PC builders and gamers seeking a high-performance Intel Core Ultra Series 2 platform, this board suits those looking for a premium Z890 ATX motherboard with fast wireless networking, advanced overclocking support, and extensive connectivity for the best Intel Arrow Lake gaming build.

Backed by MSI's 3-year warranty and engineered with server-grade 8-layer PCB using 2oz thickened copper, the MPG Z890 CARBON WIFI reflects MSI's reputation for premium build quality and long-term reliability in enthusiast motherboards.

Key Features of the MSI MPG Z890 CARBON WIFI

• Intel Z890 Chipset with LGA 1851: Full support for Intel Core Ultra Processors (Series 2) with the latest Arrow Lake architecture for top-tier computing performance.
• DDR5 Memory up to 256GB at 9200+ MT/s: Four UDIMM slots with XMP 3.0 support enable extreme overclocking, delivering the fastest DDR5 speeds available for gamers and content creators.
• PCIe 5.0 and Lightning Gen 5 M.2: The primary PCIe 5.0 x16 slot and M.2_1 PCIe 5.0 x4 slot ensure maximum bandwidth for the latest GPUs and NVMe SSDs.
• Wi-Fi 7 and Dual Killer LAN: Intel Killer BE1750x Wi-Fi 7 (up to 5.8 Gbps, 6GHz tri-band) paired with Intel Killer 5G LAN and Intel I226V 2.5G LAN deliver ultra-low latency, high-speed wired and wireless networking.
• Thunderbolt 4 with USB4: Two rear Thunderbolt 4 ports support up to 40 Gbps data transfer, 8K display output, and daisy-chaining of multiple devices for professional workflows.
• Frozr Guard Thermal System: Enlarged heatsinks with heat-pipe, 7W/mk MOSFET thermal pads, and M.2 Shield Frozr keep temperatures in check during sustained loads and overclocking.
• 20+1+1+1 Phase Power Design: Direct power delivery with dual 8-pin CPU connectors and Core Boost technology ensures stable power for extreme overclocking scenarios.
• EZ DIY Convenience Features: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ Antenna simplify installation and upgrades without extra tools.

Technical Specifications

• Chipset: Intel Z890
• CPU Socket: LGA 1851 (Intel Core Ultra Series 2)
• Form Factor: ATX (243.84mm x 304.8mm)
• Memory Slots: 4x DDR5 UDIMM, max 256GB
• Memory Speed: Up to 9200+ MT/s (OC) / 6400-4800 MT/s (JEDEC); supports XMP 3.0 and CUDIMM
• PCIe Slots: 3x PCIe x16 (PCI_E1: PCIe 5.0 x16 from CPU; PCI_E2: PCIe 5.0 x8 from CPU; PCI_E3: PCIe 4.0 x4 from Chipset)
• M.2 Slots: 5x M.2 (M.2_1: PCIe 5.0 x4; M.2_2: PCIe 4.0 x4; M.2_3-4: PCIe 4.0 x4; M.2_5: PCIe 4.0 x4 / SATA)
• SATA Ports: 4x SATA 6Gbps
• RAID: RAID 0, 1, 5, 10 for SATA and M.2 NVMe devices
• Audio: Realtek ALC1220P, 7.1-Channel USB HD Audio, S/PDIF output
• LAN: Intel Killer E5000B 5G LAN + Intel I226V 2.5G LAN
• Wireless: Intel Killer BE1750x Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), 2.4/5/6GHz tri-band, up to 5.8 Gbps, MU-MIMO
• Bluetooth: Bluetooth 5.4
• Thunderbolt: 2x Thunderbolt 4 (rear), up to 40 Gbps, DisplayPort 2.1, 8K display support
• USB (Rear): 10x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x Thunderbolt 4 (USB-C)
• USB (Front Headers): 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
• Display Output: 1x HDMI 2.1 (8K 60Hz), 2x DisplayPort 2.1 via Thunderbolt 4 Type-C (4K 120Hz / 8K 60Hz)
• Fan Headers: 1x CPU Fan, 1x Combo Fan (Pump/Sys), 5x System Fan, 1x Water Flow connector
• RGB: 3x ARGB V2 headers, 1x RGB LED header, EZ Debug LED x4, EZ Digit Debug LED
• Power Connectors: 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIe power
• Operating System: Windows 11 64-bit
• Dimensions: 14 x 12 x 4 inches / 243.84 x 304.8mm (ATX)
• Weight: 6 lbs
• Warranty: 3 years
