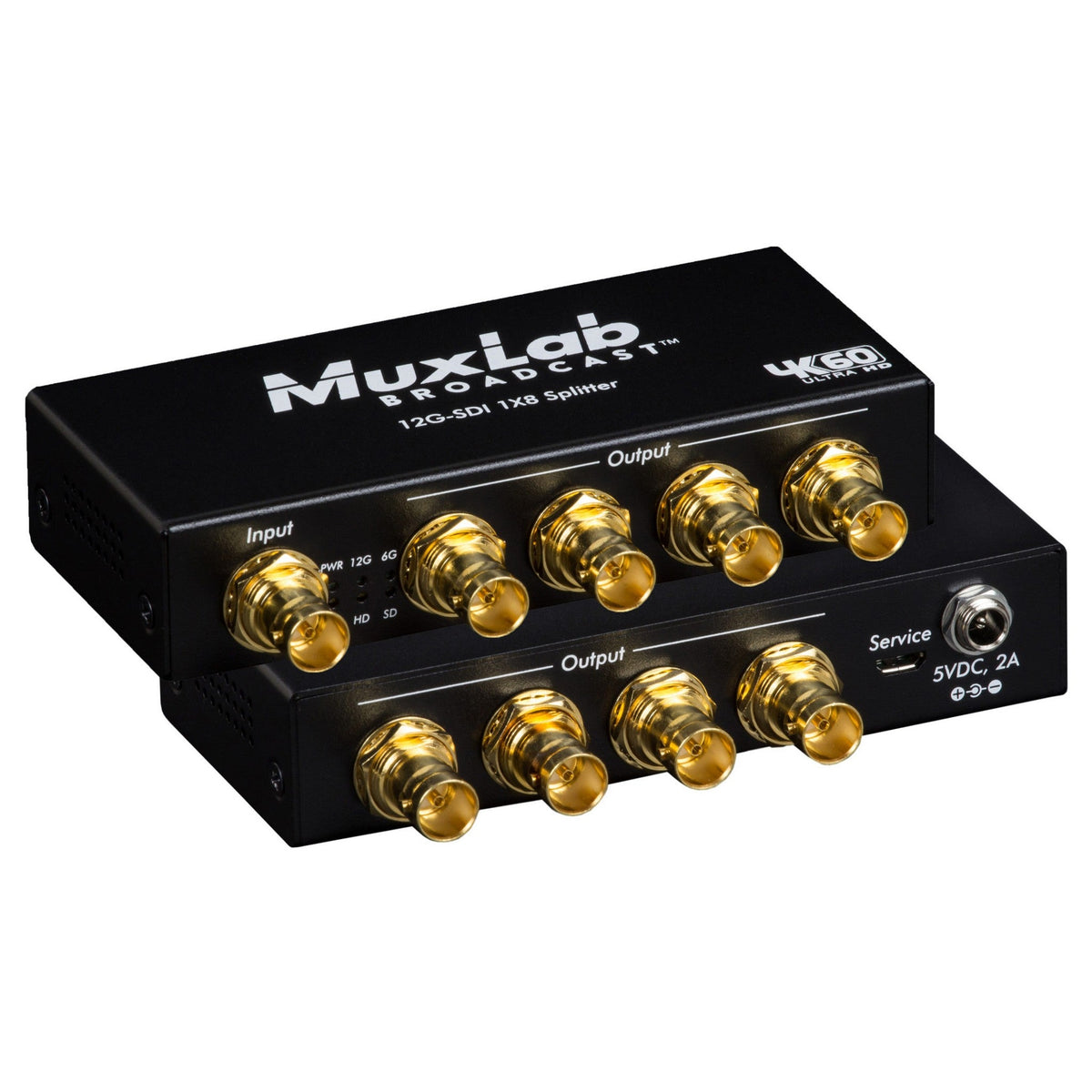

MuxLab 500728 4K60 12G-SDI 1 x 8 Splitter
In stock SKU: MXLAB-500728

RhythmVault

MuxLab 500728 4K60 12G-SDI 1 x 8 Splitter

$405.00

MuxLab 500728 4K60 12G-SDI 1 x 8 Splitter The 12G-SDI 1x8 Splitter, 4K/60 (500728) from MuxLab is engineered for professionals who require dependable and high-quality video distribution. With this powerful splitter, a single SDI source can be distributed and amplified to as...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

MuxLab 500728 4K60 12G-SDI 1 x 8 Splitter

The 12G-SDI 1x8 Splitter, 4K/60 (500728) from MuxLab is engineered for professionals who require dependable and high-quality video distribution. With this powerful splitter, a single SDI source can be distributed and amplified to as many as eight displays - making it ideal for broadcast studios, live event venues, post-production suites, medical imaging setups, and large video installations where multiple screens must show the same feed simultaneously.

Supporting a wide range of SDI formats - from legacy SD-SDI and HD-SDI to 3G, 6G, and full 12G-SDI - the 500728 delivers up to UHD 4K (3840x2160) at 60 Hz with HD-quality audio. What’s more, the device features automatic signal detection, re-clocking, and regeneration. This ensures that the signal remains robust and stable even if you’re extending the distance between source and displays. The integrated LED diagnostics also give you real-time status feedback - useful during installation or live operations to quickly verify signal integrity.

Compact, rugged, and designed for professional use, the 500728 splitter is a flexible and reliable choice when you need to distribute a single SDI video source across multiple screens without sacrificing quality.

Key Features

  • Distribute one 12G/6G/3G/HD/SD-SDI source to up to eight displays.
  • Supports video resolutions from SD (480i) and HD (720p/1080i/p) up through UHD 4K at 60 Hz (12G-SDI).
  • Automatic signal detection, re-clocking, and regeneration to preserve signal integrity over long cable runs.
  • LED diagnostic indicators for power, sync, and data rate - enabling quick status checks.
  • Supports a broad range of SDI standards: 12G, 6G, 3G, HD-SDI, SD-SDI.
  • Compact and sturdy design - suitable for pro-AV installations, live events, and broadcast environments.

Technical Specifications

Weight: 1.08 lbs (0.490 kg)
Dimensions: 3.15" H x 5.51" W x 8.07" L (≈ 20.50 x 14.00 x 8.00 cm)
SDI Inputs: 1 x 12G/6G/3G/HD/SD-SDI
SDI Outputs: 8 x 12G/6G/3G/HD/SD-SDI
Video Resolution: Up to 4K (3840 x 2160) @ 60 Hz
Signal Processing: Automatic signal detection, re-clocking, and regeneration
Diagnostics: LED diagnostic indicators (power, sync, data rate)

What’s Included

  • 12G-SDI 1x8 Splitter, 4K/60 (Model 500728)
  • 2 x Mounting ears for rack or shelf installation
  • Power supply (5 VDC) - included as standard with the unit
  • Limited 2-year manufacturer warranty
