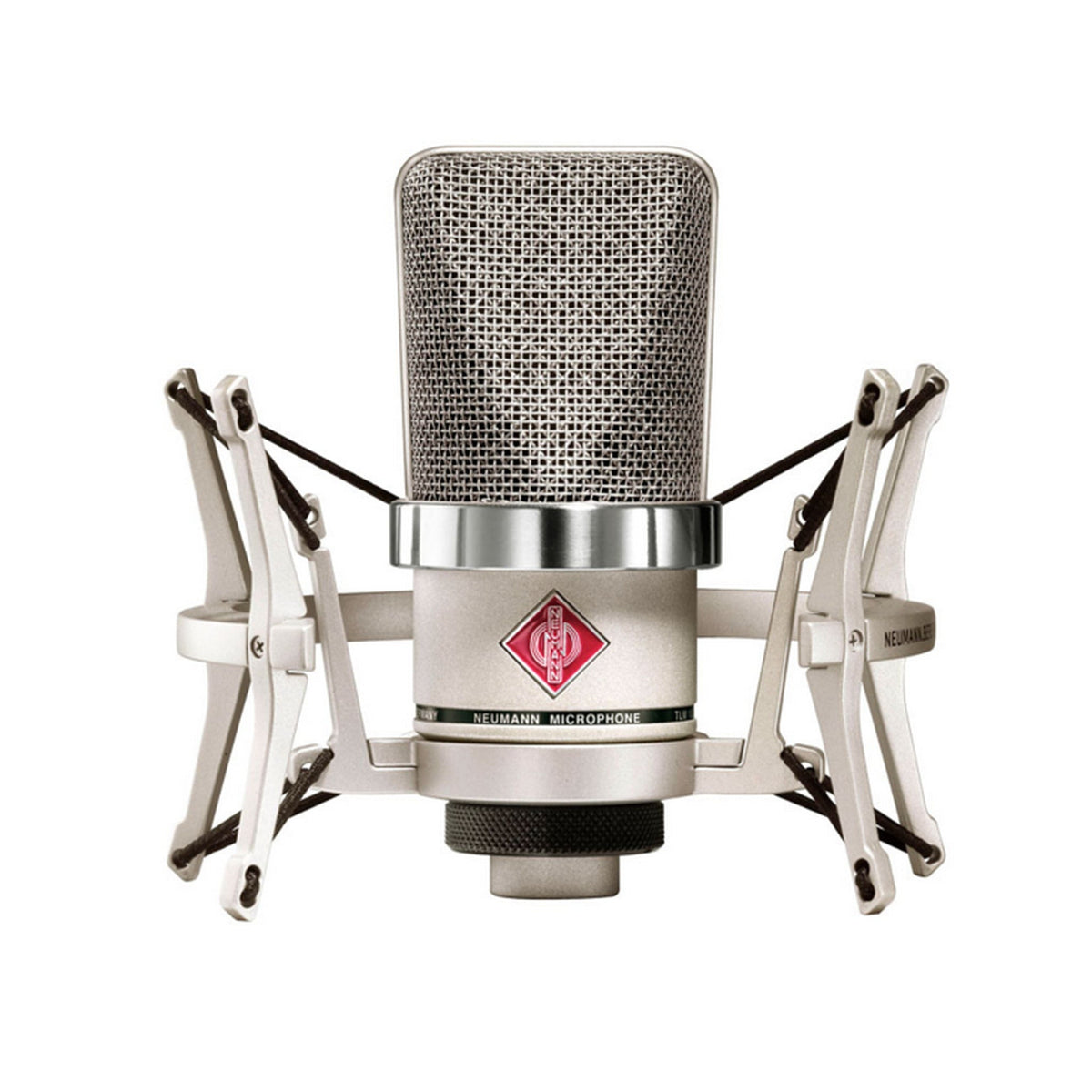

Neumann TLM 102 Studio Set Studio Microphone

Neumann TLM 102 Studio Set Studio Microphone

The Neumann TLM 102 Studio Set brings the renowned Neumann sound to small studios with precision engineering and compact form. Designed and built in Germany, it delivers silky highs, solid lows, and superb clarity with ultra-low self-noise, making it ideal for vocals, guitars, drums, and voiceover work.

Featuring transformer-less circuitry and an integrated pop shield, the TLM 102 offers powerful bass response, fast transients, and high SPL handling without distortion. Its forgiving cardioid pattern and wide dynamic range make it user-friendly in diverse recording scenarios.

Key Features

• Microphone Type: Large-diaphragm condenser with cardioid polar pattern
• Capsule & Circuitry: Transformer-less output stage for clear, direct sound
• Acoustic Design: Uniform cardioid pattern, integrated pop shield
• Dynamic Performance: Handles up to 144 dB SPL without distortion
• Noise Performance: Very low self-noise – 12 dB-A (equivalent), 21 dB CCIR
• Frequency Response: 20 Hz to 20 kHz with slight 10 kHz treble lift for silky highs
• Dynamic Range: Approximately 132 dB
• Connectivity: XLR-3F output, requires 48 V phantom power
• Build Quality: Compact nickel-finish metal body, high-quality craftsmanship
• Included Accessory: EA 4 Elastic Suspension Shock-mount (nickel)

Technical Specifications

• Frequency Range: 20 Hz – 20 kHz
• Sensitivity (at 1 kHz into 1 kΩ): 11 mV/Pa
• Rated Impedance: 50 Ω; load impedance: 1 kΩ
• Equivalent Noise Level (A-weighted): 12 dB-A; CCIR: 21 dB
• Maximum SPL (0.5% THD): 144 dB
• Signal-to-Noise Ratio (A-weighted, re. 94 dB SPL): 82 dB; CCIR: 73 dB
• Maximum Output Voltage: 13 dBu
• Power Supply: 48 V ± 4 V phantom, current consumption 3.5 mA
• Connector: XLR-3F
• Weight: approx. 210 g (0.46 lb)
• Dimensions: Ø 52 mm × 116 mm (2.05″ × 4.57″)
