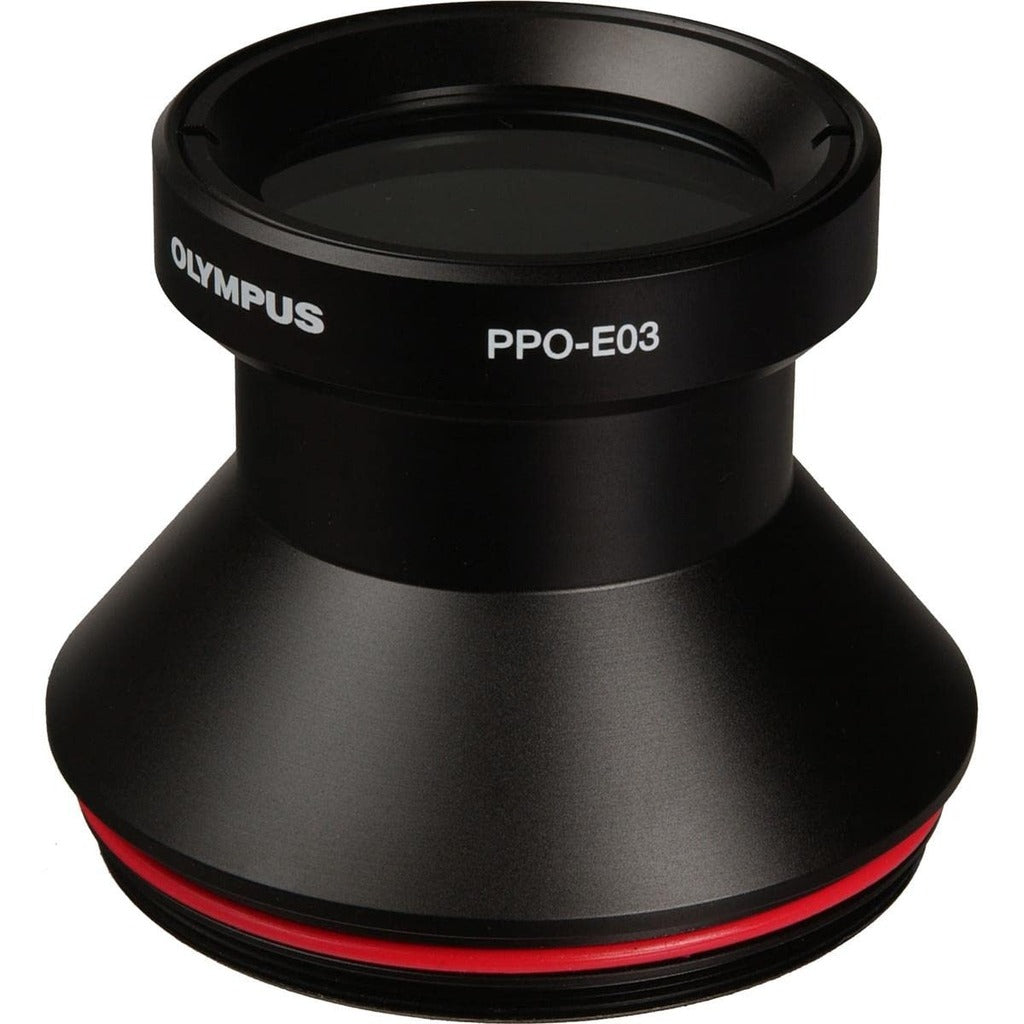

OM System PPO-E03 Underwater Lens Port for Zuiko Digital ED 50mm Macro
Close-up and fish-portrait work underwater calls for a port matched to the lens, and the PPO-E03 is the dedicated port for the Four Thirds Zuiko Digital ED 50mm f/2.0 Macro. Introduced alongside the PT-E series housings, it lets that medium-telephoto macro lens...
PRODUCT DETAILS
Everything you need to know.
Close-up and fish-portrait work underwater calls for a port matched to the lens, and the PPO-E03 is the dedicated port for the Four Thirds Zuiko Digital ED 50mm f/2.0 Macro. Introduced alongside the PT-E series housings, it lets that medium-telephoto macro lens (100mm equivalent) focus through a flat, chemically strengthened glass window down to 60 m (197 ft).
Construction is aluminum with silicone O-ring seals, a durable combination for a port that will see repeated dives, rinses and rough handling on boat decks. The port threads onto PT-E series cases, and the same port can also be used on the PT-EP11 housing for the E-M1 when combined with the PAD-EP08 port adapter, the PER-E01 extension ring and the MMF-3 Four Thirds adapter, giving owners of the 50mm Macro a path onto later Micro Four Thirds bodies.
Features
- Dedicated port for the Zuiko Digital ED 50mm f/2.0 Macro
- Rated to 60 m (197 ft)
- Aluminum body with chemically strengthened glass port window
- Designed for Olympus PT-E series underwater housings
- Usable on PT-EP11 with PAD-EP08 adapter, PER-E01 ring and MMF-3 lens adapter
Technical Specifications
- Compatible lens: Zuiko Digital ED 50mm f/2.0 Macro (Four Thirds)
- Compatible housings: PT-E series; PT-EP11 via PAD-EP08 + PER-E01 (lens on MMF-3)
- Depth rating: 60 m (197 ft)
- Body material: Aluminum
- Port window: Chemically strengthened glass
- Dimensions: Approx. 108 mm max. diameter x 87 mm length (4.3 x 3.4 in)
- Weight: Approx. 420 g (0.93 lb)
What's Included
- PPO-E03 lens port
- MF gear
- Front cap
- Rear cap
- O-ring grease
- O-ring removal tool
