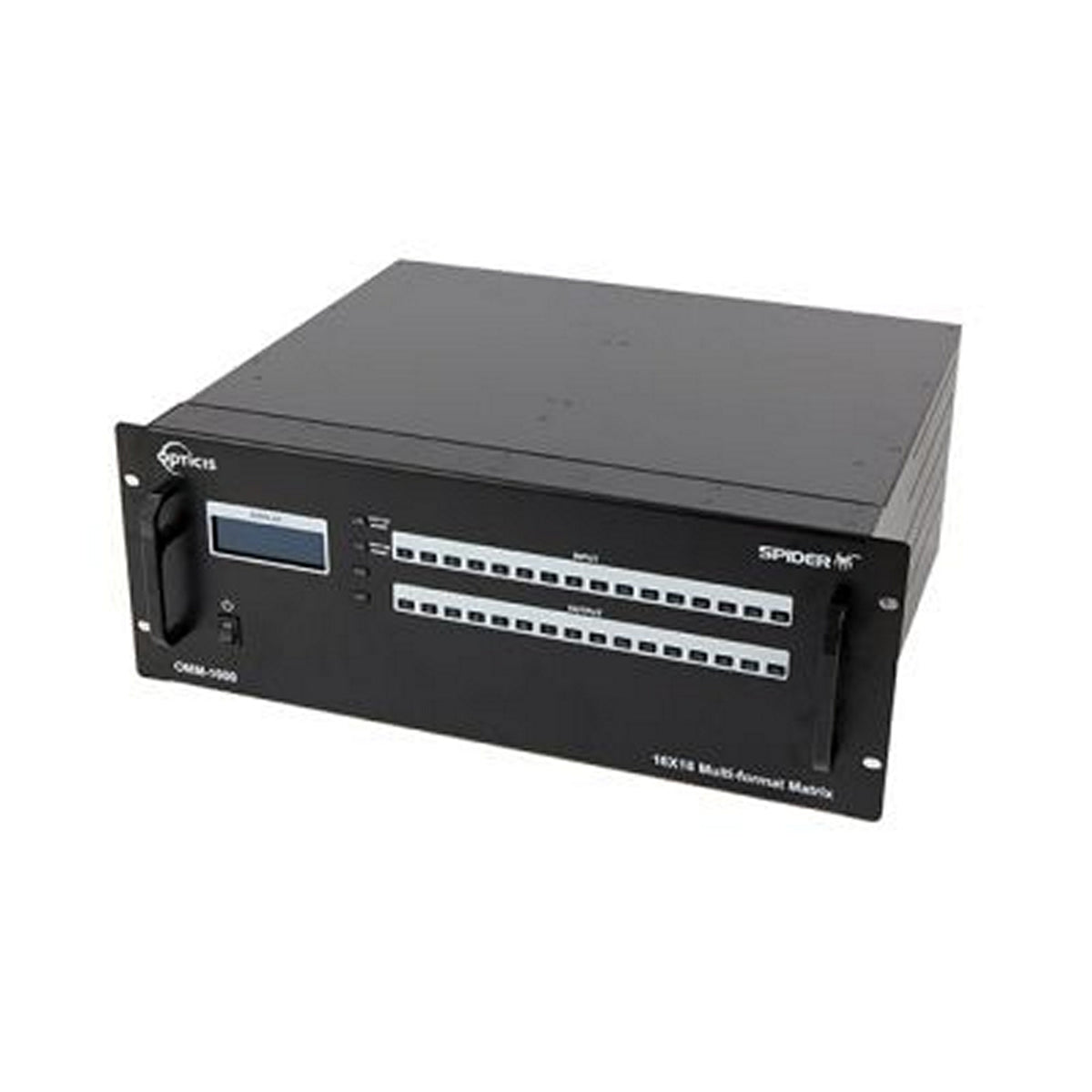

Opticis OMM-1000 16×16 DVI/HDMI/SDI/DisplayPort Optical Modular Matrix Switcher

Route any of 16 high-definition video sources to 16 displays with a fully modular card-based chassis. Simply insert four-port input/output cards—choose from DVI, HDMI, SDI (SD/HD/3G), or DisplayPort—or two-port dual-link DVI cards to tailor your 4×4, 8×8, 12×12, or full 16×16 configuration. Ideal for broadcast, control rooms, digital signage, and live events, the OMM-1000 delivers zero-compromise signal integrity over both copper and optical interfaces.

Control is effortless via front-panel keys, RS-232, TCP/IP telnet, or an intuitive web GUI. Patent-pending EDID management on DVI/HDMI cards lets you preset display profiles for seamless hot-swap operations, while built-in video generators and real-time diagnostics simplify installation and troubleshooting—no external test gear required.

Key Features

  • Modular Scalability: Supports up to 16 inputs and 16 outputs by mixing four-port cards or dual-link DVI cards
  • Multi-Format I/O: DVI (single & dual-link), HDMI (with HDCP/DDC), SD-SDI/HD-SDI/3G-SDI, DisplayPort, and optical DVI modules
  • Flexible Control: Front-panel keypad, RS-232 serial, TCP/IP telnet, and embedded web interface
  • EDID & HDCP Management: Program individual EDID profiles; full HDCP 1.4/2.x compliance on HDMI/DVI cards
  • Built-In Test Patterns: Onboard video generator for signal verification without external sources
  • Hot-Swappable Cards: Add, remove, or replace I/O modules without powering down
  • Real-Time Diagnostics: Status LEDs and software monitoring for link integrity and module health

Technical Specifications

  • Max. Configuration: 16×16 (inputs × outputs)
  • Card Slots: 16 total; four-port cards for DVI/HDMI/SDI/DP, two-port cards for dual-link DVI
  • Resolution Support: Up to 3840×2400 on dual-link DVI; 4096×2160 on HDMI/DP cards
  • Control Interfaces: RS-232 (DB-9), TCP/IP (RJ-45), front-panel keypad, web GUI
  • EDID Management: Individual EDID storage per HDMI/DVI input
  • Video Generator: Color bars and test patterns on any output
  • Link Diagnostics: Real-time status reporting via LEDs and web interface
  • Power Requirements: 100–240 VAC, 50/60 Hz (specify PSU options)
  • Operating Temperature: 0 °C to 50 °C
  • Certifications: CE, FCC (pending exact model certifications)

What’s Included

  • 1× OMM-1000 mainframe chassis (blank)
  • 1× AC power cord
  • 1× Rack-mount ear set
  • 1× User manual
  • (I/O cards sold separately to configure input/output counts)
