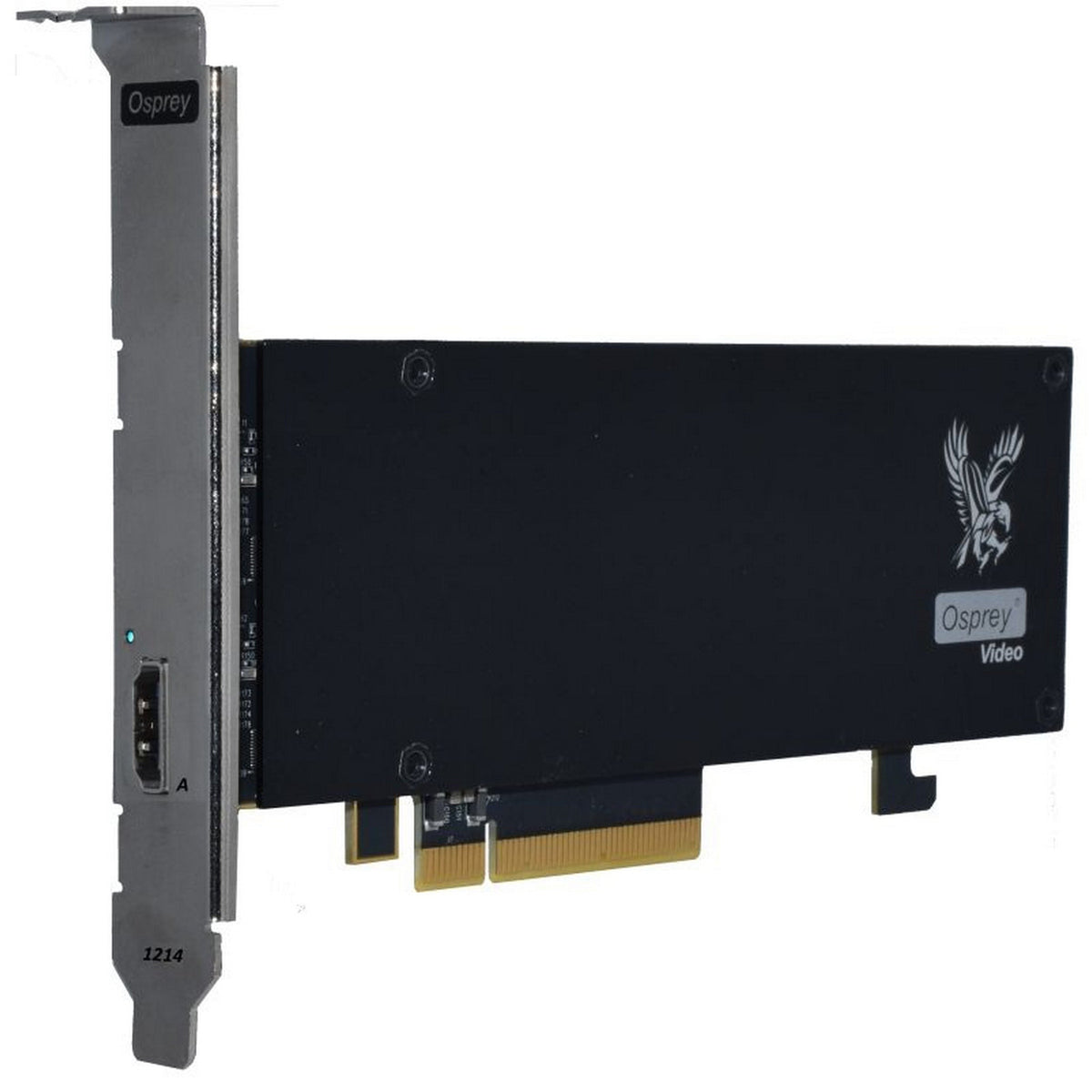

Osprey Raptor 1214 HDMI 2.0 Capture Card

The Osprey Raptor 1214 is a single channel HDMI 2.0 capture card supporting resolutions up to 4K60. It provides 8 channels of embedded audio and is designed for professional acquisition workflows that require precise color reproduction and stable throughput. With HDMI full size connectivity and a PCIe 2.0 x8 interface, the card delivers reliable high bandwidth performance.

The Raptor 1214 supports a wide range of SD, HD, UHD, and PC video formats with automatic format detection. It features a 48 kHz 24 bit audio sampling standard and includes both full height and half height brackets for installation flexibility. Power consumption is approximately 12 W and the unit meets CE, FCC, RoHS, and REACH requirements.

Engineered for demanding environments, the card operates within a broad temperature, humidity, and altitude range. These characteristics make it suitable for broadcast, production, and industrial video applications that require consistent high quality capture.

Key Features

• Single channel HDMI 2.0 input: Supports resolutions up to 4K60.
• Embedded audio support: 8 channels stereo per connection.
• Automatic format detection: Video format auto detect capability.
• Professional video compatibility: Wide format support including SD, HD, UHD, and PC standards.
• PCIe interface: PCIe 2.0 x8 for high bandwidth capture.

Technical Specifications

• Video Formats: 480p 576p; 720p23.98 24 25 29.97 30 50 59.94 60; 1080psf23.98 24 25 29.97 30; 1080p23.98 24 25 29.97 30 50 59.94 60; 1080i50 59.94 60; UHD 23.98 24 25 29.97 30; 4K DCI 23.98 24 25 29.97 30 50 59.94 60
• PC Video Standards: 1920x1200 1600x1200 1400x1050 1200x1024 1280x960 1360x768 1280x768 1024x768 800x600 640x480
• Multiple Rate Support: Video format auto detect
• HDMI Audio Inputs: Embedded 8 channels stereo per connection
• Audio Sampling: Television standard sample rate of 48 kHz at 24 bit
• Connections: HDMI full size; PCIe 2.0 x8
• Power Consumption: ~12 W
• Warranty: 2 years
• Compliance: CE FCC RoHS REACH
• In the Box: Capture card with full height bracket; Half height bracket
• Environmental Specifications: Operating temperature 0 to 40 C; Non operating temperature -40 to 75 C; Operating humidity 5 percent to 80 percent non condensing; Operating altitude range 0 to 20000 ft; Non operating altitude range 0 to 50000 ft
